3.2 Image Formation System, cont'd.
3.2:B Recovery Unit
Intermec ColorCoder V4 – Service Manual Ed. 1
Removing the Recovery Unit
1. Detach the external cover (see Chapter 3.1. Externals).
2. Detach the BJ head (see Chapter 3.2:A. Detaching the BJ head).
3. Open the PHS unit.

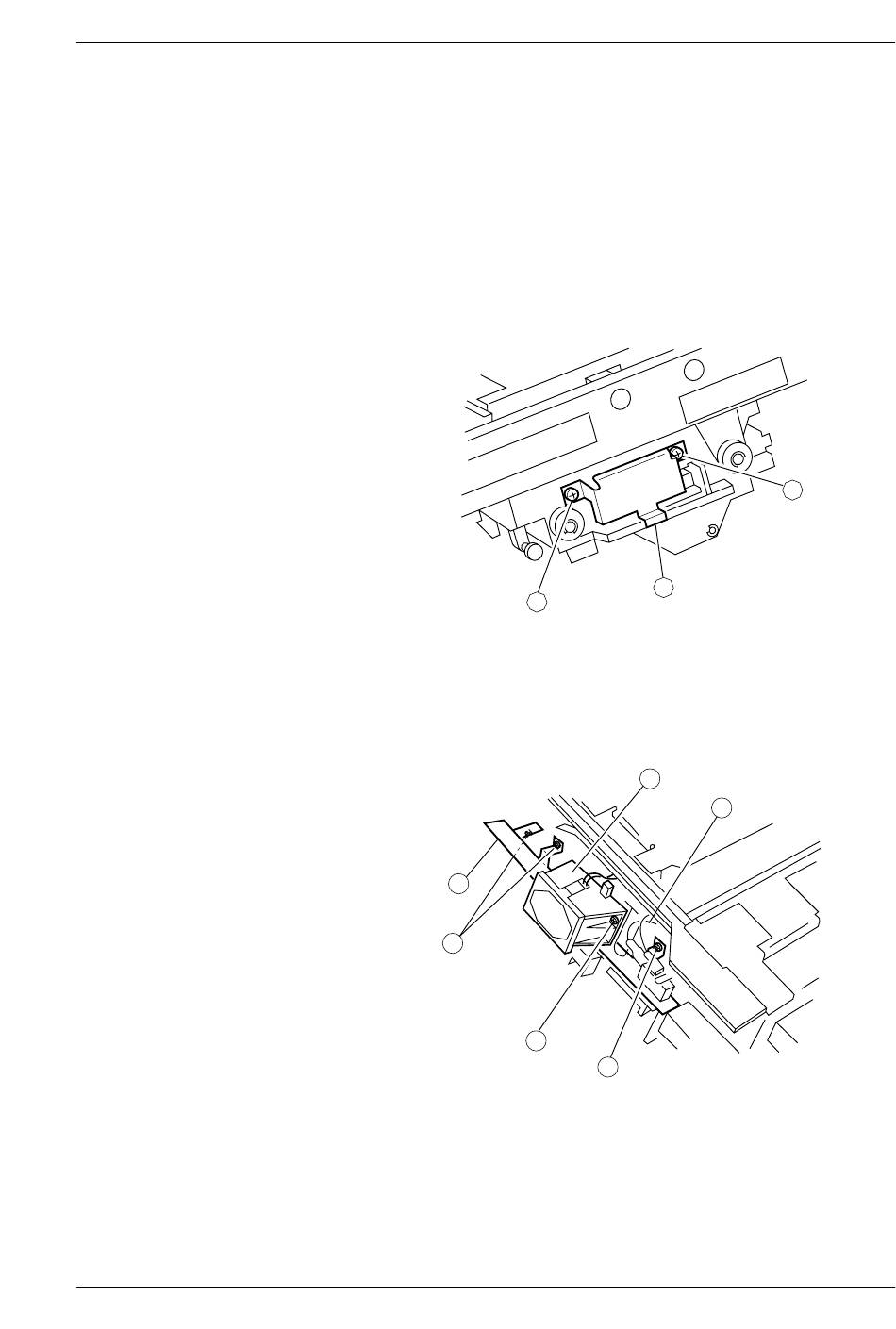

4. Remove the two mounting screws (2) from the operation panel
support plate (1), and detach the plate.
2
5. Remove the three screws (2) from the PHS right under cover (1),
and detach the cover. Remove the mounting screw (4) and
disconnect the connector (5) from the right fan unit (3), and
detach the fan unit.
1
2
4
Chapter 3 Mechanical System
1
Figure 3-25
3
5
2
Figure 3-26
2
93
