3.2 Image Formation System, cont'd.
3.2:D Motor Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

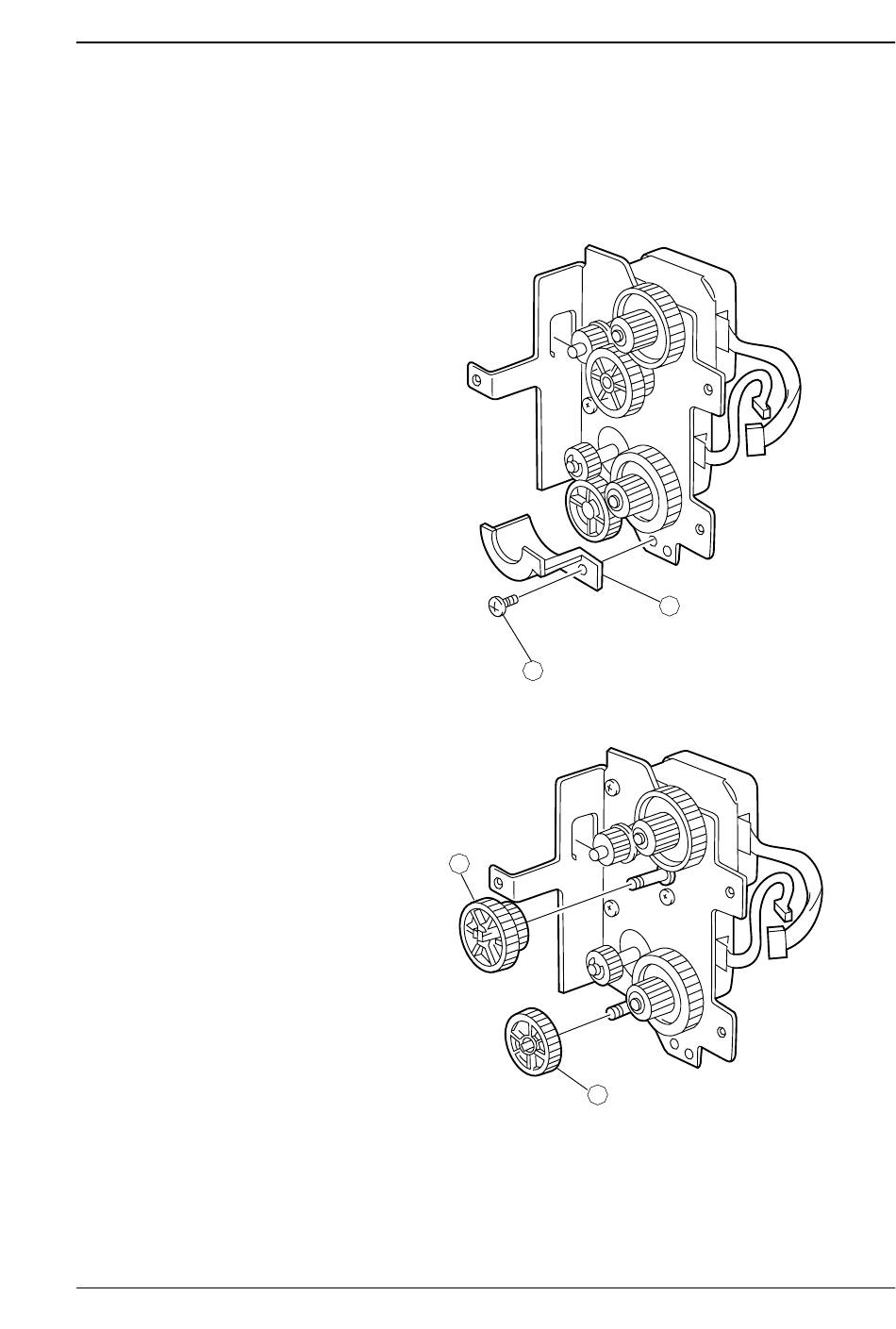

Detaching the Motor
1. Remove the one mounting screw (2) from the gear cover (1), and
detach the gear cover.
2
2. Pull out the gears (1) and (2), while expanding the claw.
2
Chapter 3 Mechanical System
1
Figure 3-49
1
Figure 3-50
