3.3 Ink Supply System, cont'd.
3.3:B Pump Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Parts and Units, cont'd.

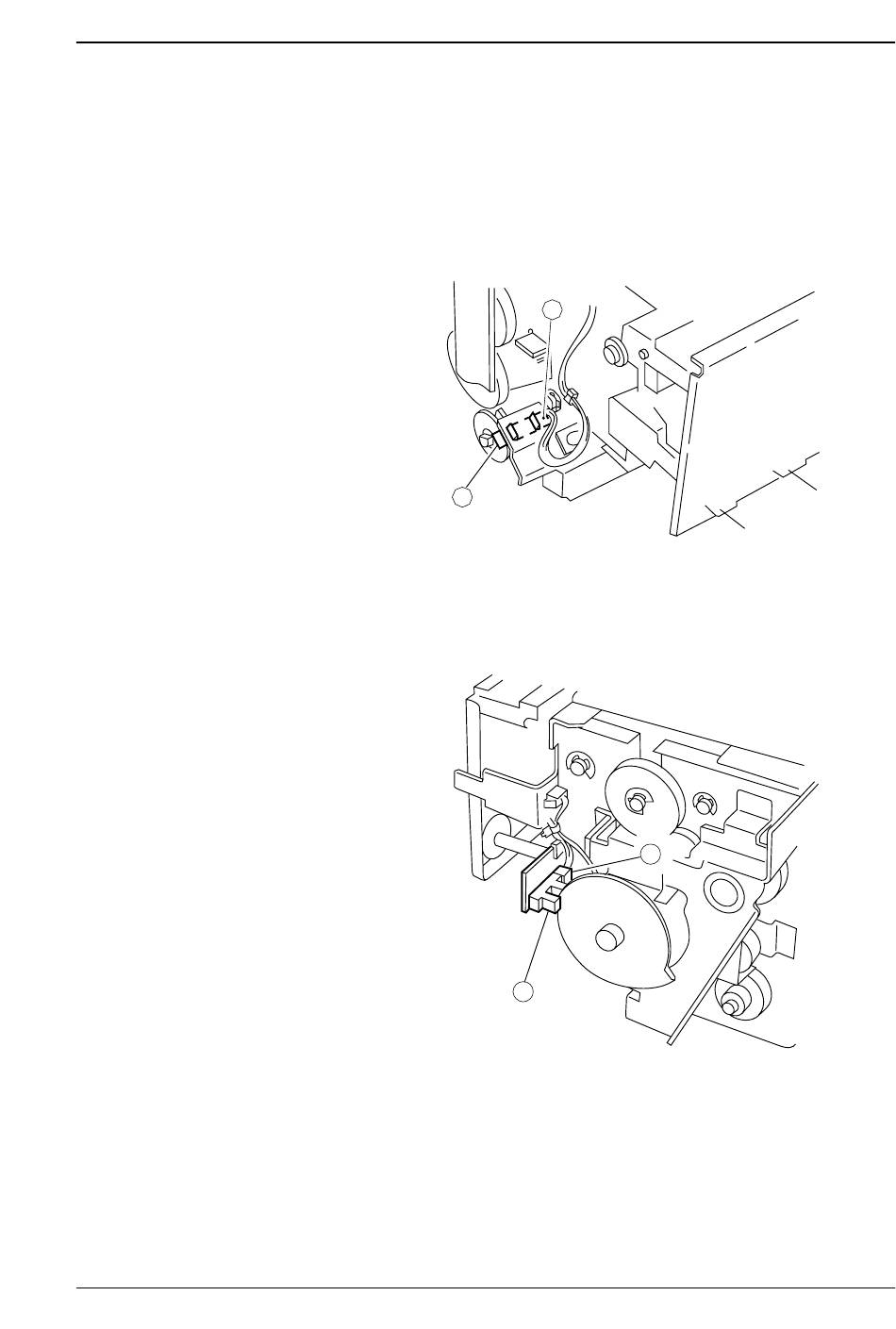

Detaching the recovering pump home position sensor
1. Disconnect the connector J15 (2), unhook the claw, and then
detach the recovery pump home position sensor (1).
1
Detaching the pressure cam home position sensor
1. Disconnect the connector J14 (2), unhook the claw, and then
detach the pressure cam home position sensor (1).
1
Chapter 3
2
Figure 3-73
2
Figure 3-74
Mechanical System
119
