6.4 Head Shading, cont'd.
6.4:B Procedure to Make HS Data,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Partial rewrite of specific BJ HS, cont'd.
B. "Read in from scanner", cont'd.

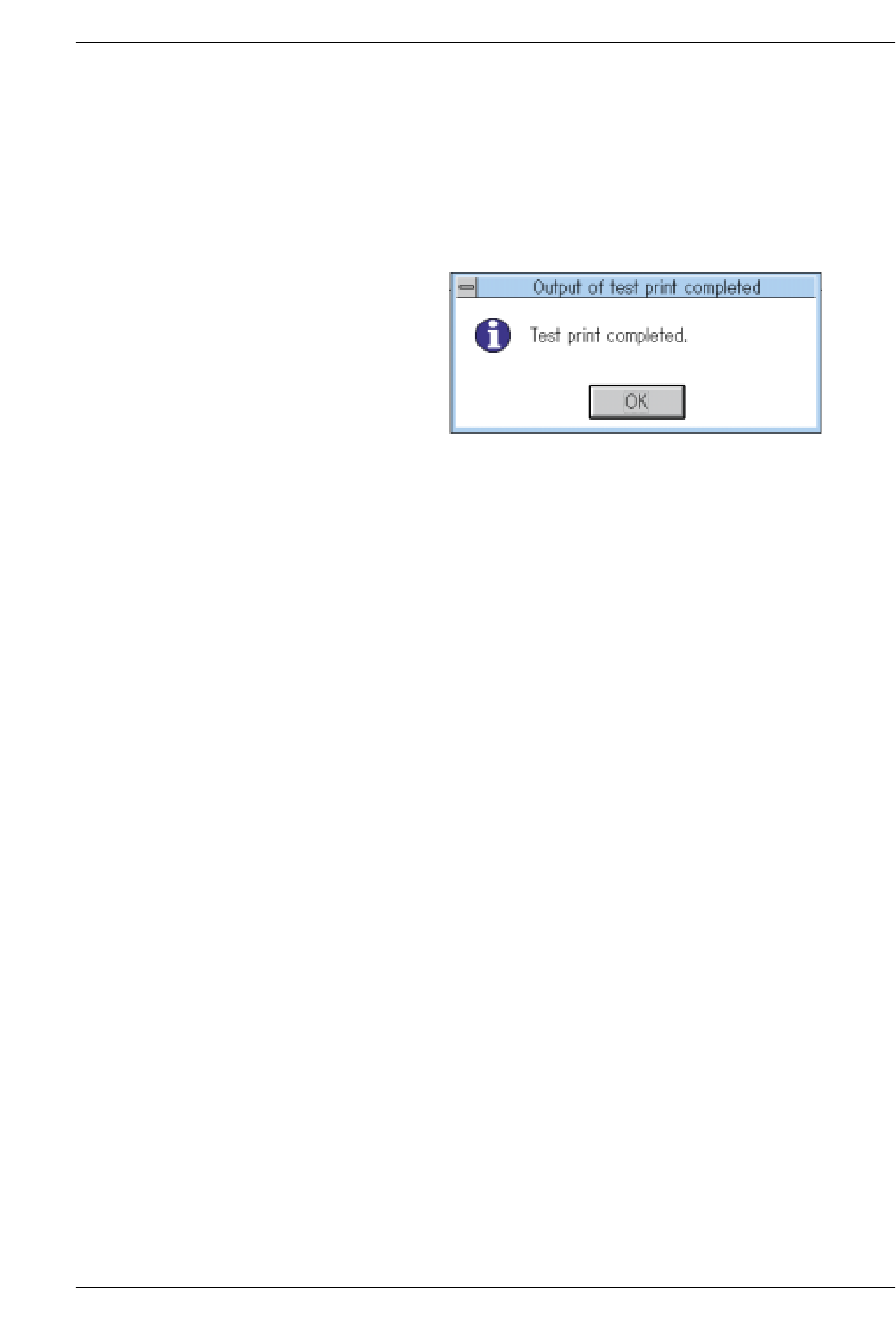

4. Confirmation message of "Test print completed." appears on the
display, finish "Test print" by clicking "OK".
5. Click "Confirmation of HS file completed" in HS utility menu.
6. Copy the new HS data file to the customer's host computer,
(Replacement with the old data.) and finish the setting-up work.
Execute test printing and confirm that it is printed properly.
Chapter 6 Troubleshooting
Figure 6-37
