3.2 Image Formation System, cont'd.
3.2:D Motor Unit
Intermec ColorCoder V4 – Service Manual Ed. 1

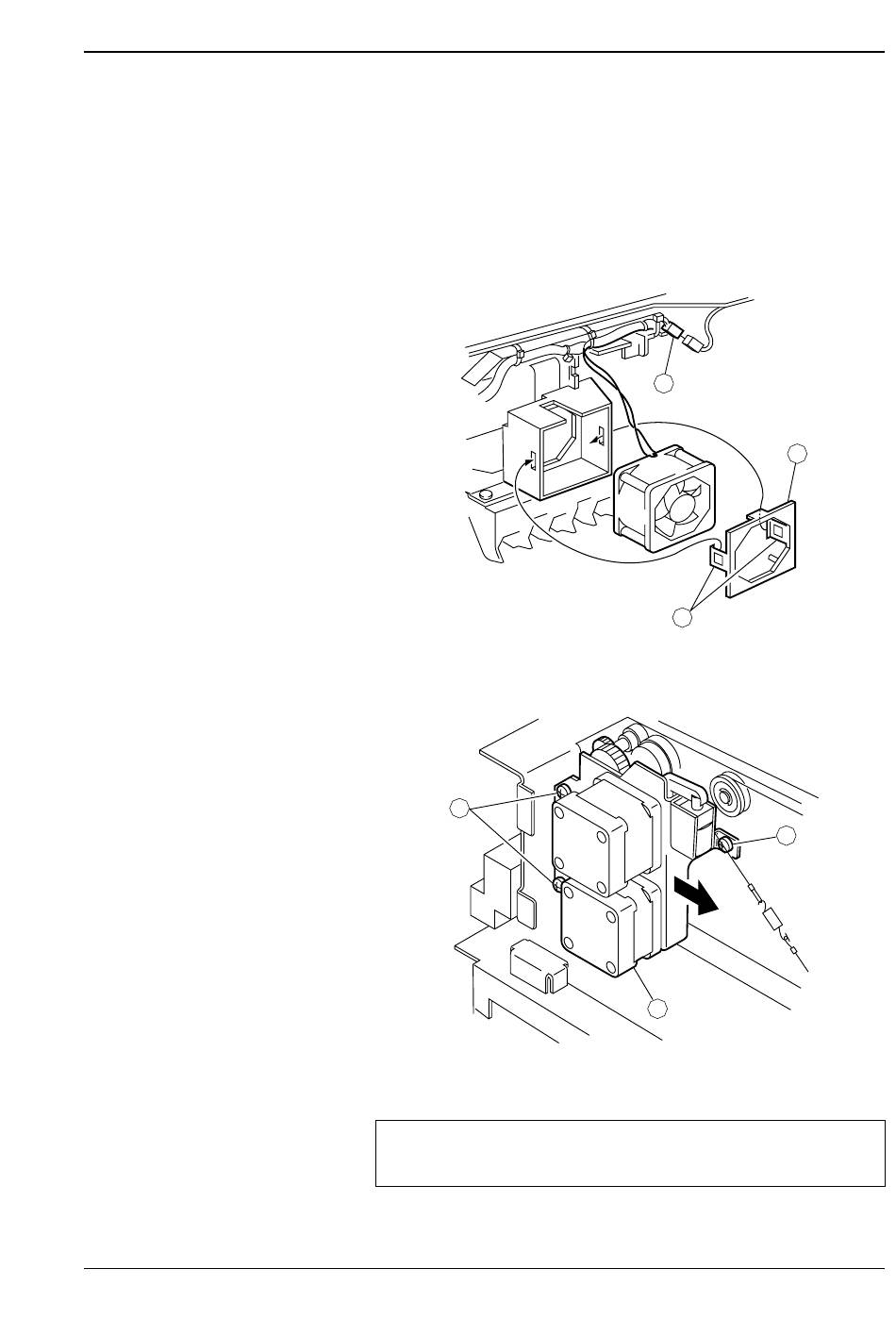

Detaching the Motor Unit
1. Detach the external cover (see Chapter 3.1 Externals).
2. Detach the fan unit (see 3.2:C. Detaching the Fun Unit).
3. Disconnect the connectors (J18 and J19) (1).
4. Remove the three mounting screws (2) from the motor unit (1),
and detach the motor unit.
2
Caution:
Install the motor unit properly so that the head holder, the recovery unit and
gear back lash of two motors work precisely.
Chapter 3 Mechanical System
1
3
Figure 3-47
1
Figure 3-48
2
2
104
