4.2 Unpacking and Installation, cont'd.
4.2:B Installation (roll type), cont'd.
No. Procedure
14 Setting the roll paper:
1. Turn the power switch ON and start operation in the normal
mode. After the automatic cleaning process is started and com-
pleted, "READY" is indicated.
2. While "READY" is indicated, press the "ON LINE" key so that
"OFF LINE" is indicated.

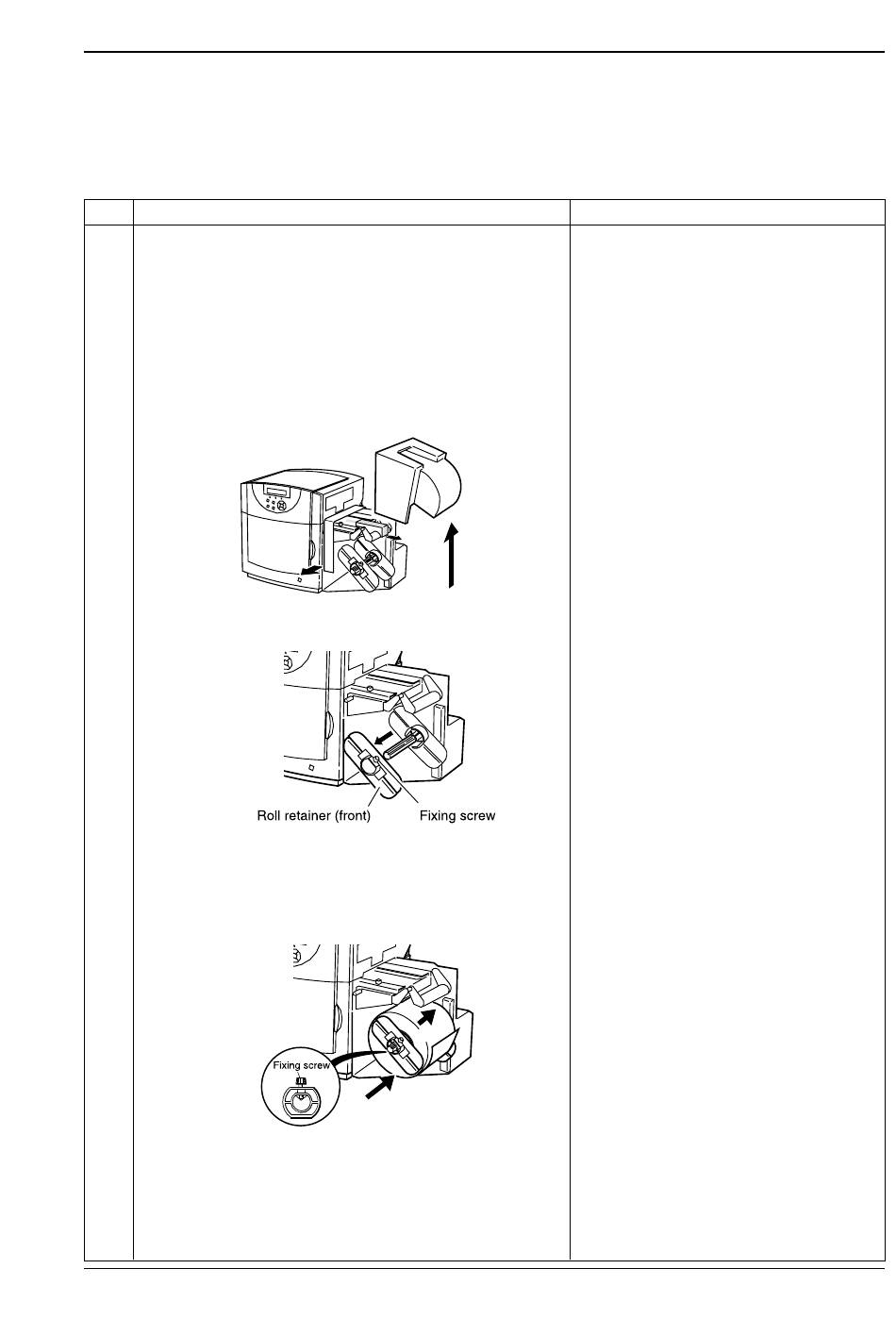

3. Remove the roll cover, take out the prevent rub sheet and sensor
lever retainer.
4. Untighten the fixing screw of the roll retainer (front) and detach
the roll retainer.
5. Set a roll paper to the roll drive shaft and fit the roll paper core into
the roll retainer (inner).
6. Set the roll retainer (front) to the roll drive shaft and tighten the
fixing screw pushing it lightly against the roll paper.
