2.1 Basic Operation, cont'd.
2.1:I Basic Sequence, cont'd.
POWER ON START
Sequence INIT HDCL MVPR
Feeder motor
TOF inlet sensor
TOF outlet sensor
Roll sensor
Roll motor
BJ head
Intermec ColorCoder V4 – Service Manual Ed. 1
Printing Sequence

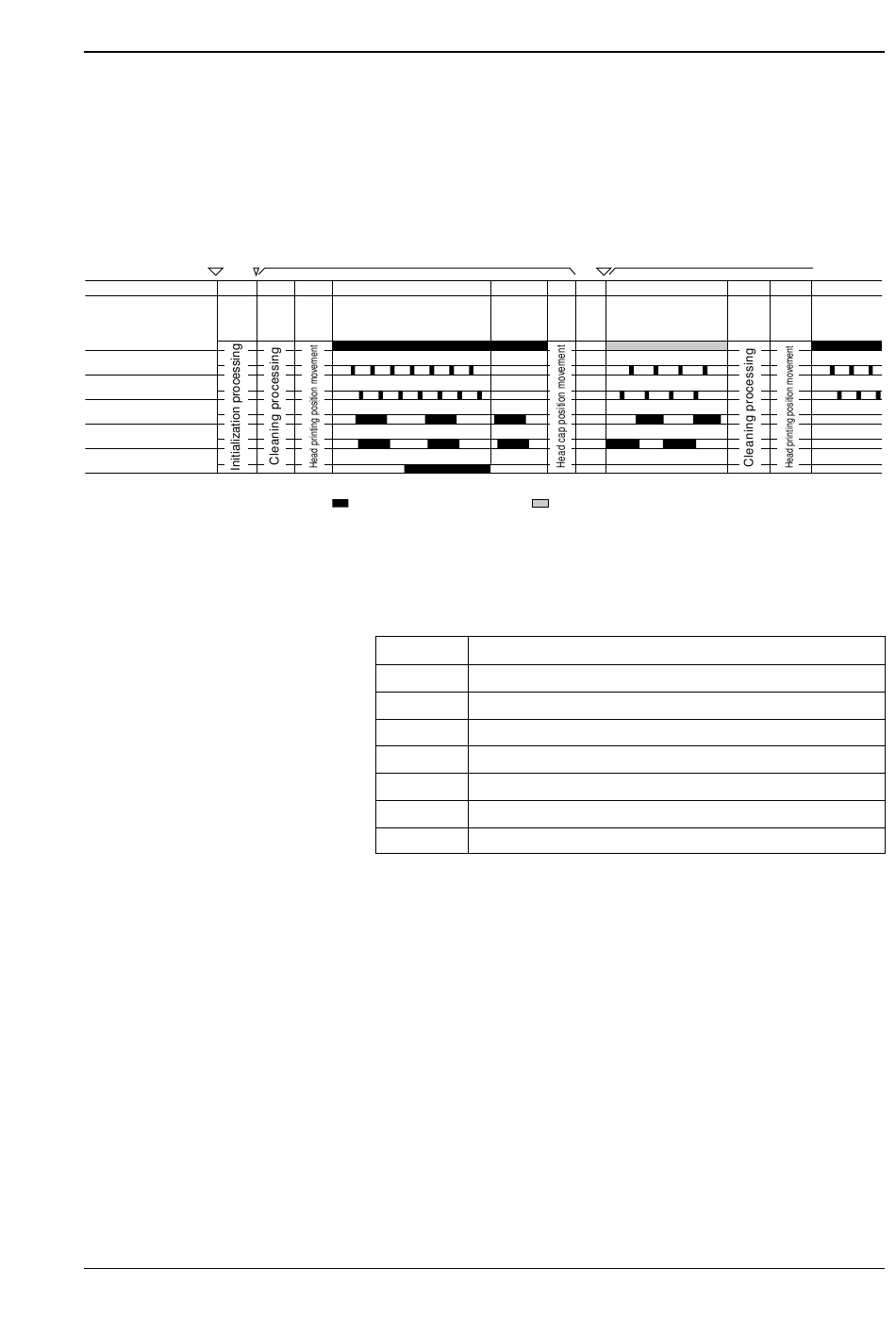

The basic operation sequence of printing is shown below.
First printing
HDPRT PD
Motor forward rotation
Figure 2-10
Sequence Operation
INIT Head/recovery system initialization operation
HDCL Head cleaning processing
MVPR Printing position movement operation
HDPRT BJ head printing operation
PD Delivery operation after printing
MVCP BJ head/recovery system cap position movement
SWBK Paper back feed operation
Chapter 2 Operation and Timing
Second printing
START
MVCP STBY SWBK
Motor backward rotation
Table 2-1
HDCL MVPR HDPRT
