3.5 PCBs, cont'd.
3.5:B Formatter PCB
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Formatter PCB
1. Disconnect the connectors J103, J105, J106, J107, and J108 (1)
of the formatter PCB.
2. Remove the screws (2) of the interface connector J102.
3. Remove the screws (4) of the PCB supports (3).
4. Pull out the formatter PCB rearward (in the direction indicated
by the arrow).
2
Chapter 3 Mechanical System
1
3

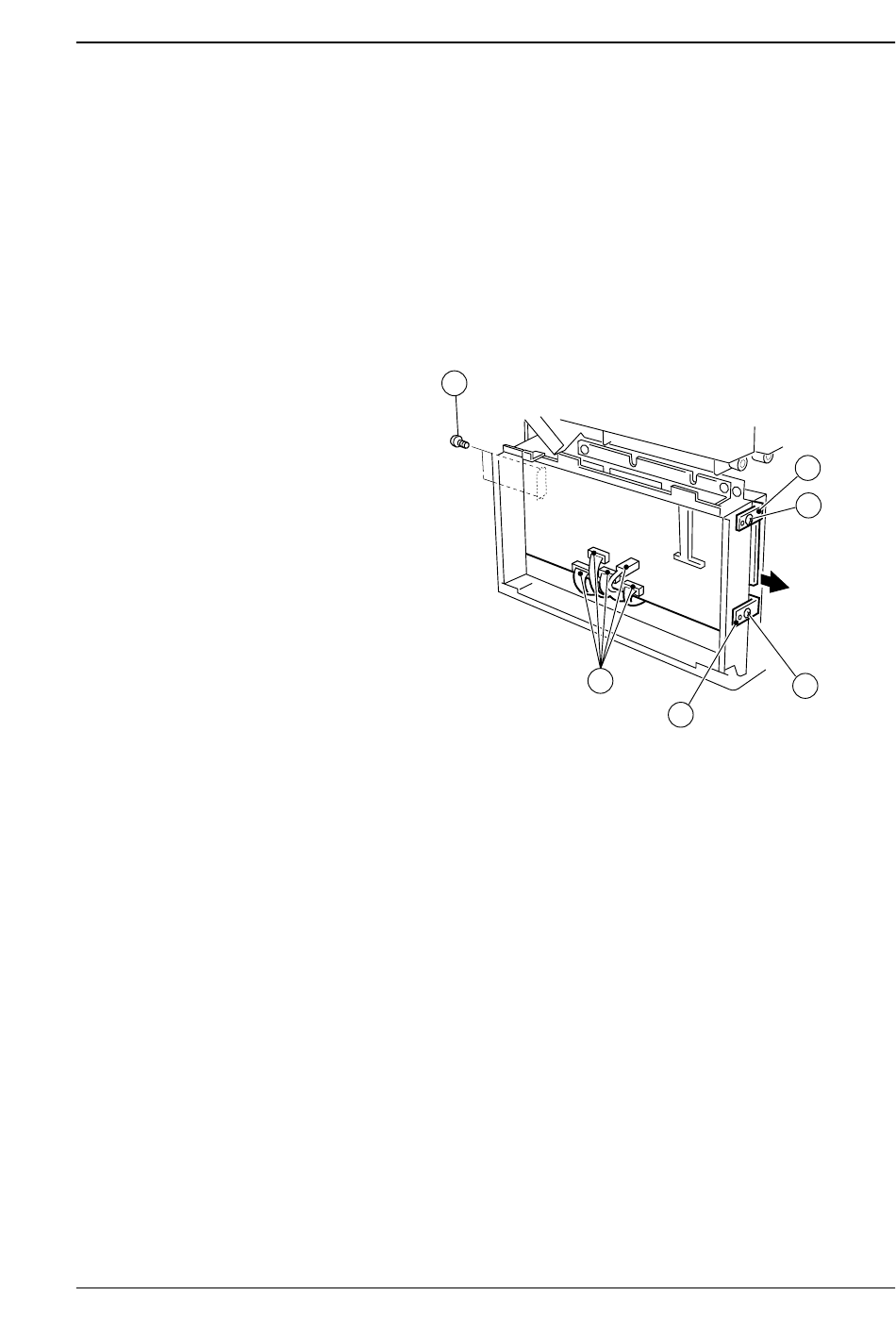

Figure 3-118
3
4
4
145
