3.3 Ink Supply System, cont'd.
3.3:B Pump Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

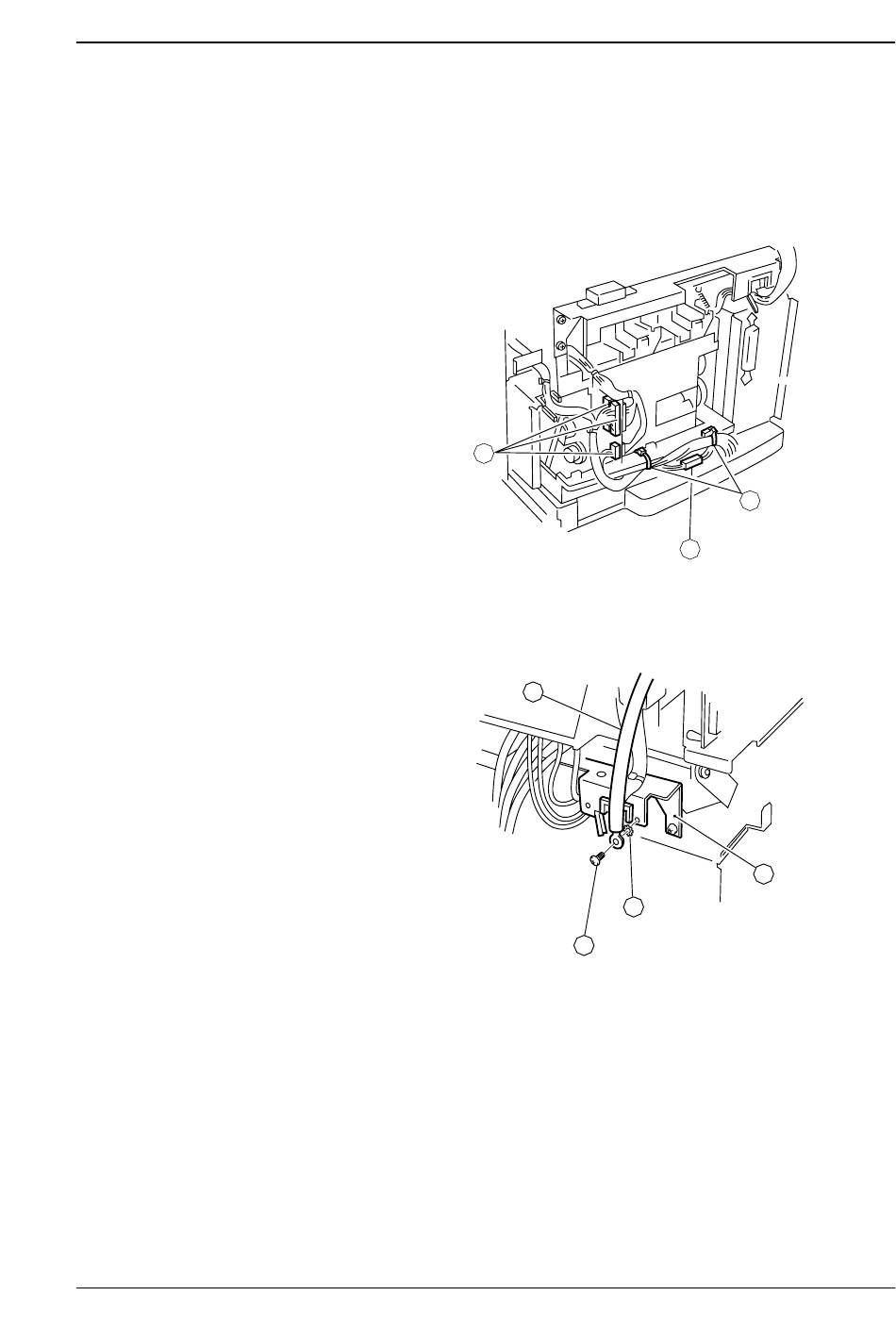

Detaching the Pump Unit, cont'd.
5. Remove the three tie-wraps (1) of the lower ink room, and
disconnect the connectors (J71, J76, J77, and J79A)(2).
2
6. Remove the mounting screw (2) and toothed washer (3) from the
grounding wire of the rear crossmember (1), and remove the
grounding wire (4).
4
Chapter 3 Mechanical System
1
2
Figure 3-58
3
2
Figure 3-59
1
