Intermec ColorCoder V4 Service Manual page 86

3.2 Image Formation System, cont'd.
3.2:A BJ Head, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the BJ Head, cont'd.

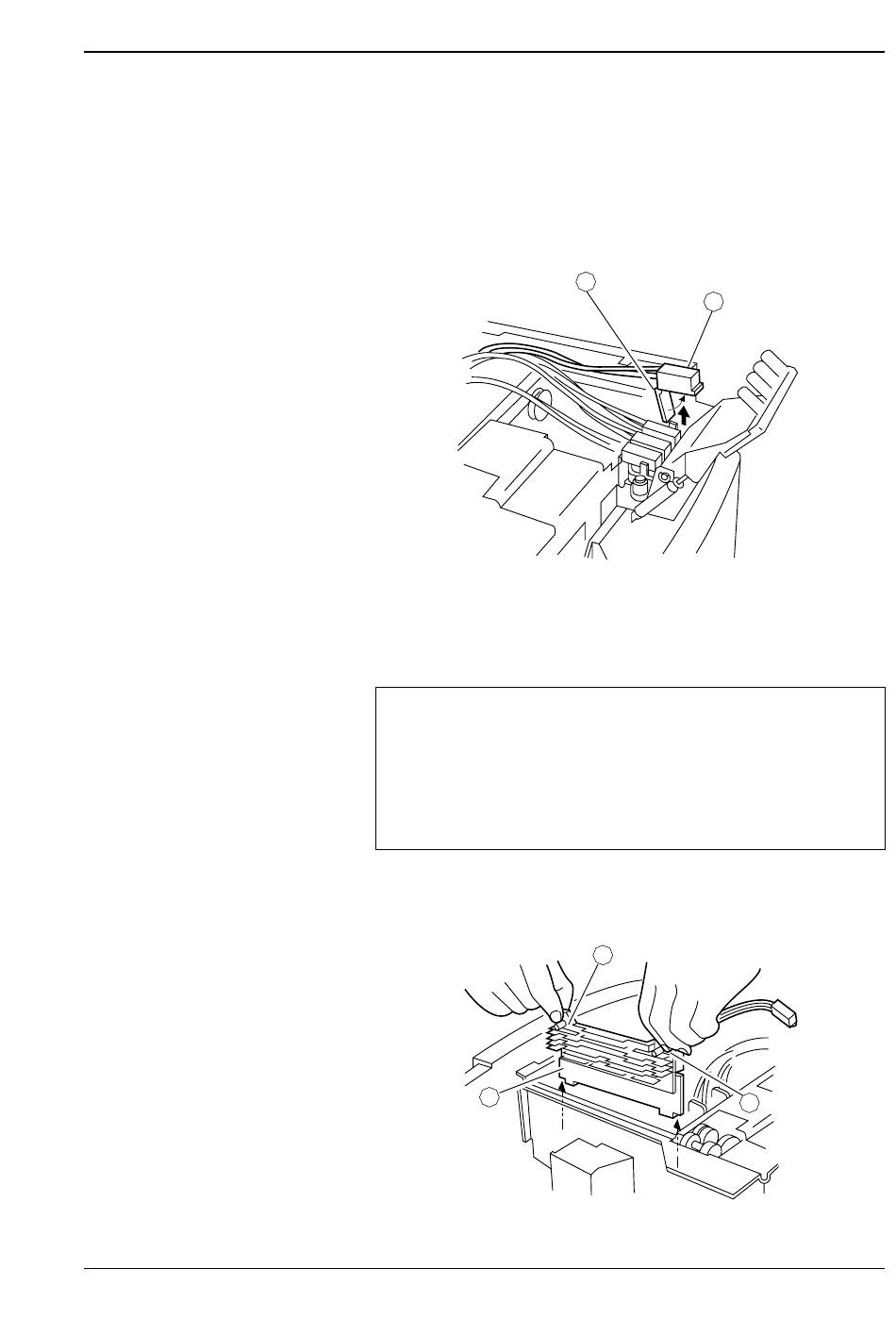

5. Disconnect all the four tube connector (1). Attach the connector
packing (1-901808-00) to each tube connector and then close the
connector cap (2).
6. Connect the transportation connector for bypass (1-901809-00)
to all the four tube station, and close the tube release lever.
Caution:
1. Remove the ink or mark cling to the tube station (joints with the tube station)
with the lint-free sponge (1-901800-00).
2. Connector packing (1-901808-00) must be cleaned with the lint-free sponge
(1-901800-00) before installed, in order to prevent for foreign substance,
dust or ink from coming in the tubes.
3. Move the BJ head with the tube connector being parallel and place on the
dust free sheet (1-901807-00).
7. Hold the heat sink (1) of the BJ head by both hands, and holding
the head holder (2), detach the BJ head from the head holder (2)
upward.
2
Chapter 3 Mechanical System
2
1
Figure 3-12
1
1
Figure 3-13
