3.3 Ink Supply System, cont'd.
3.3:B Pump Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the Parts and Units, cont'd.
Detaching the latch solenoid.
1. Disconnect the connector (2) of the latch solenoid (1).
2) Remove the mounting screw (3). Detach the steel core rand
detach the latch solenoid.
3
Detaching the breather unit
1. Remove the latch solenoid.
2. Remove the spring (1).
3. Disconnect the connector (2).
4. Remove the breather joint (3) for 4 places.
5. Remove two screws (4) and detach the breather unit.
2
Chapter 3 Mechanical System
1

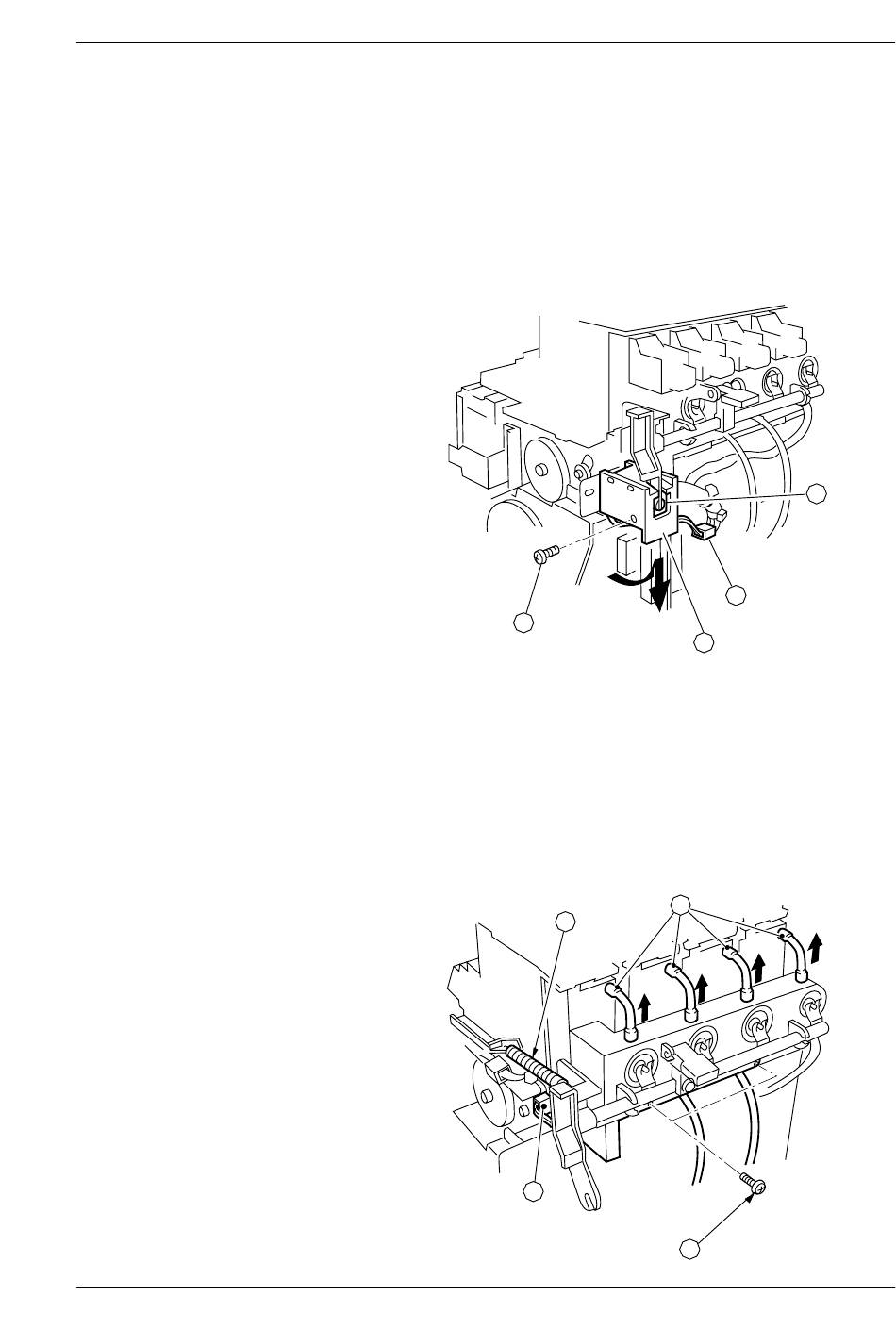

Figure 3-68
3
1
4
Figure 3-69
4
2
