3.4 Pick Up/Feeder System, cont'd.
3.4:B Feeder Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Detaching the TOF Inlet and Outlet Sensor, cont'd.

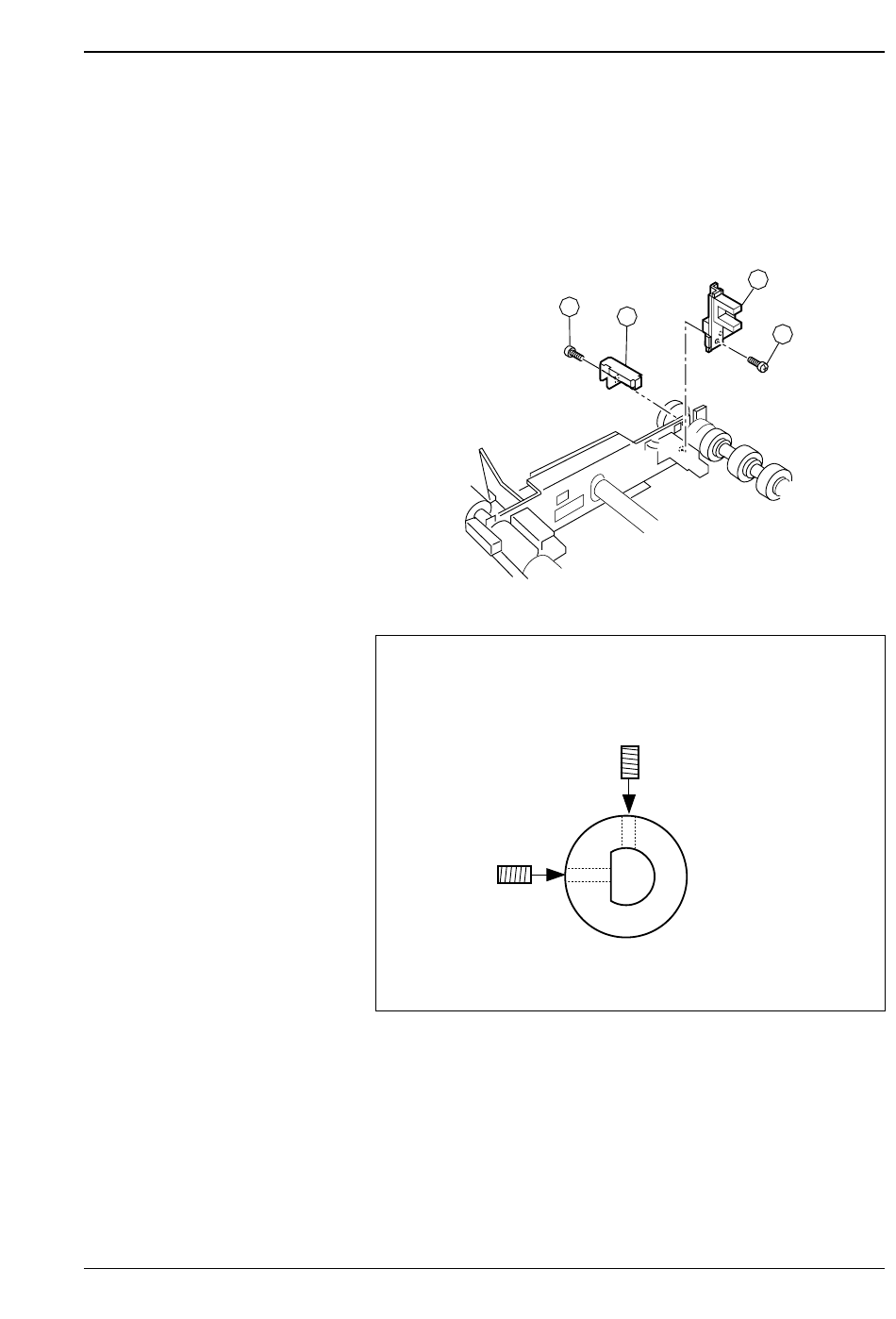

3. Remove the screw (1), detach the transmission sensor cover (2),
remove the screw (3), and then detach the TOF inlet or outlet
sensor 1 (4).
Caution in assembling the feeder unit
When attaching the joint of the feed motor and the drive roller shaft, be sure
to tighten one of screw of the joint at the D-cut side of the shaft.
Chapter 3 Mechanical System
1
2
Figure 3-108
Figure 3-109
4
3
