3.2 Image Formation System, cont'd.
3.2:A BJ Head, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Installing the BJ head
Caution:
Installing the BJ head requires the operation of service mode. The control
panel and other electrical components and connectors must all be connected
so that when the power switch is turned on, the machine is ready for normal
operation.

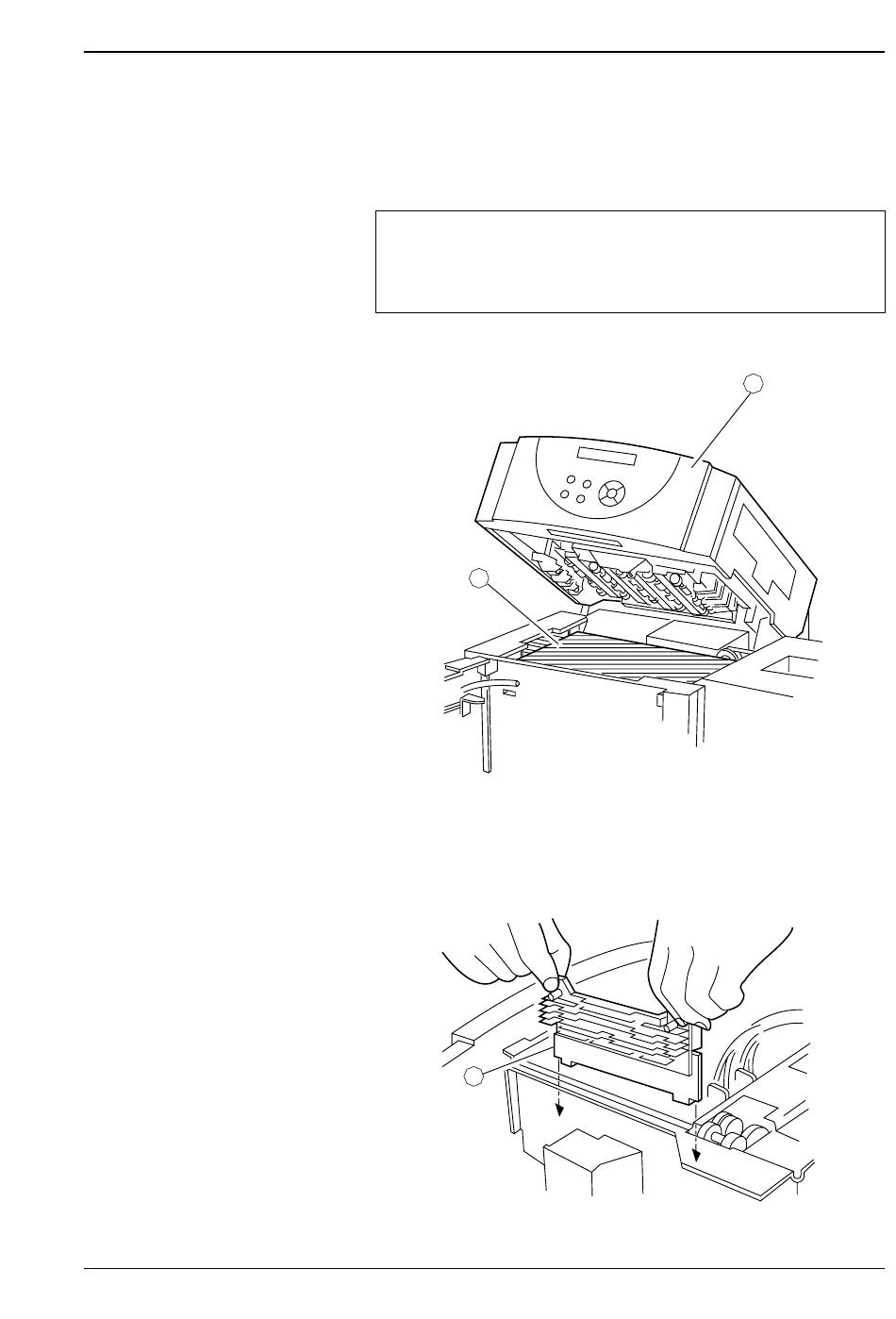

1. Open the PHS unit (1). Place some lint-free towels (2) on the feed
unit, bring its rear side to the TOF inlet and outlet sensors 1.
2
2. Close the PHS unit.
3. Peel off the protective tape on the head face. Temporarily place
the BJ head (1) on the head holder unit by putting on it along the
guides naturally. In so doing, never force the BJ head in.
1
Chapter 3 Mechanical System
1
Figure 3-19
Figure 3-20
