2.2 Image Formation System, cont'd.
2.2:C Recovery Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Outline of Operation, cont'd.

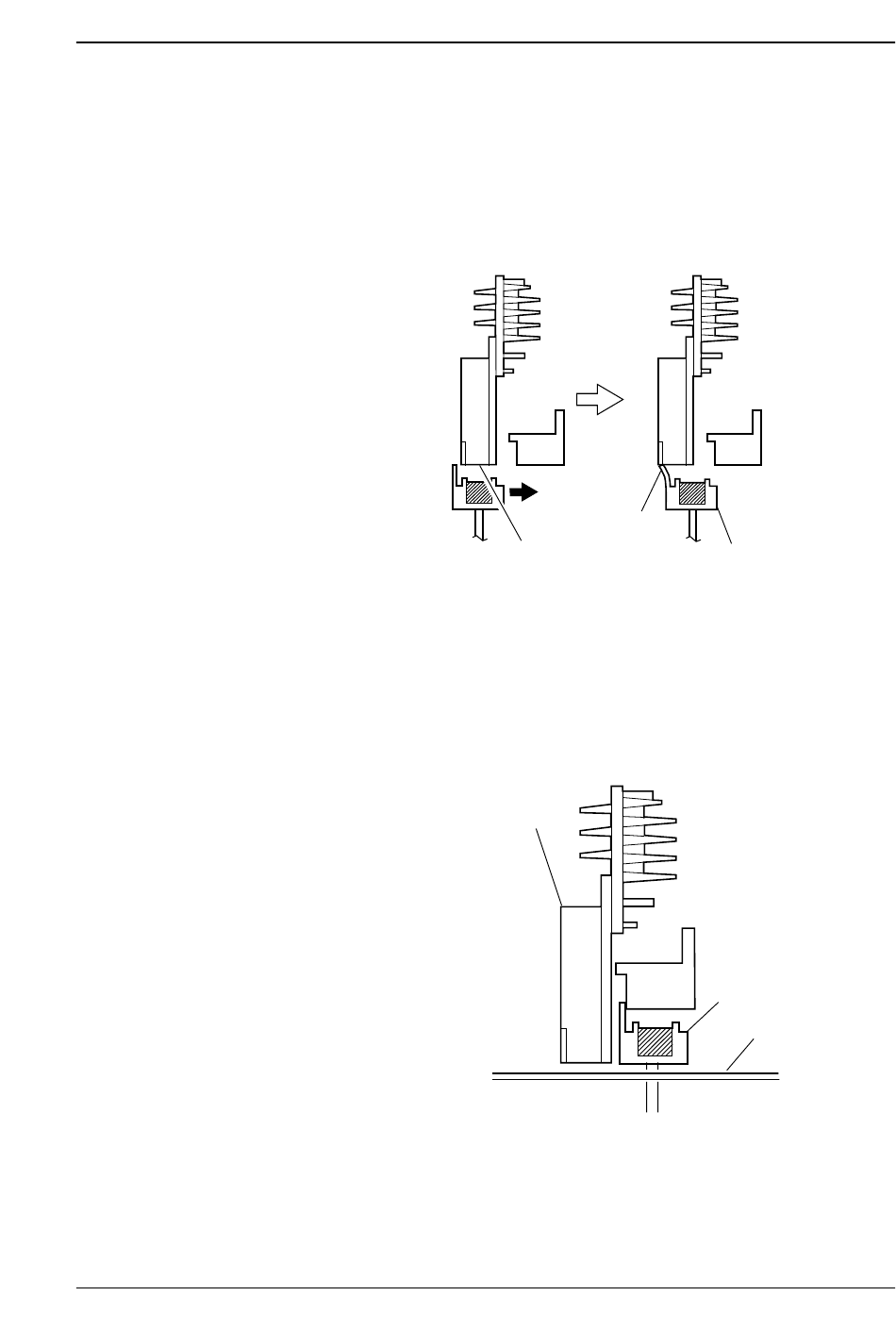

Head wiping
The head is moved to the wipe position, and the surplus ink adhered
to the head nozzle face is removed with a cleaner blade.
Head
nozzle
face
3. Printing Operation
The restoration tub evacuates to the printing position, the head
nozzle face moves downward to about 2.9 mm above the platen
(about 1.5 mm from the paper), and then printing operation starts.
BJ head
Chapter 2 Operation and Timing
Cleaner blade
Restration
tub
Figure 2-22
Restration
tub
Figure 2-23
Platen
