4.2 Unpacking and Installation, cont'd.
4.2:B Installation (roll type), cont'd.
No. Procedure

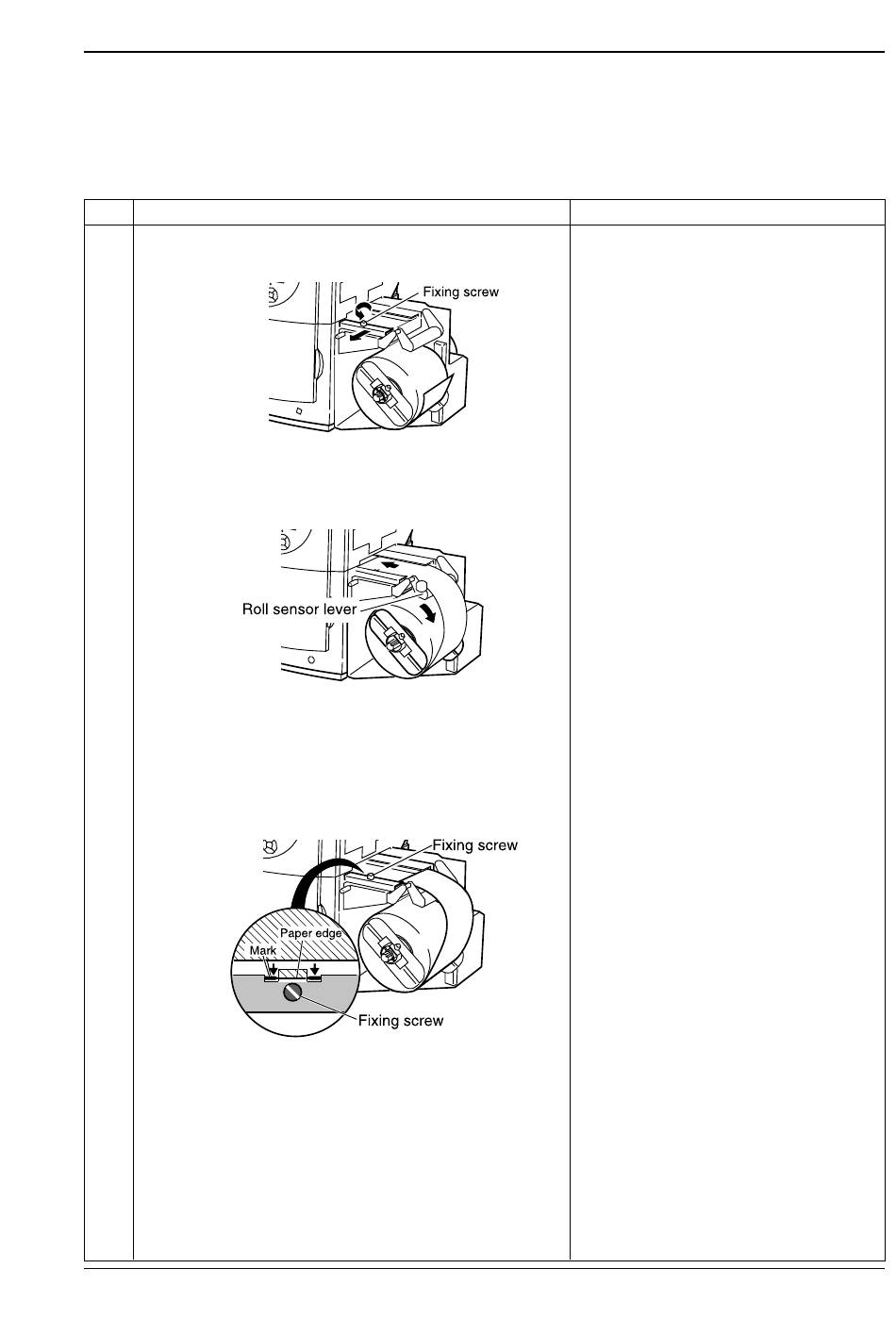

14 7. Untighten the fixing screw of the paper guide (front) and move
the paper guide frontward until coming to a stop.
8. Pull out the paper, pass it over the roll sensor lever and set
between the paper guides.
9. Move the paper guide (front) until matching the paper width and
tighten the fixing screw. At this time, you can see the paper edge
from the window on the paper guide. Position the paper guide
watching from the window so that the paper edge is matched to
the mark on the paper guide.
Intermec ColorCoder V4 – Service Manual Ed. 1
Chapter 4
Inspection/Remarks
If the roll paper is slackened, stretch the paper by
rolling.
If the paper guide is strongly pushed against the
paper, the paper is not properly fed. Be sure to
match the paper edge correctly to the mark.
