6.4 Head Shading, cont'd.
6.4:B Procedure to Make HS Data,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Output the Test Chart, cont'd.

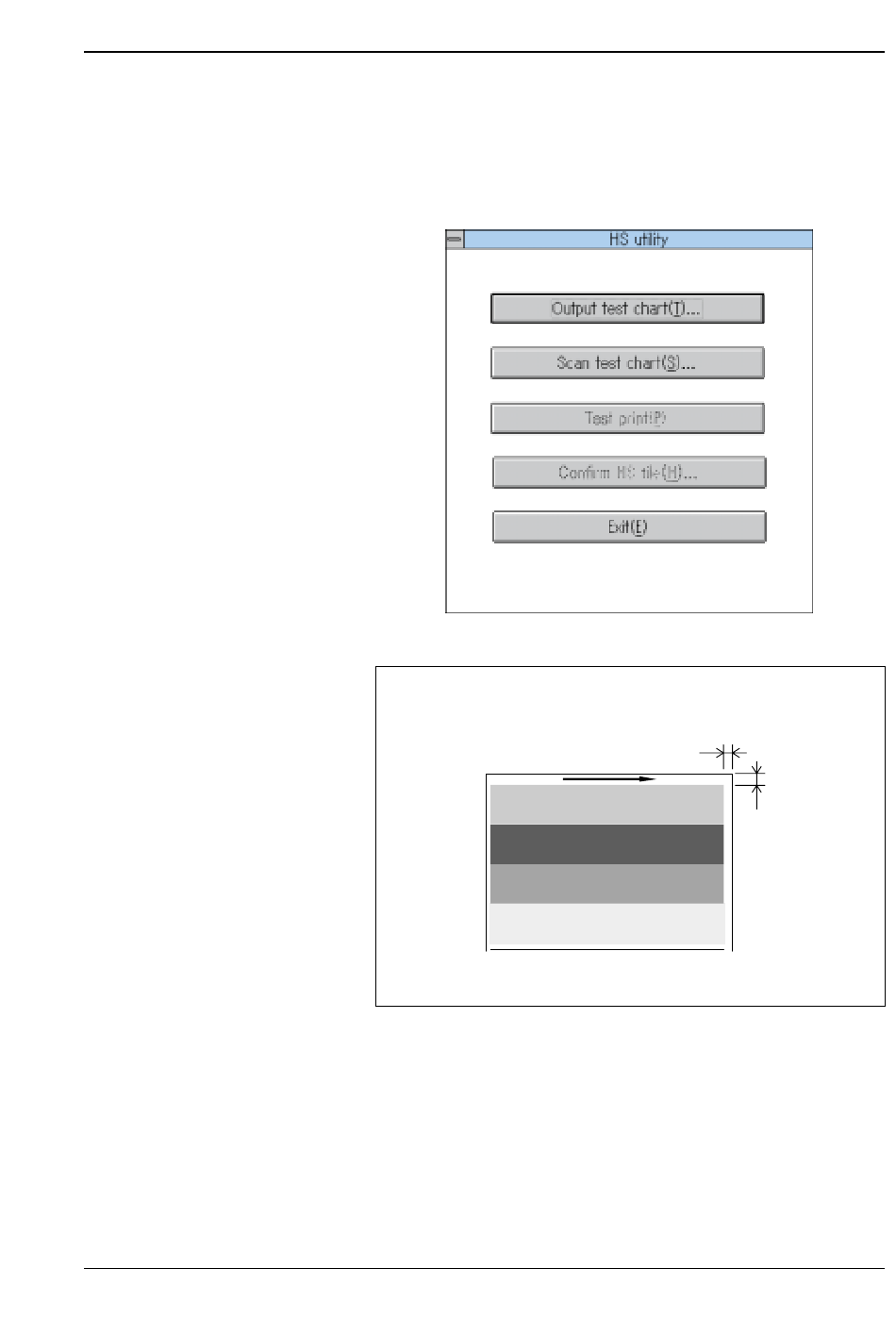

4. Click "Output test chart" and click "execute", test chart is output.
Caution:
Make sure that a printed image position is within the range below. If it is not,
adjust the registration to make it fall within the range.
Chapter 6 Troubleshooting
Figure 6-14
3.4±0.5 mm
4±2 mm
Figure 6-15
