3.2 Image Formation System, cont'd.
3.2:A BJ Head, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Installing the BJ head, cont'd.
4. Connect the flexible connector (1) to the BJ head which was
temporarily placed in Step 3 and to the engine 2 PCB and close
the ferrite core. In so doing, be careful not to force the BJ head
in and be sure to connect the connector (1) positively.
1
5. Connect the power cord to a wall outlet, and turn the power on
in service mode (see Chapter 6.5 Service Mode).
6. Move the head to the printing position in the maintenance mode
[Head Print/Cap] menu.
7. Push into the temporarily placed BJ head, and bring the both
sides of the BJ head (1) to the bottom face (2) of the head holder.
1
Chapter 3 Mechanical System
Yellow(Y)
Magenta(M)
Cyan(C)
Black(K)

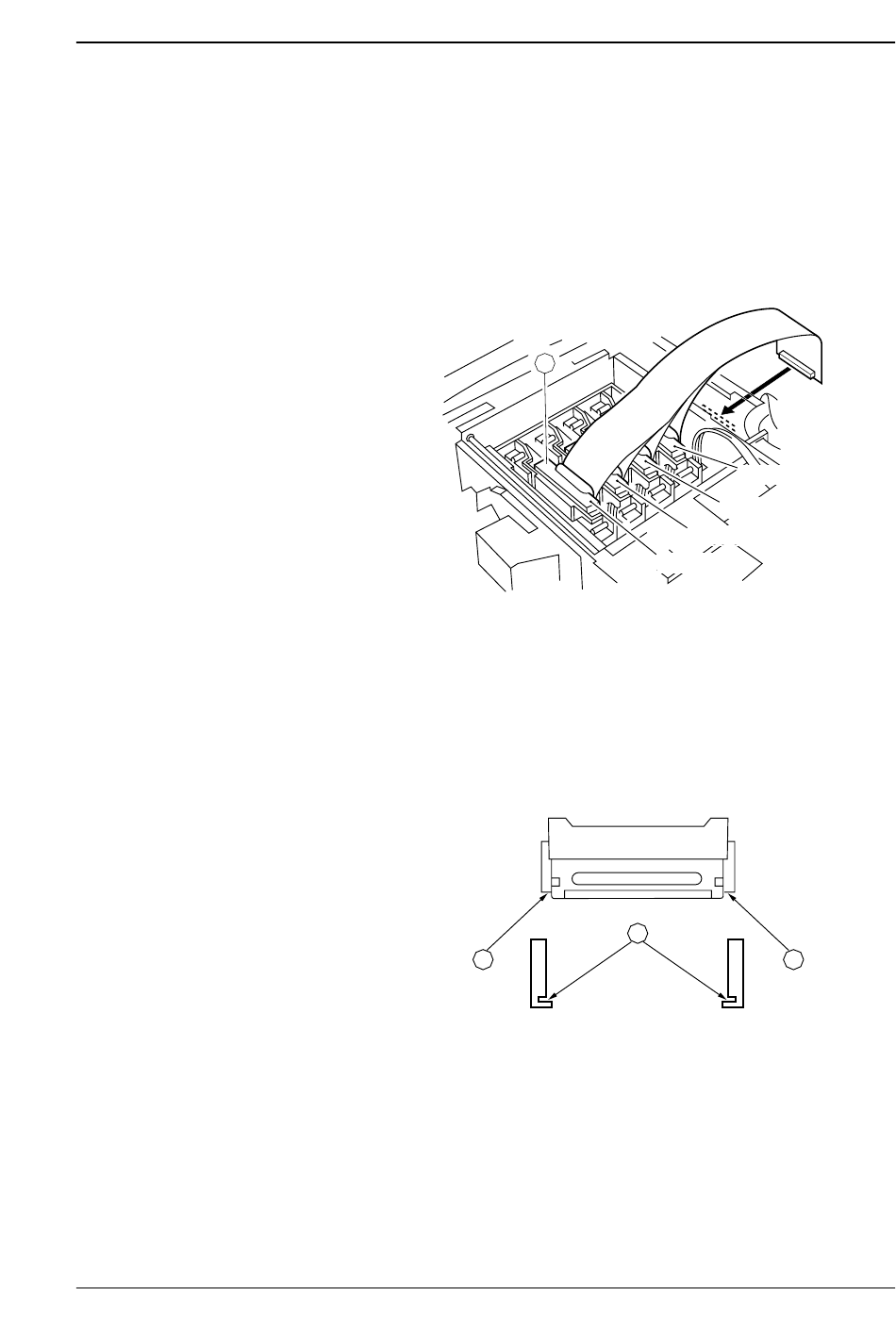

Figure 3-21
2
Figure 3-22
1
