2.1 Basic Operation, cont'd.

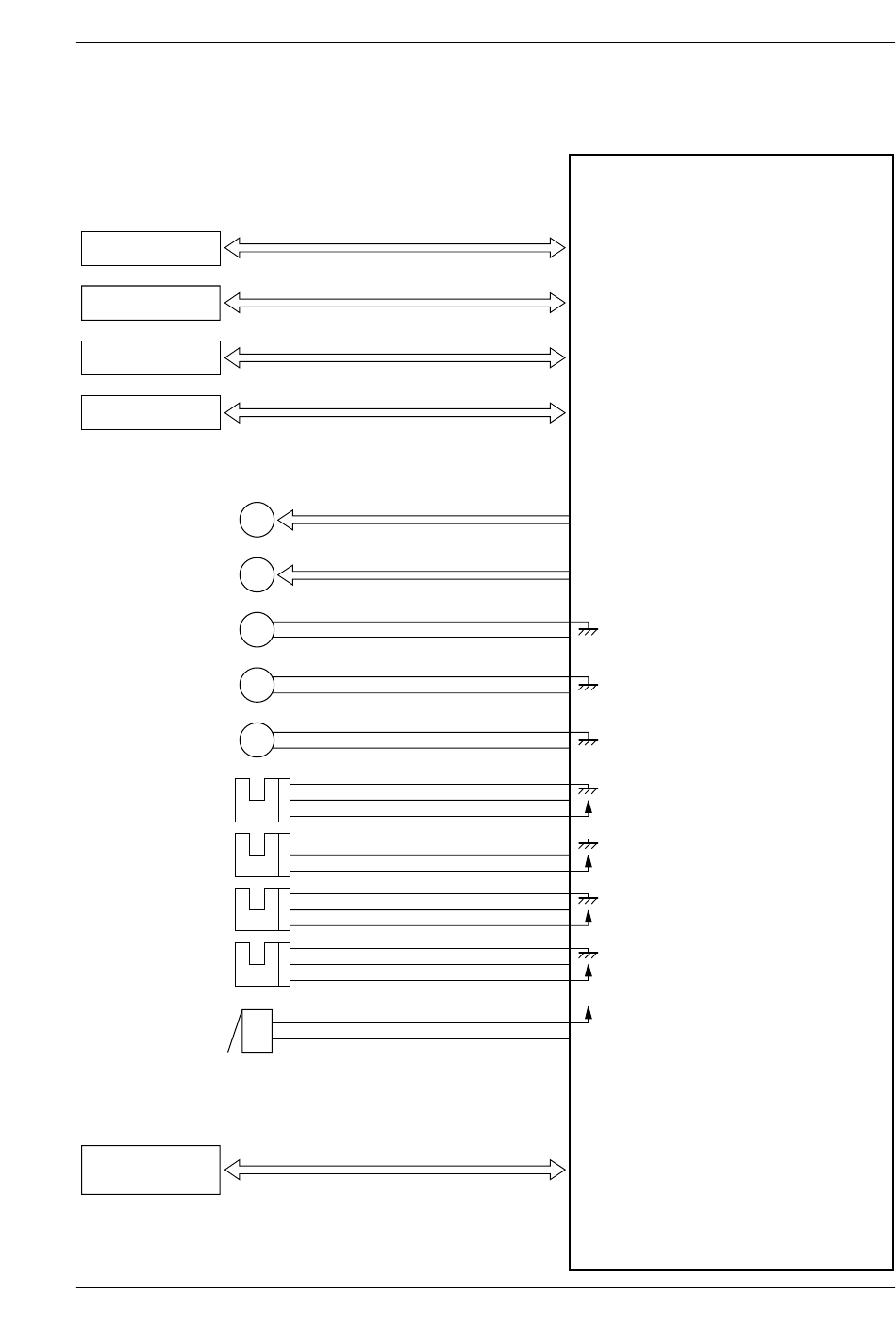

2.1:F Input from and Output to
Engine 2 PCB
J27
BJ head (K)
J28
BJ head (C)
J29
BJ head (M)
J30
BJ head (Y)
Cap motor
Head motor
Fan motor FM1
Fan motor
FM2
Fan motor
FM3
Cap position sensor 1
Cap position sensor 2
Head position sensor 1
Head position sensor 2
PHS open/close
MS1
detection switch
J308
J312
Engine 1 PCB
Intermec ColorCoder V4 – Service Manual Ed. 1
J18
M4
J19
M3
J20-1
-2
J21-1
-2
J22-1
-2
J23-3
-2
-1
PS6
J24-3
-2
-1
PS7
J25-3
-2
-1
PS8
J26-3
-2
-1
PS9
Chapter 2
J401
J402
J403
J404
J407
J407
J408-1
-2
FAN
-3
-4
FAN
-5
-6
FAN
J409-1
CPPSIT2
-2
-3
+5V
-4
CPPSIT1
-5
-6
+5V
-7
HDPSIT2
-8
-9 +5V
-10
HDPSIT1
-11
+5V
-12
+24V
J411-1
-2
CAP
J406
J412
Figure 2-6
Operation and Timing
Engine 2 PCB
When "H," fan motor is turned ON.
When "H," fan motor is turned ON.
When "H," fan motor is turned ON.
When recovery unit is at
home position, "H."
When recovery unit is past
home position, "H."
When head holder is at
home position, "H."
When head holder is past
home position, "H."
When PHS unit is closed, "H."
