Intermec ColorCoder V4 Service Manual page 51

2.3 Ink Supply System, cont'd.
2.3:A Outline, cont'd.
BJ Head
Restoration tub unit
Ink cartridge
Ink tank
Intermec ColorCoder V4 – Service Manual Ed. 1
Outline of Operation, cont'd.

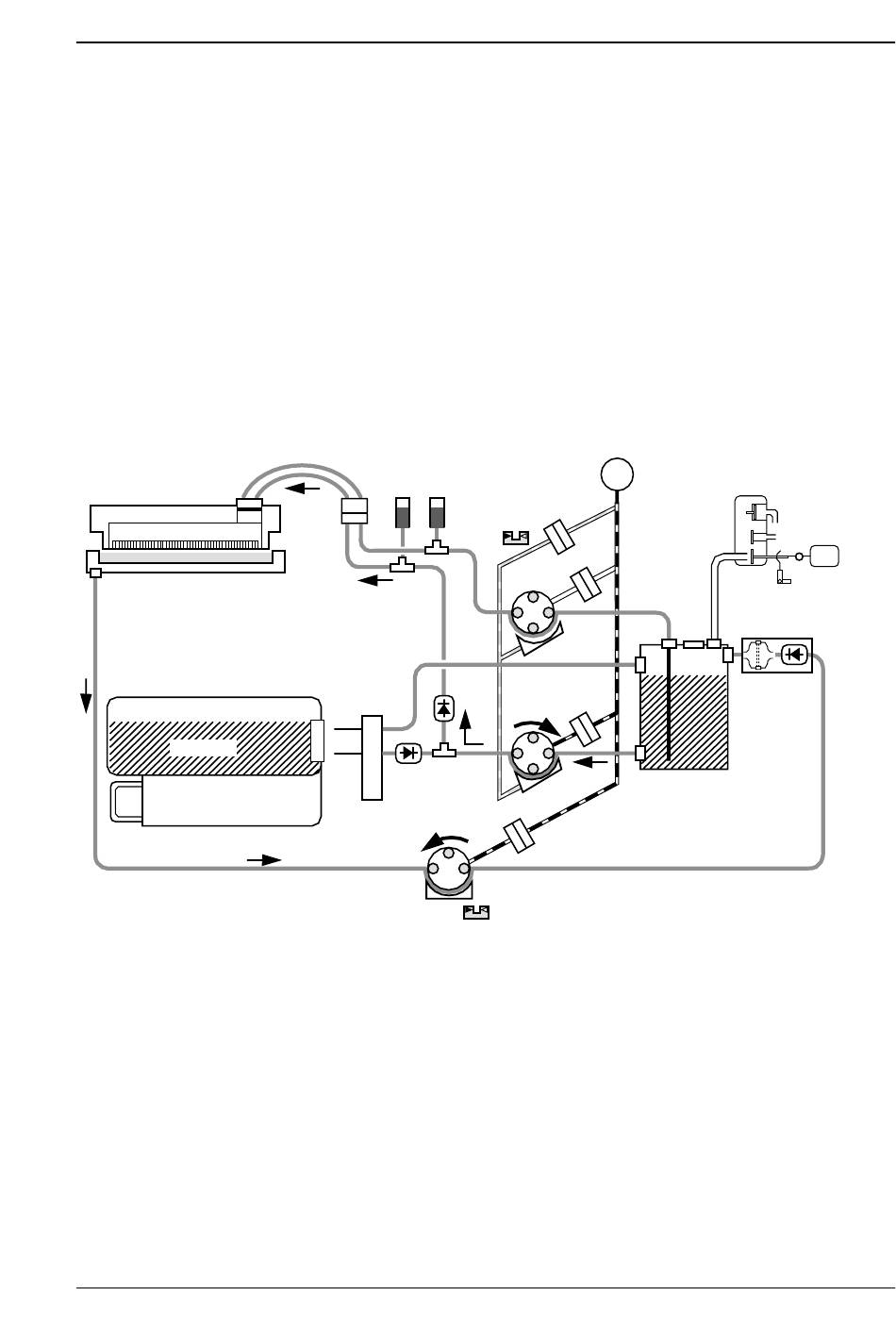

Operation of Pressure Mode
This operation will be executed during Cleaning 3 or Cleaning 4.
During the pressure mode, the open/close latch of the sub-tank is
opened, the pressure/release cam is pressurized with the suction
pump stopped, so that the suction pump is closed. When the
pressure pump executes pressure operation under this condition,
the ink is forcibly fed to the BJ head from the sub-tank and
exhausted out of the nozzle. The recovery pump executes the
suction operation to return the ink exhausted to the restoration tub
into the sub tank.
Tube
station
Air buffer
Pressure cam
home position
Needle block
Pump retainer
Recovery pump
Figure 2-34
Chapter 2
Pump motor
M
Cam
pressure
C.C.W.
release
clutch
sensor
Suction
clutch
Suction
pump
Pump
retainer
Pressure
Pressure
clutch
pump
One way
clutch
Recovery pump
home position
sensor
Operation and Timing
Breather
unit
Outlet
Release value
Inlet
SL
Latch lever
(Down)
Filter unit
Sub tank
Latch
solenoid
(Pull)
