2.4 Pick Up/Feeder System, cont'd.
2.4:E Checking for Paper Errors,
cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Basic Operation Sequence of Checking for Paper Error, cont'd.

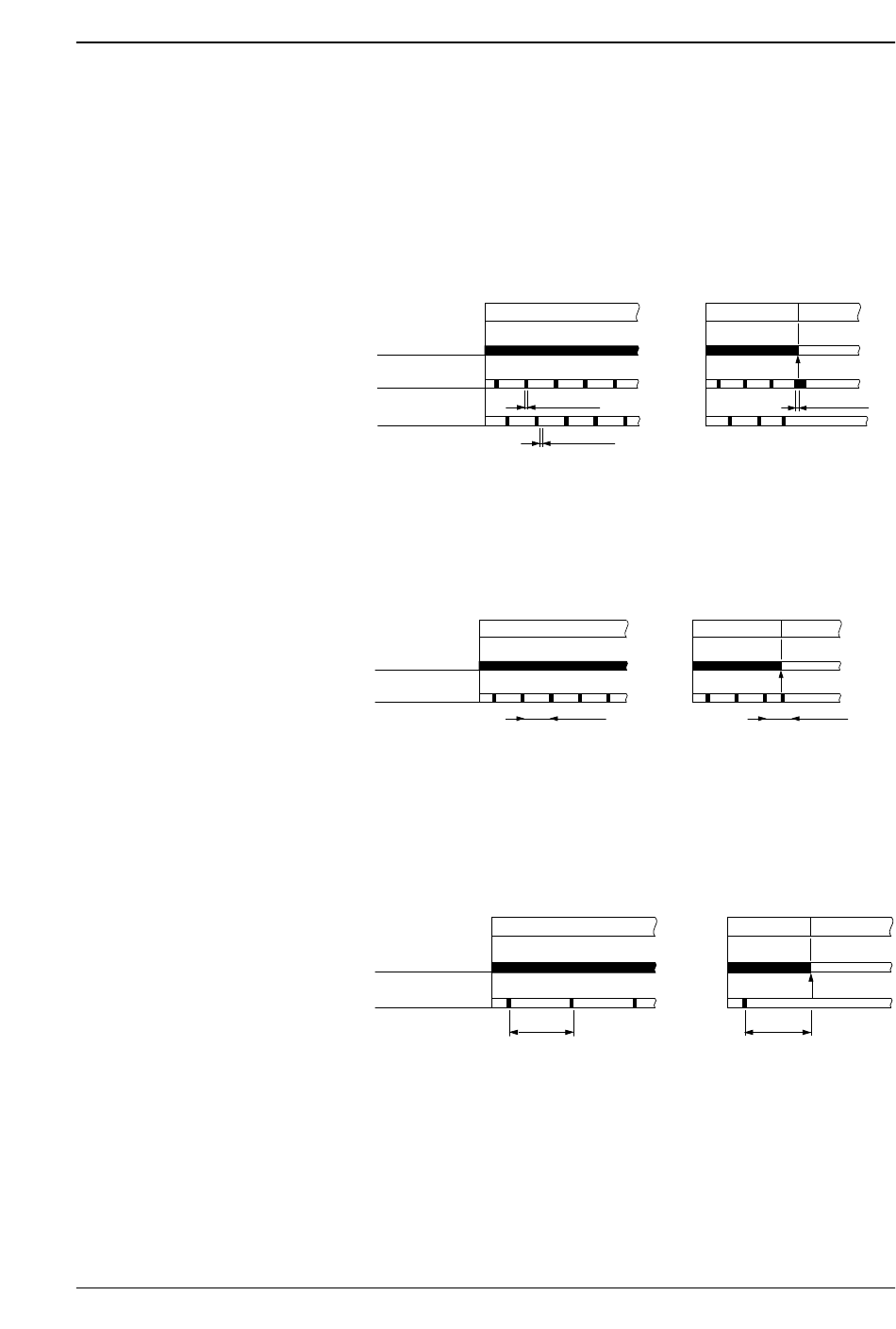

3. Paper feed error: When detection of the TOF mark by the TOF
inlet sensor or the TOF outlet sensor continues more than a
specified time while the paper is being fed.
Normal condition
Paper feed motor
Inlet TOF sensor
Approx. 0.06 sec
Outlet TOF sensor
4. Paper feed error: After the TOF mark is detected by the TOF inlet
sensor, the TOF inlet sensor detects the next TOF mark earlier
than a specified time.
Normal condition
PRINT
Paper feed motor
Inlet TOF sensor
5. Paper feed error: After the TOF mark is detected by the TOF inlet
sensor, the TOF inlet sensor cannot detect next TOF mark while
a specified time.
Normal condition
Paper feed motor
Inlet TOF sensor
Approx. 2 sec
(When the 3 inch length
paper is used)
Chapter 2 Operation and Timing
PRINT
Approx. 0.06 sec
Approx. 0.05 sec
(When the 3 inch length
paper is used)
PRINT
Abnormal condition
PRINT ERROR
Abnormal
Approx. 0.06 sec
Abnormal condition
PRINT ERROR
Abnormal
Approx. 0.5 sec
(When the 3 inch length
paper is used)
Abnormal condition
PRINT ERROR
Abnormal
Approx. 2 sec
(When the 3 inch length
paper is used)
