3.5:A Engine 1 PCB
Intermec ColorCoder V4 – Service Manual Ed. 1

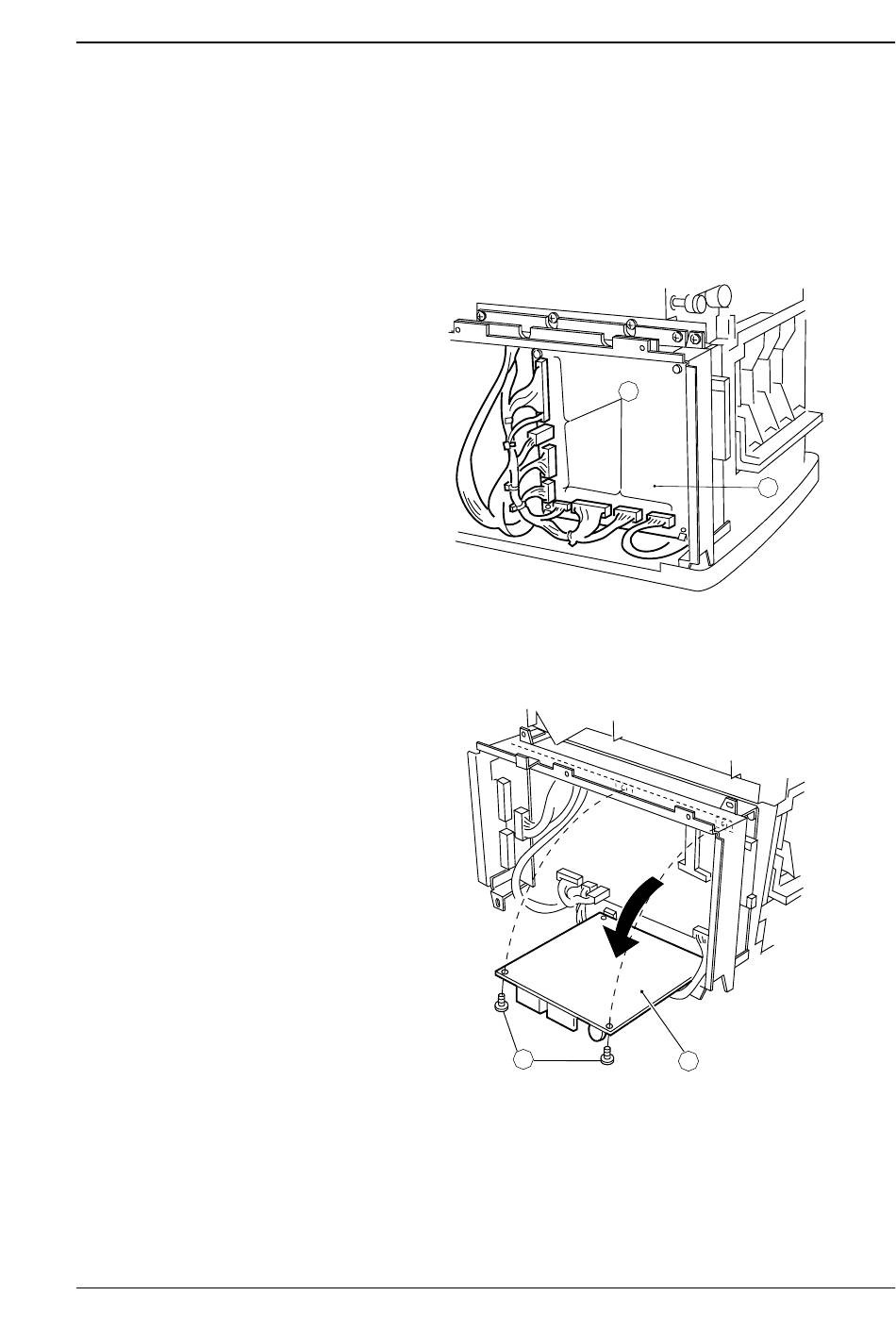

Detaching the Engine 1 PCB
1. Detach the external cover.
2. Disconnect the eleven connectors J301, J302, J303, J304, J305,
J306, J307, J308, J309, J312, and J314 (2) of the engine 1 PCB.
3. Remove the two mounting screws (2) of the engine 1 PCB (1),
and take off the PCB with the face down.
2
Chapter 3 Mechanical System
2
Figure 3-116
1
Figure 3-117
1
