3.2 Image Formation System, cont'd.
3.2:B Recovery Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Installing the Recover Unit, cont'd.
3. Install the connectors J21 & J22 (2) to the cap position sensors
1 & 2 (1), and fix the grounding wire (3) with the screw.
3
4. Insert the claws (1) of the further side of the recovery unit in the
holes (2) of the recovery support plate and push it to the bottom.
Chapter 3 Mechanical System
1
2

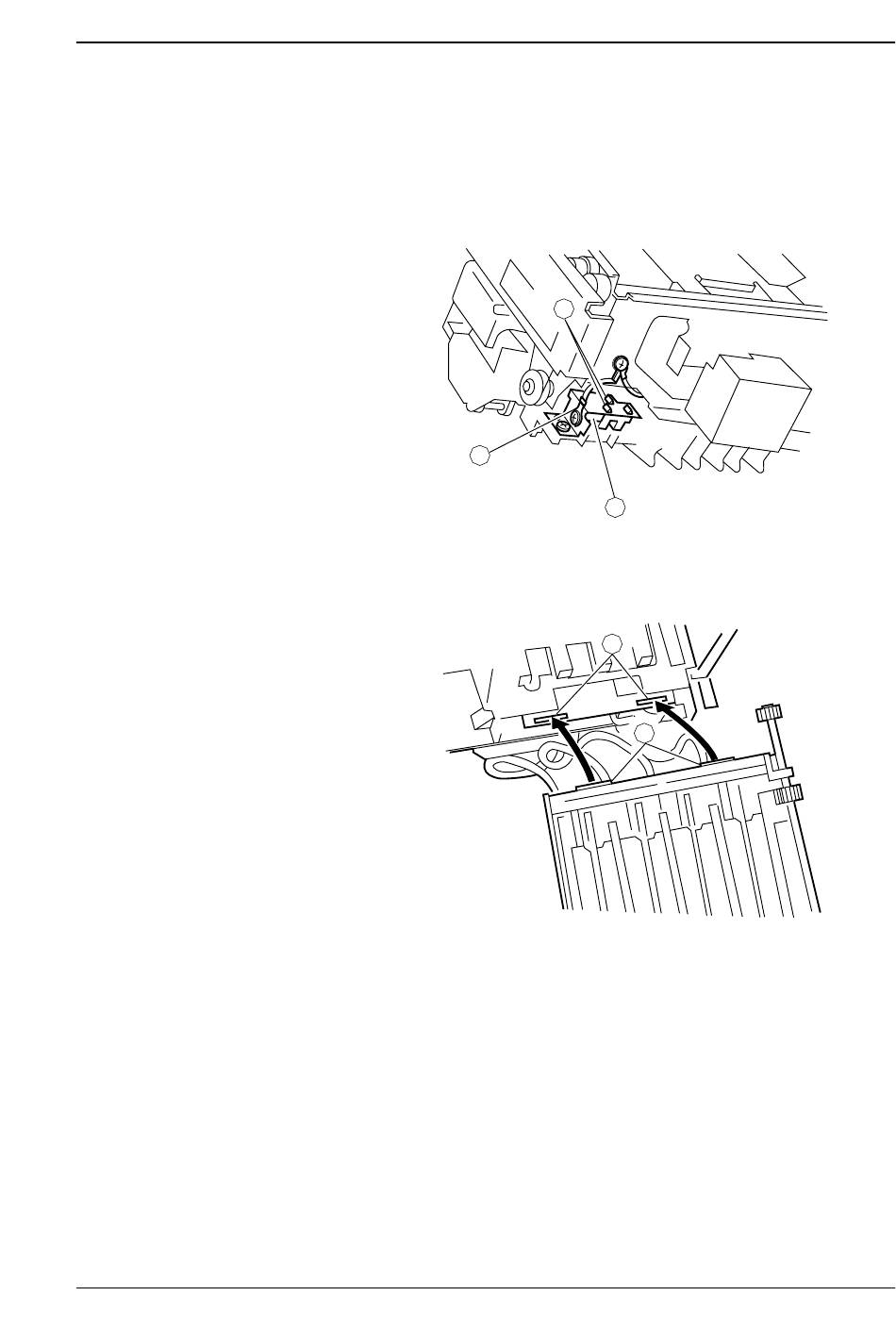

Figure 3-36
2
1
Figure 3-37
