3.4 Pick Up/Feeder System, cont'd.
3.4:B Feeder Unit, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1

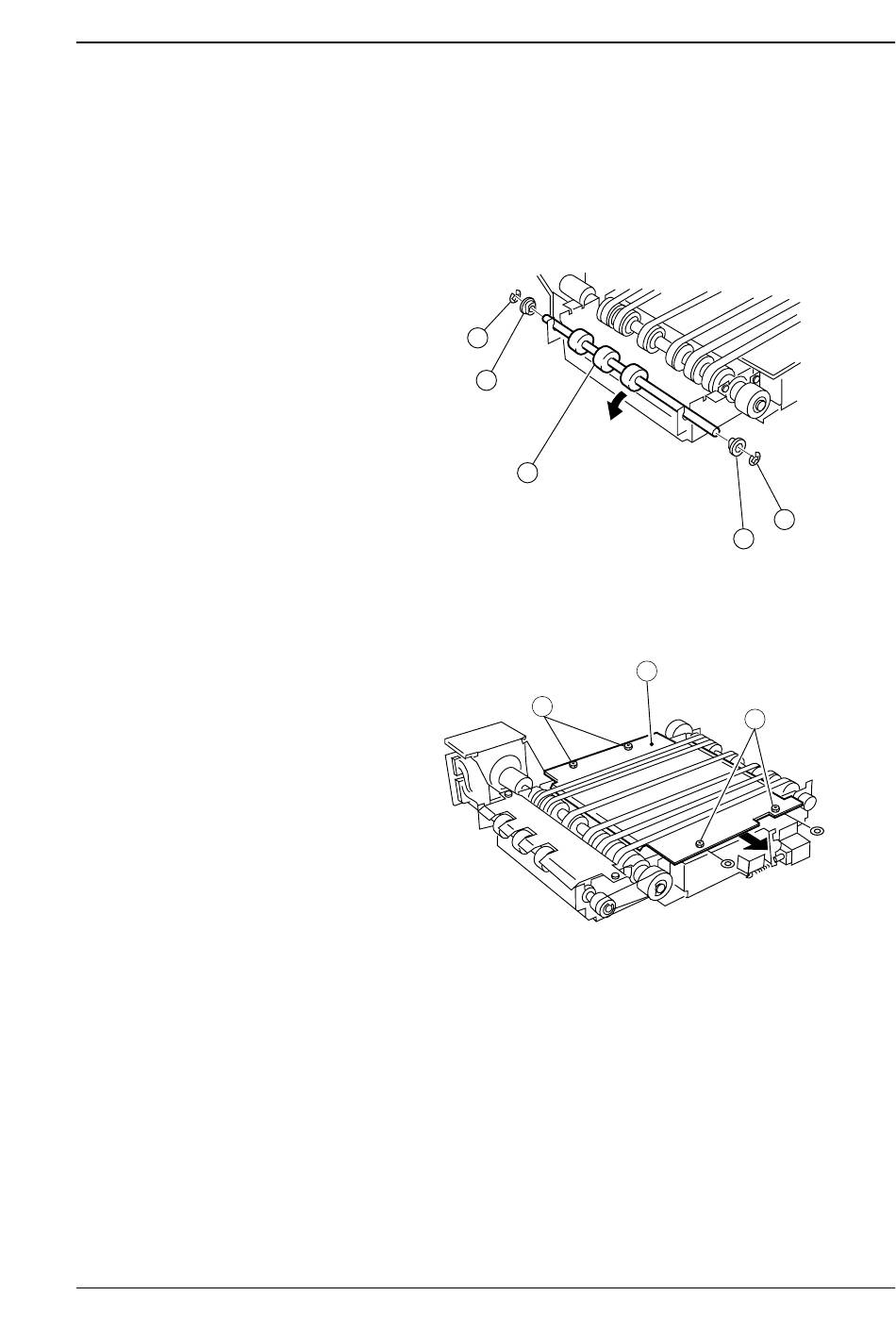

Detaching the Feed Belt and Roller
1. Remove the screw (1) and the bearing retainer (2), removing the
two screws (3), and detaching the bearing retainer plate (4) and
the bearing (5).
1
2
3
2. Remove the four mounting screws (2) of the platen plate (1), and
pull out the platen plate to detach it.
2
Chapter 3 Mechanical System
2
Figure 3-103
1
2
Figure 3-104
1
137
