3.4 Pick Up/Feeder System
3.4:A Roll Unit
Intermec ColorCoder V4 – Service Manual Ed. 1
Removing the Roll Unit
1. Remove the external cover.

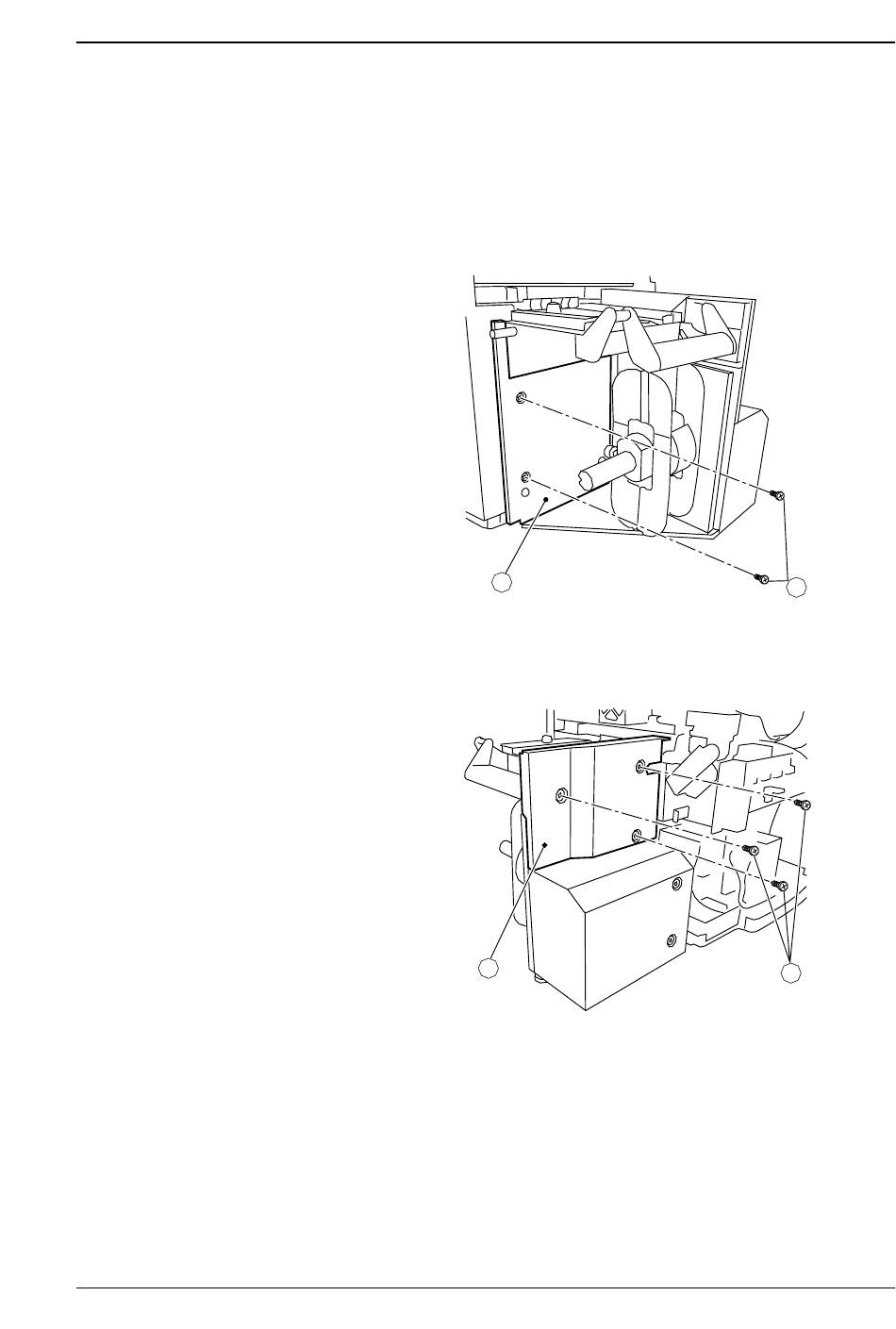

2. Remove the two screws (2) fixing the roll right cover (1) and
remove the cover.
1
3. Remove the three screws (2) from the roll rear cover (1) and
remove the cover.
1
Chapter 3 Mechanical System
Figure 3-76
Figure 3-77
2
2
122
