3.4 Pick Up/Feeder System, cont'd.
3.4:C Rowels and Rollers
Intermec ColorCoder V4 – Service Manual Ed. 1

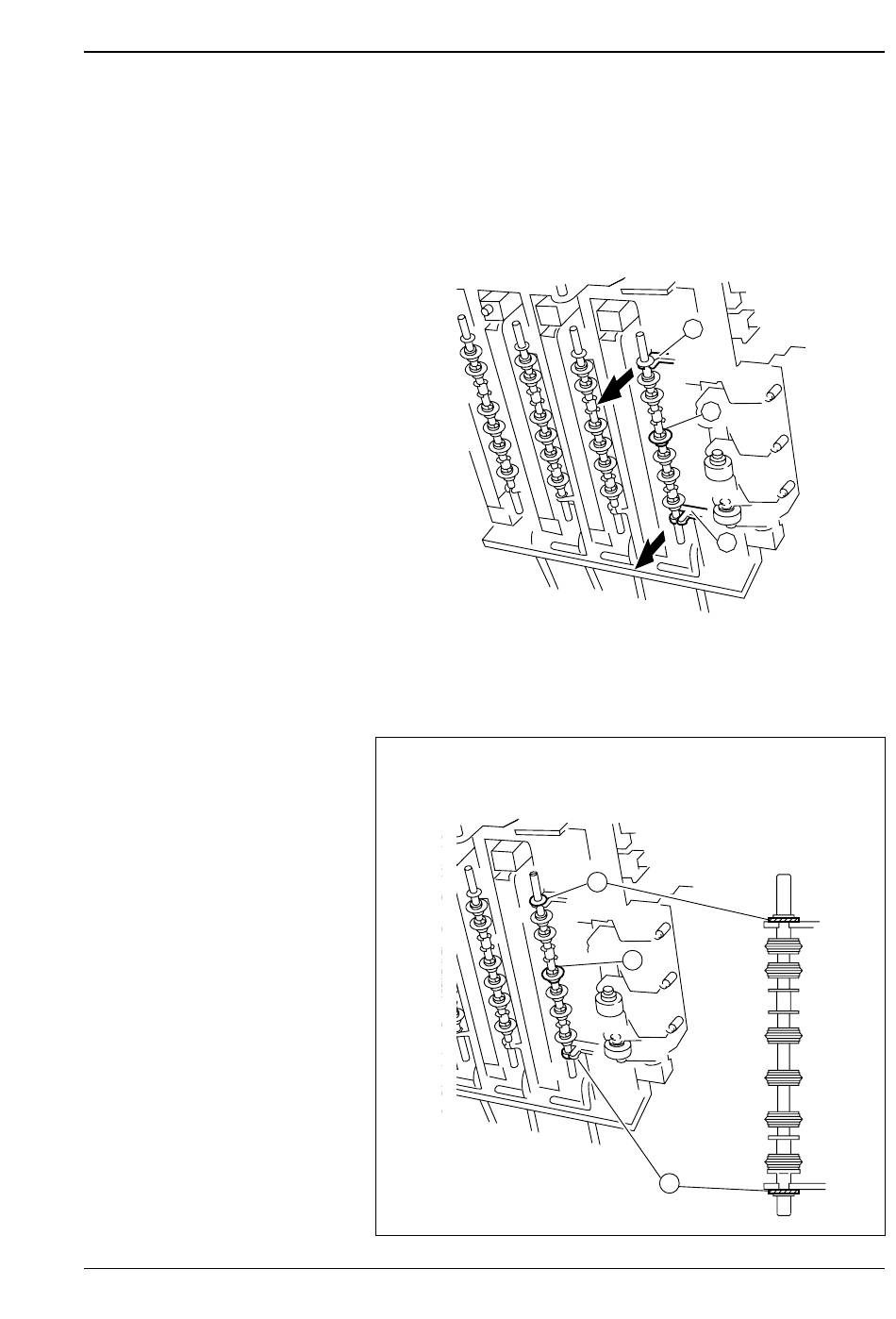

Removing the Rowel Unit and Rowel Cleaner Unit
1. Open the PHS unit.
2. Detach the rowel by pulling downward the shaft near the
bushing wof the rowel unit (1).
3. After detaching the rowel unit (1), detach the rowel cleaner unit
by pulling the shaft downward in the same manner as the rowel
unit.
Caution in Attaching the Rowel unit
When attaching the rowel (1), be sure that the washers (2) are on the outside
of the bushing.
Chapter 3 Mechanical System
2
1
2
Figure 3-110
2
1
2
Figure 3-111
