Intermec ColorCoder V4 Service Manual page 92

3.2 Image Formation System, cont'd.
3.2:A BJ Head, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Installing the BJ head, cont'd.

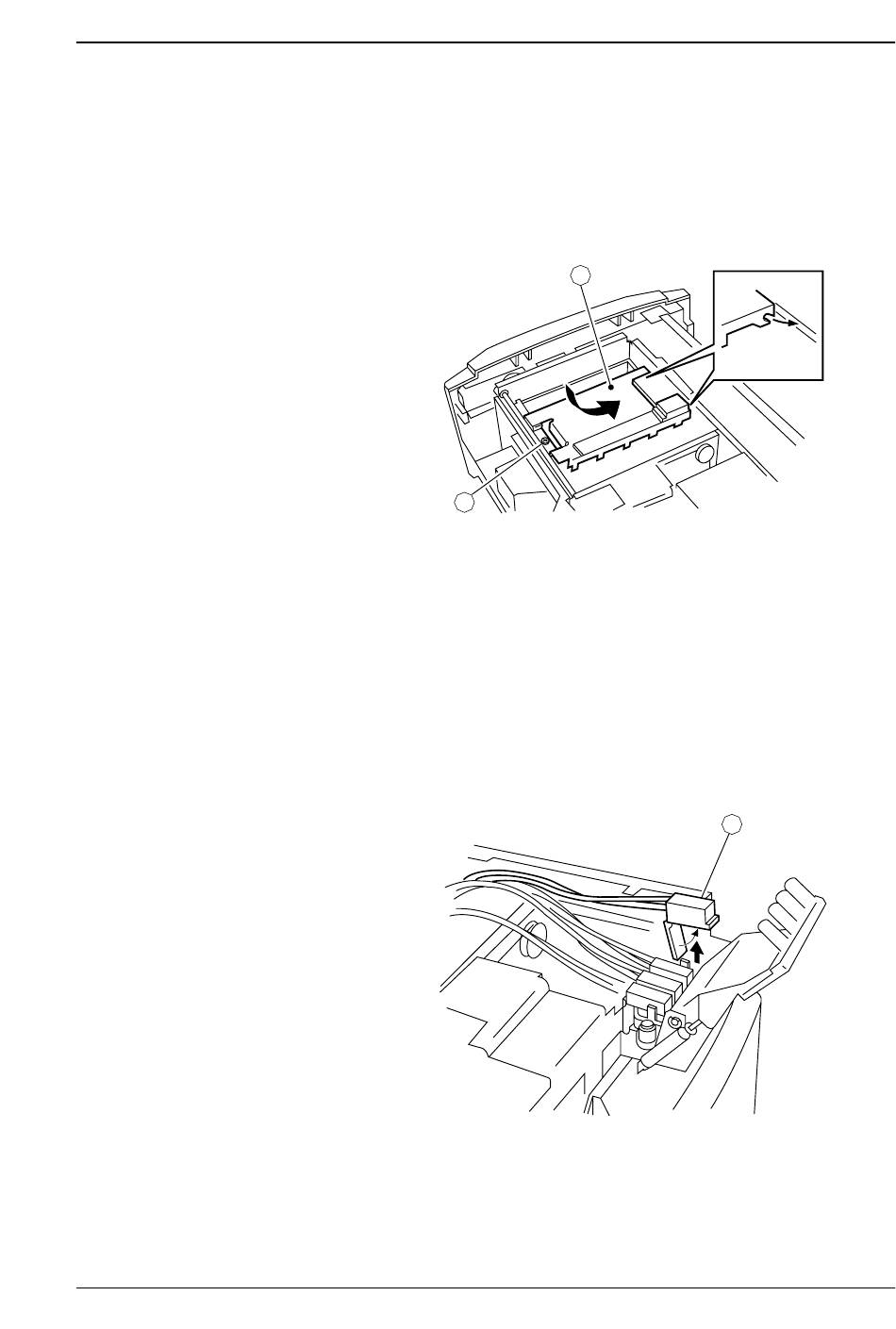

8. Install the head upper plate (1), and fasten the one screw (2). (If
the BJ head is not brought to head holder unit, the head upper
plate can not be installed.)
2
9. Move the BJ head to the cap position in the maintenance mode
[Head Print/Cap] menu.
10. Open the PHS unit. Remove the head mount sheet placed on the
feed unit.
11. Close the PHS unit.
12. Release the tube release lever, and remove the transportation
connectors (1-901806-00) from the tube stations.
13. Remove the connector packing (1-901808-00) from the tube
connectors (1), and connect the tube connectors to the tube
stations.
14. Close the tube release lever. Attach the PHS cover.
15. Execute "SETUP CLEANING".
16. Finish the service mode, and transfer to the normal mode (see
Chapter 6.5 Service Mode).
Chapter 3 Mechanical System
1
Figure 3-23
1
Figure 3-24
91
