2.4 Pick Up/Feeder System, cont'd.
2.4:C Pick Up Operation, cont'd.
Intermec ColorCoder V4 – Service Manual Ed. 1
Summary of operation, cont'd.
After completion of printing (or when printing is interrupted), the
last printed paper is delivered out of the outlet.
When printing is started (resumed) next, the feed belt and roll unit
roll drive shaft is reversed (only when roll paper is used) to return
the top of the paper next to the printed paper to the position of the
TOF inlet sensor 1 or 2.
When the top of the next paper returns to the position of the TOF
inlet sensor 1 or 2, paper pick up and feeding operation is started.
TOF inlet sensor
Chapter 2 Operation and Timing
Roll drive shaft

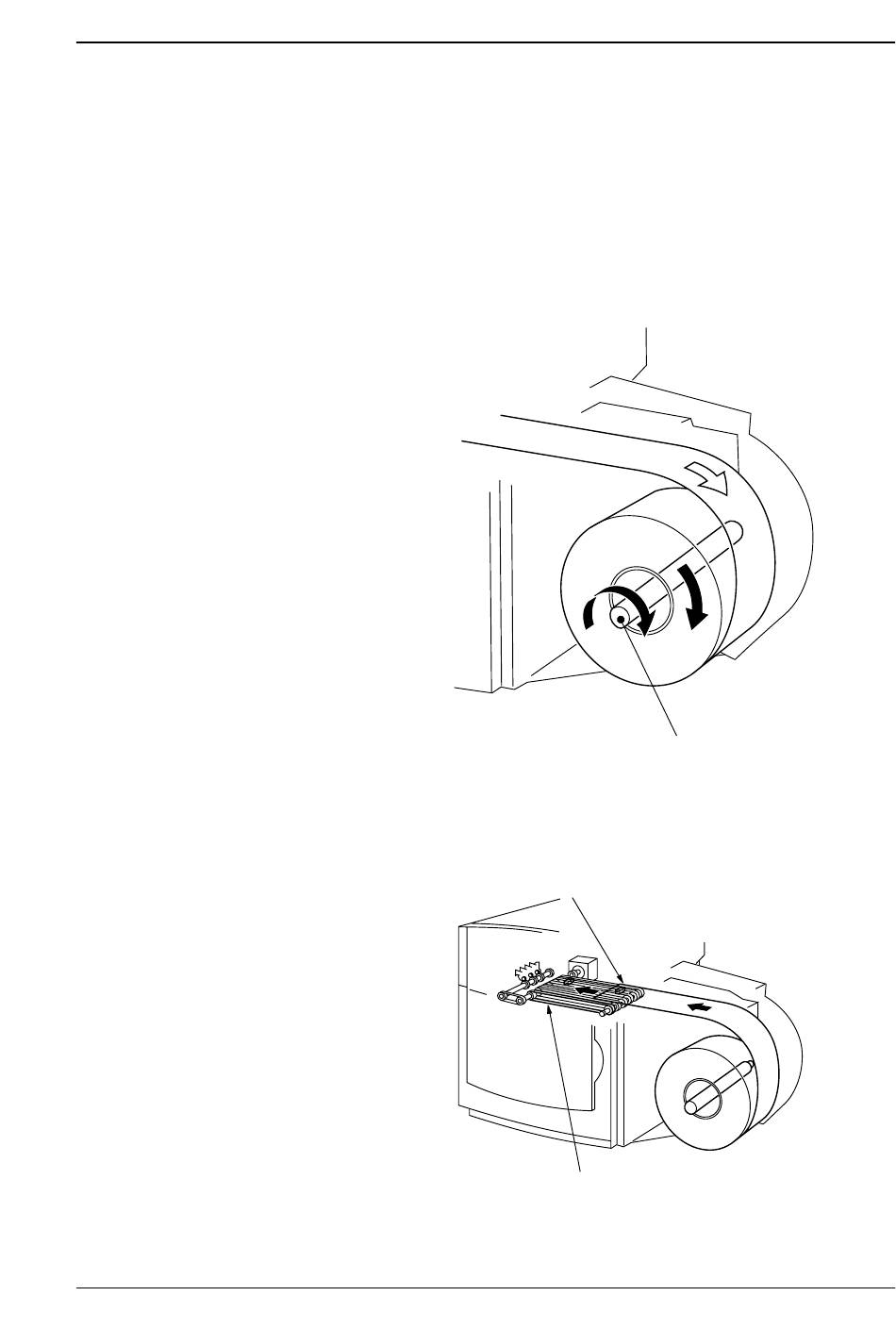

Figure 2-49
Feed belt
Figure 2-50
