RM0090
3

Embedded Flash memory interface

3.1

Introduction

The Flash memory interface manages CPU AHB I-Code and D-Code accesses to the Flash
memory. It implements the erase and program Flash memory operations and the read and
write protection mechanisms.
The Flash memory interface accelerates code execution with a system of instruction
prefetch and cache lines.
3.2

Main features

•
Flash memory read operations
•
Flash memory program/erase operations
•
Read / write protections
•
Prefetch on I-Code
•
64 cache lines of 128 bits on I-Code
•
8 cache lines of 128 bits on D-Code
Figure 3

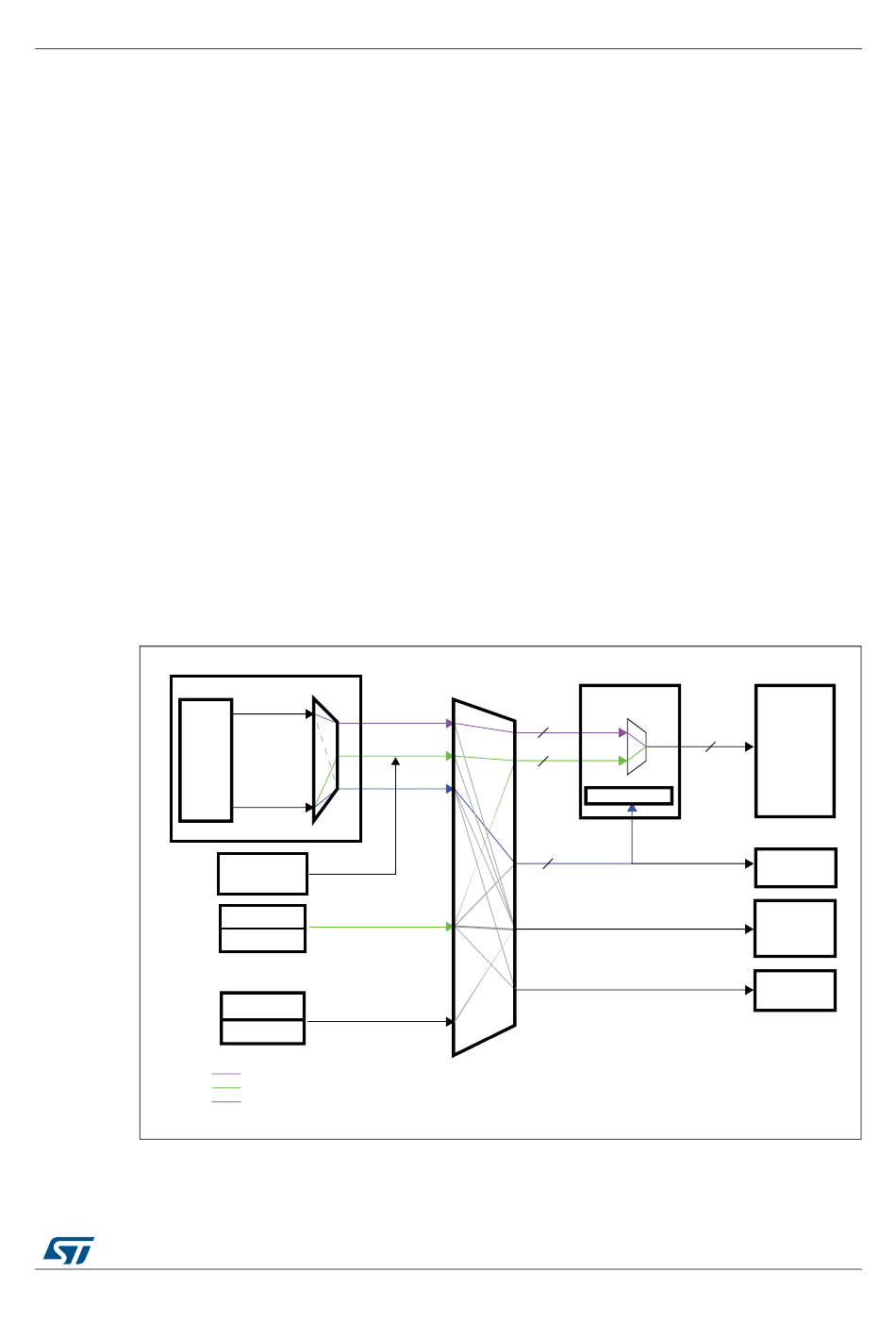

Figure 3. Flash memory interface connection inside system architecture
Cortex
core
shows the Flash memory interface connection inside the system architecture.
(STM32F405xx/07xx and STM32F415xx/17xx)
Cortex-M4 with FPU
I-Code bus
D-code bus
CCM data
RAM
DMA1
DMA2
USB HS
Ethernet
Access to instruction in Flash memory
Access to data and literal pool in Flash memory
FLITF register access
AHB
32-bit
instruction
I-Code
bus
D-Code
AHB
S bus
32-bit
data bus
AHB
32-bit
system bus
RM0090 Rev 18
Embedded Flash memory interface
Flash
memory
Flash interface
bus
128 bits
FLITF registers
Flash
memory
AHB
periph1
SRAM and
External
memories
AHB
periph2
MS30468V3
73/1749
