Serial peripheral interface (SPI)
28.3 SPI functional description
28.3.1 General description
The block diagram of the SPI is shown in
MOSI
MISO
SCK
NSS
Usually, the SPI is connected to external devices through four pins:
•
MISO: Master In / Slave Out data. This pin can be used to transmit data in slave mode
and receive data in master mode.
•
MOSI: Master Out / Slave In data. This pin can be used to transmit data in master
mode and receive data in slave mode.
•
SCK: Serial Clock output for SPI masters and input for SPI slaves.
• NSS: Slave select. This is an optional pin to select a slave device. This pin acts as a
'chip select' to let the SPI master communicate with slaves individually and to avoid
contention on the data lines. Slave NSS inputs can be driven by standard IO ports on
the master device. The NSS pin may also be used as an output if enabled (SSOE bit)
and driven low if the SPI is in master configuration. In this manner, all NSS pins from
devices connected to the Master NSS pin see a low level and become slaves when
they are configured in NSS hardware mode. When configured in master mode with
NSS configured as an input (MSTR=1 and SSOE=0) and if NSS is pulled low, the SPI
enters the master mode fault state: the MSTR bit is automatically cleared and the
device is configured in slave mode (refer to
A basic example of interconnections between a single master and a single slave is
illustrated in
876/1749

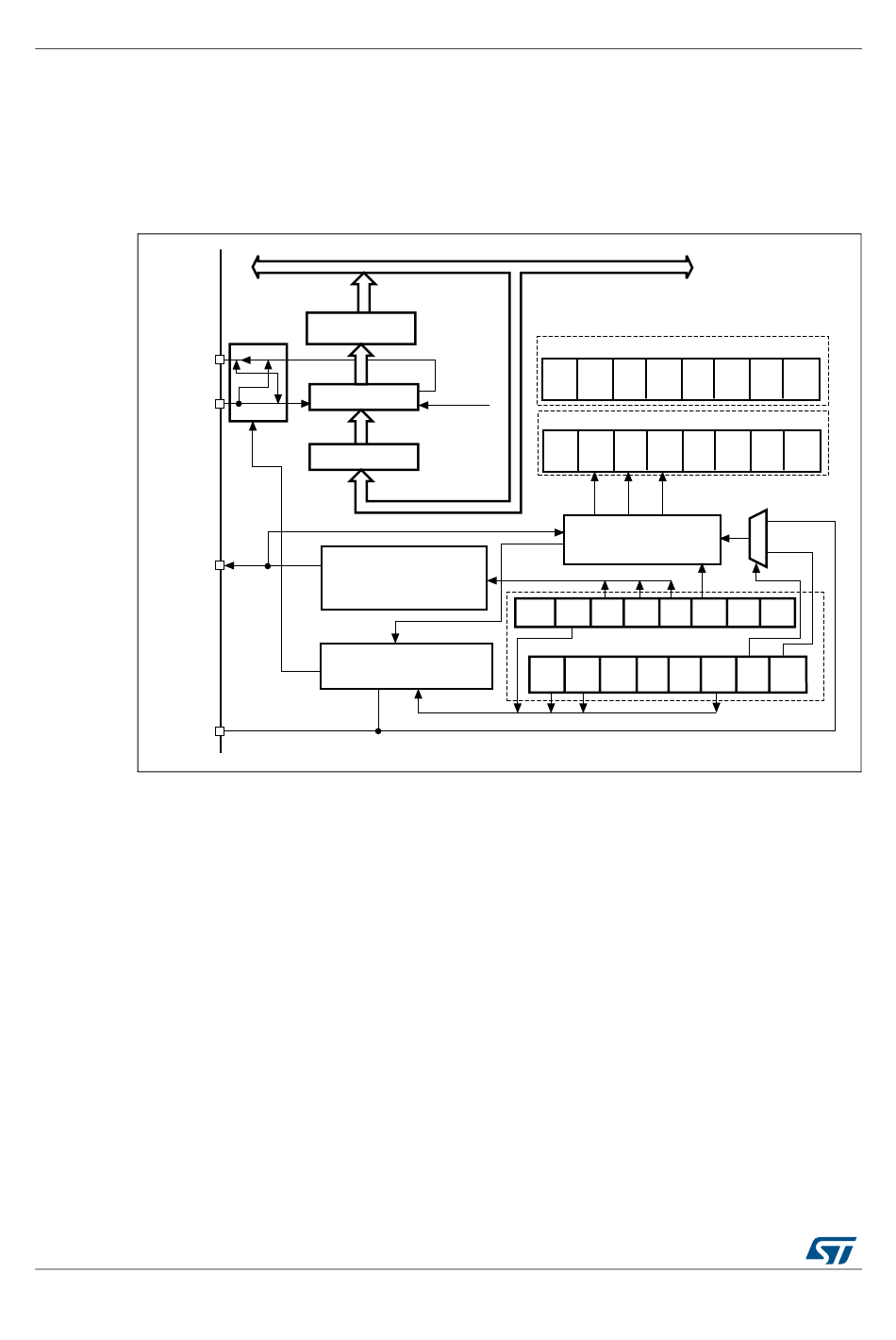

Figure 246. SPI block diagram
