ADV7604

12.6.3 Using CEC Module as Follower

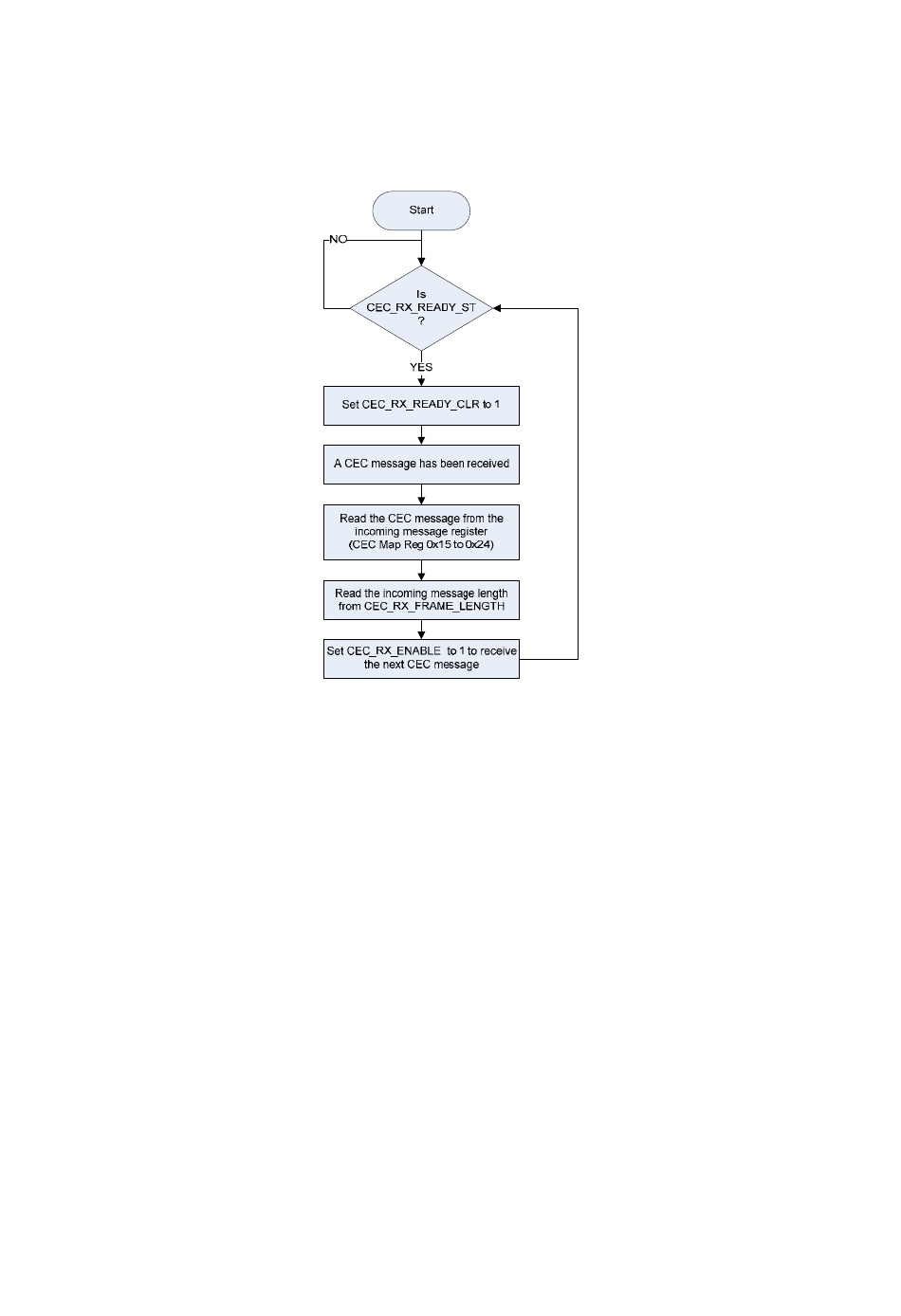

Figure 119
shows the algorithm that can be implemented in the host processor controlling the
ADV7604 in order to use the CEC module as a follower.

Figure 119: Using CEC Module as Follower

361
Rev. F August 2010
