HSYNC_FRONT_PORCH[9:0], HSync Front Porch Width, HDMI Map, Address 0x20, [1:0];
Address 0x21, [7:0]
Function
HSYNC_FRONT_PORCH
[9:0]
xx xxxxxxx
HSYNC_PULSE_WIDTH[9:0], HSync Width, HDMI Map, Address 0x22, [1:0]; Address 0x23,
[7:0]
Function
HSYNC_PULSE_WIDTH
[9:0]
xx xxxxxxx
HSYNC_BACK_PORCH[9:0], HSync Back Porch Width, HDMI Map, Address 0x24, [1:0];
Address 0x25, [7:0]
Function
HSYNC_BACK_PORCH
[9:0]
xx xxxxxxx
a Total number of pixels per line
b Active number of pixels per line
c HSync front porch width in pixel unit
Rev. F August 2010
Description
HSync front porch width in units of unique pixels
Description
HSync width in units of unique pixels
Description
HSync back porch width in units of unique pixels

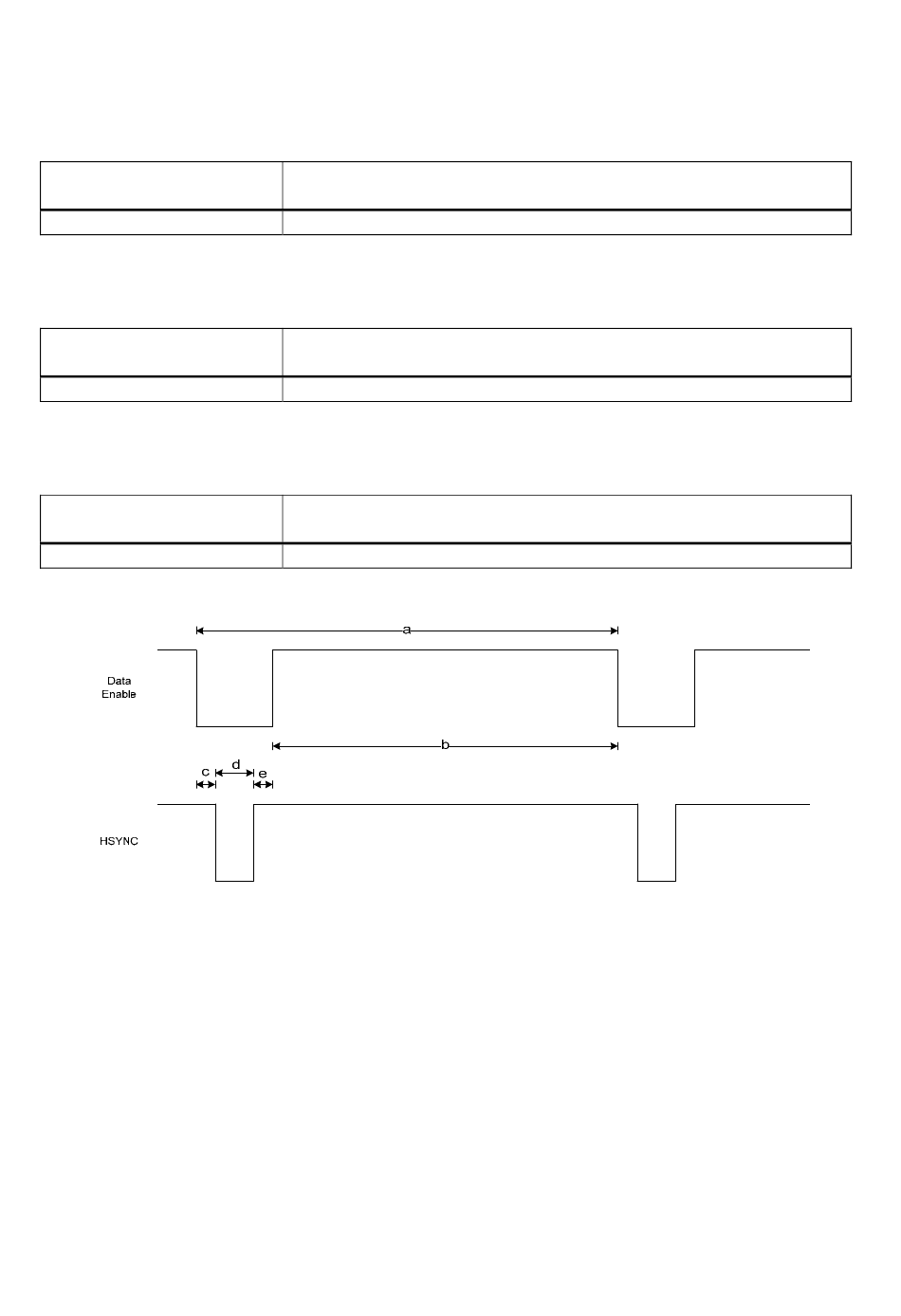

Figure 34: Horizontal Timing Parameters

d HSync width in pixel unit
e HSync back porch width in pixel unit
