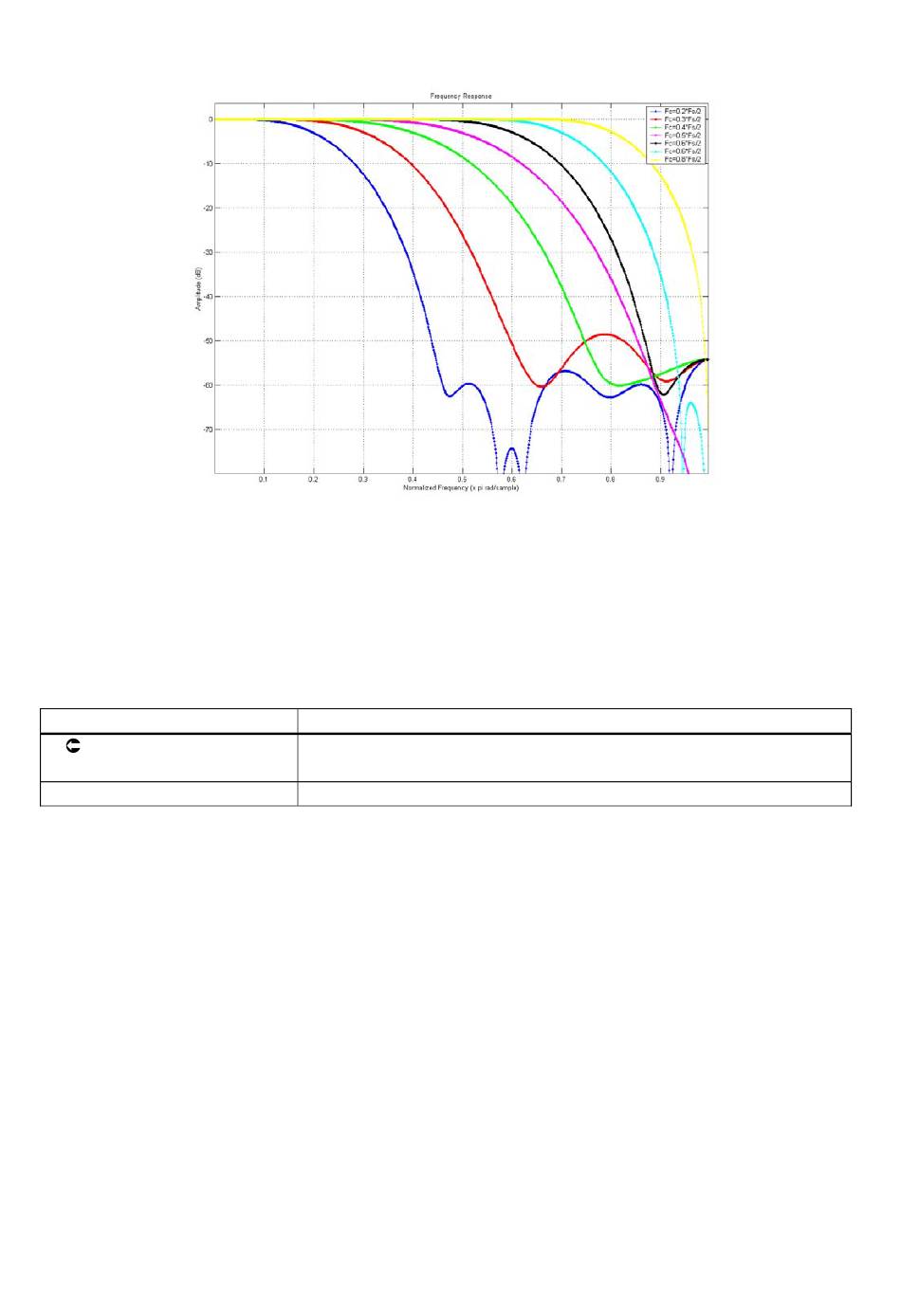

Figure 53: DPP Predetermined Filter Responses Available in Manual Selection Mode

DPP_CHROMA_LOW_EN, IO Map, Address 0xE7, [4]
The DPP_CHROMA_LOW_EN bit allows the user to switch between a high bandwidth signal with
a sharp transition curve and a softer filter with less ringing.
Function
DPP_CHROMA_LOW_EN
0
1
Notes:
• The soft filter is only available for channels B and C
• Refer to
Figure
different filter options
Rev. F August 2010
Description
High bandwidth, sharp transition band filter used for channels B
and C
Soft filter with minimized ringing selected on channels B and C
