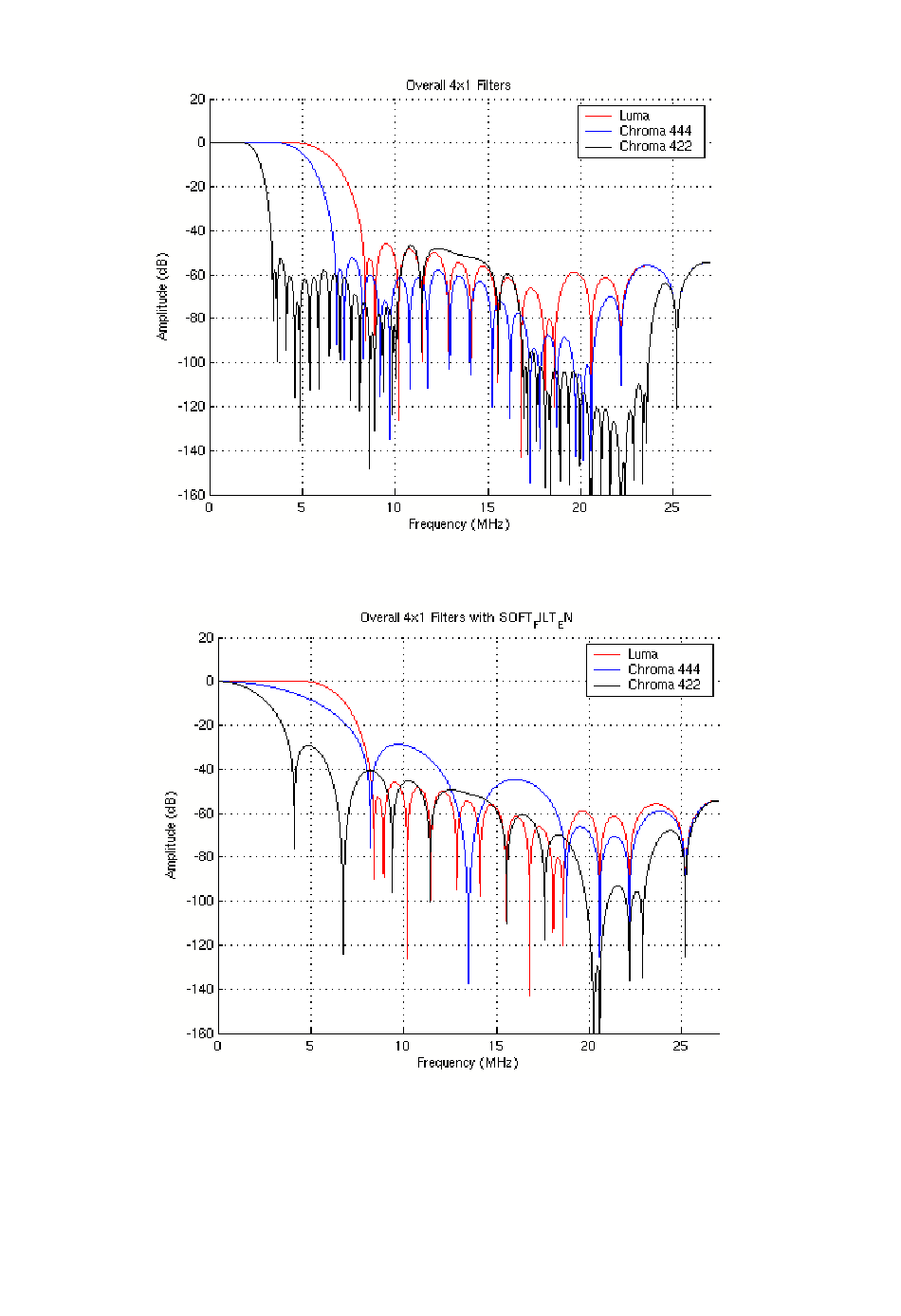

Figure 59: Default Channel A/D Decimation by 4, Channel B/C Decimation by 4 and 8 for Fs = 54
MHz
Figure 60: Default Channel A/D Decimation by 4, Channel B/C Decimation by 4 and 8 with
DPP_CHROMA_LOW_EN = 1 for Fs = 54 MHz
