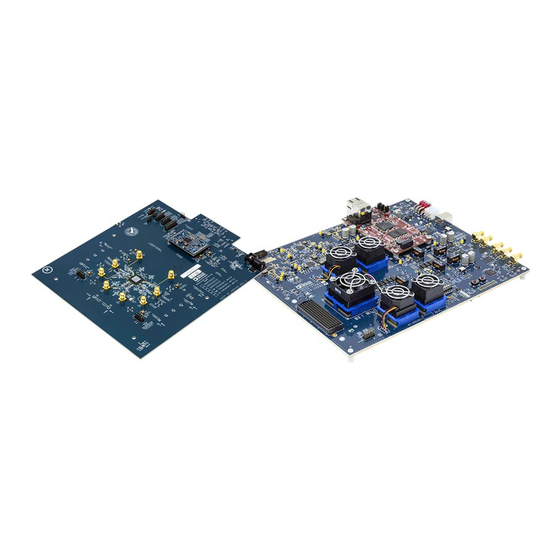

- Page 1 ADRV902X GUI Troubleshooting Guide 1 9 February 2021 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
- Page 2 If connecting for first time, please check below For the users who are connecting (ADS9 and ADRV902x) first time please refer to the details § that are given in user guide UG-1727 Section “ TRANSCEIVER EVALUATION SOFTWARE (TES) Page 250 of 267. OPERATION” After turning on EVB setup it takes approximately 3 -4 minutes to complete the boot • sequence. We recommend customers to try connecting to board from GUI after 4 minutes of time • The following slides will provide the troubleshooting details if in case any issue is seen • 9 February 2021 2 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
-
Page 3: Troubleshooting Steps
Troubleshooting steps S.No Symptoms Troubleshooting steps Serial console port connection Slide 4 If D3 Boot Status LED not turning OFF Slide 5 If D3 Boot Status LED blinking or IP Ping is intermittent Slide 6 If D3 Boot Status LED is normal (Turned OFF after 3- 4 Slide 7 minutes) but no ping with board. If Ping is constant and Boot sequence is normal, but GUI is Slide 8 not connecting to Board. If GUI is not connecting after update platform files Slide 9 If command server is not running, then try running manually Slide 10 and connecting from GUI 9 February 2021 3 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved. - Page 4 Serial console port connection Connect USB cable to read the serial port console log ► Serial Port Settings 4 9 February 2021 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
- Page 5 If D3 Boot Status LED not turning OFF If D3 Boot Status LED not turning OFF. ► Check the serial console log. The image shows the normal ► boot log. If Boot sequence is not normal try re-flashing the SD Card ► Image. SD Card Image download link: To be added. ► To write SD card use win32 disk imager or similar tool. https://wiki.analog.com/resources/tools-software/linux- software/zynq_images/ windows_hosts?s[]=sd&s[]=card&s[]=write#flash_the_sd_card Boot sequence is normal issue could be with the ADS9 board ► @ itself. Try swapping the board or contact ADI Support https://ez.analog.com/wide-band-rf-transceivers/design-support-adrv9026/ 5 9 February 2021 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
- Page 6 If D3 Boot Status LED blinking or IP Ping is intermittent If D3 Boot Status LED blinking or IP Ping is intermittent ► Check the serial console log, if board is restarting continuously check the switch position ► It should be OFF position. 9 February 2021 6 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
- Page 7 If D3 Boot Status LED is normal (Turned OFF after 3- 4 minutes) but no ping with board. If D3 Boot Status LED is normal (Turned OFF after 3- 4 minutes) but no ping with board. ► Check the IP configuration side on PC ► 9 February 2021 7 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
- Page 8 If Ping is constant and Boot sequence is normal, but GUI is not connecting to Board. If Ping is constant and Boot sequence is normal, but GUI is not connecting to Board. ► Enter the Demo mode by entering the correct part number and do update platform files from GUI. ► After updating platform files, restart the board and try connecting ► 8 9 February 2021 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
- Page 9 If GUI is not connecting after update platform files If GUI is not connecting after update platform files ► Check whether ADRV902x Command server is running ► Or using netstat -lptu ► 9 9 February 2021 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
- Page 10 If command server is not running, then try running manually and connecting from GUI. If command server is not running, then try running manually and connecting from GUI. ► If you are getting any error when you are executing the command server manually, try updating the ► EEPROM binary file. Please follow the below link to update EEPROM content ► https://ez.analog.com/wide-band-rf-transceivers/design-support-adrv9026/w/documents 9 February 2021 10 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
- Page 11 Follow Up If the issue is solved with any of the troubleshooting steps, please contact ADI Support team ► @ https://ez.analog.com/wide-band-rf-transceivers/design-support-adrv9026/ 9 February 2021 11 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
