Component
Channel
Y
Cb/Cr

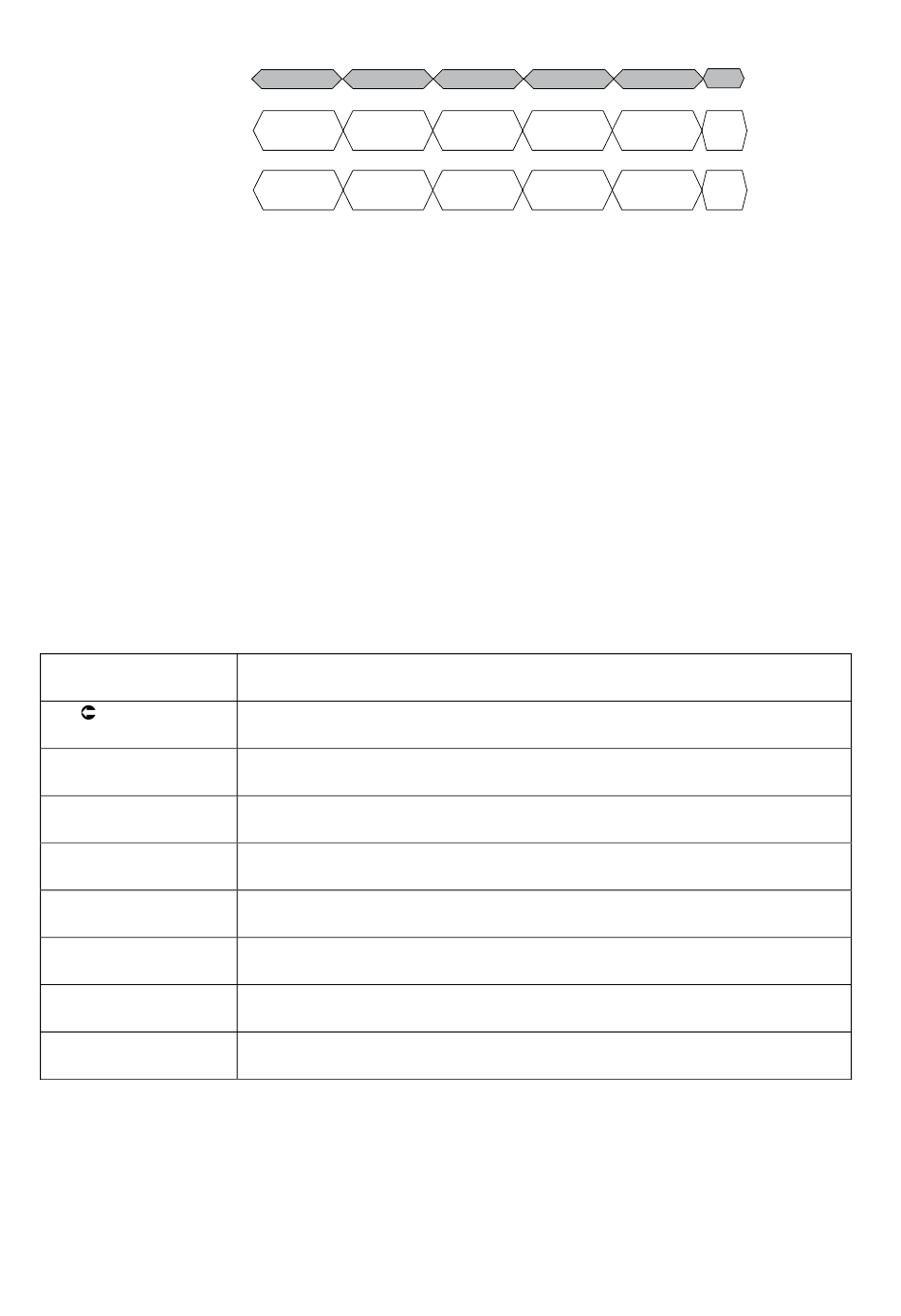

Figure 50: Video Data Output by DPP in 4:2:2 Pass Through Mode

7.22 Color Space Information Sent to the DPP and CP Sections

The HDMI section sends information regarding the color space of the video it outputs to the DPP and
the CP sections. This color space information is derived from the DVI/HDMI status of the input
stream the HDMI stection processes and from the AVI InfoFrame that the HDMI section decodes
from the input stream.
The color space information sent by the HDMI section to the DPP and CP sections can be read via
the HDMI_COLORSPACE.
HDMI_COLORSPACE, HDMI Map, Address 0x53, [2:0]
This control selects the linear or interpolated 4:2:2 to 4:4:4 conversion performed in the HDMI
section.
Function
HDMI_COLORSPA
CE
000
001
010
011
100
101
110
111
Rev. F August 2010
Y / Cb Y / Cr
0 0 0
Y
Bit 12-0 Y
0
Cr
Bit 12-0 Cb
0
Description
The color space of the video data output by the HDMI section is RGB
with range 16-235
The color space of the video data output by the HDMI section is RGB
with range 0-255
The color space of the video data output by the HDMI section is YCbCr
601 with range 16-235
The color space of the video data output by the HDMI section is YCbCr
709 with range 16-235
The color space of the video data output by the HDMI section is xvYCC
601
The color space of the video data output by the HDMI section is xvYCC
709
The color space of the video data output by the HDMI section is YCbCr
601 with range 0-255
The color space of the video data output by the HDMI section is YCbCr
709 with range 0-255
Y / Cb Y
0 0 2 0
Y
1 2
Cb
0 2
183
...
/ Cr Y / Cb
2 0 4
Y Y ...
3 4
...
Cr Cb
2 4
ADV7604
