Figure 29: Overall Gain Of Equalizer Process - Analog Devices Advantiv ADV7604 Hardware Manual

EQ_DYN1_LF[7:0], EQ Dynamic LF Range1, HDMI Map, Address 0x8D, [7:0]
Function
EQ_DYN1_LF[7:0]
00011000
xxxxxxxx
EQ_DYN1_HF[7:0], EQ Dynamic HF Range1, HDMI Map, Address 0x8E, [7:0]
Function
EQ_DYN1_HF[7:0]
00110100
xxxxxxxx
EQ_DYN2_LF[7:0], EQ Dynamic LF Range2, HDMI Map, Address 0x90, [7:0]
Function
EQ_DYN2_LF[7:0]
10100000
xxxxxxxx
EQ_DYN2_HF[7:0], EQ Dynamic HF Range2, HDMI Map, Address 0x91, [7:0]
Function
EQ_DYN2_HF[7:0]
00110000
xxxxxxxx
EQ_DYN3_LF[7:0], EQ Dynamic LF Range3, HDMI Map, Address 0x93, [7:0]
Function
EQ_DYN3_LF[7:0]
10001000
xxxxxxxx
Rev. F August 2010

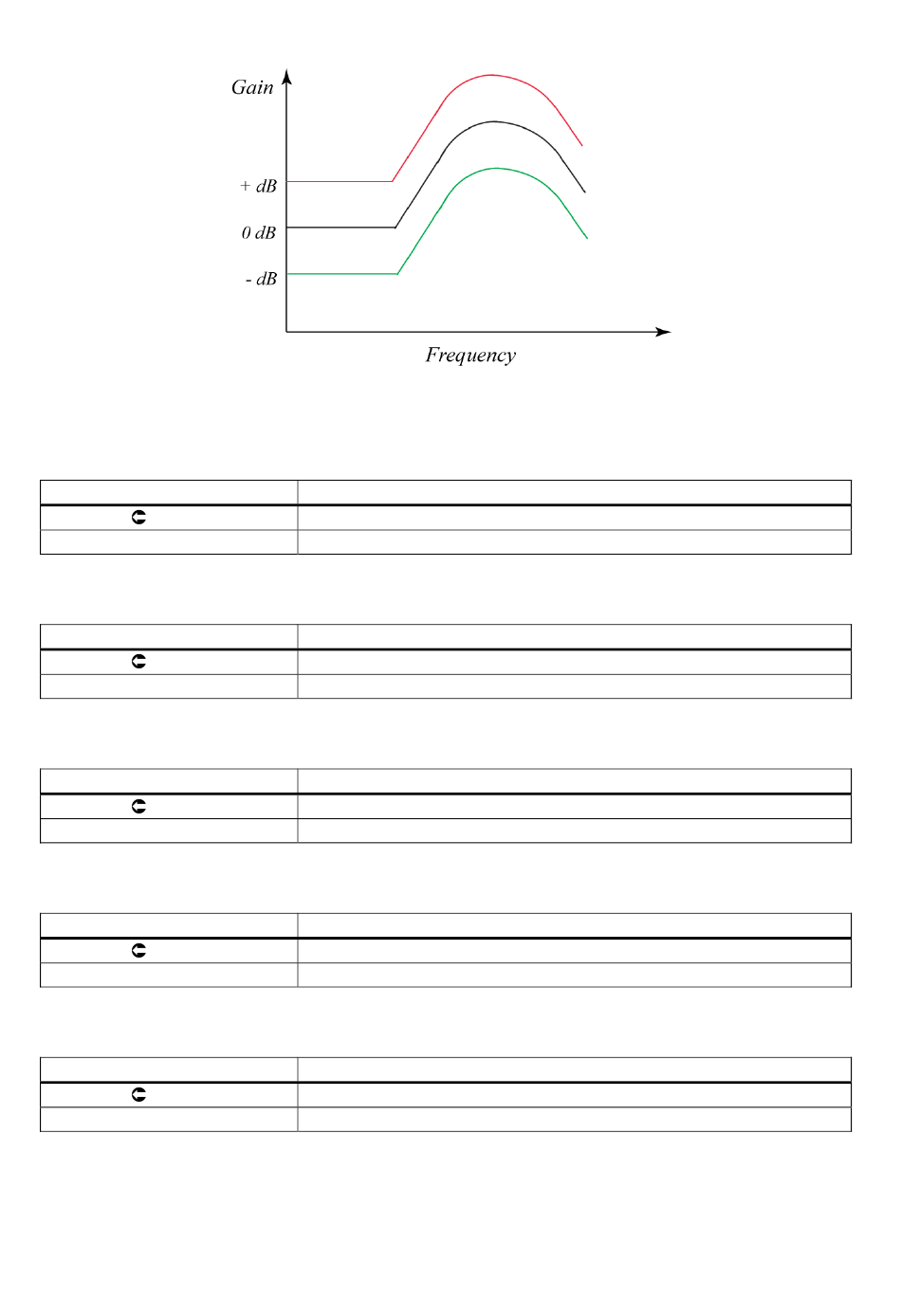

Figure 29: Overall Gain of Equalizer Process

Description
Default LF gain equalizer settings for dynamic mode range 1
LF gain equalizer settings for dynamic mode range 1
Description
Default HF gain equalizer settings for dynamic mode range 1
HF gain equalizer settings for dynamic mode range 1
Description
Default LF gain equalizer settings for dynamic mode range 2
LF gain equalizer settings for dynamic mode range 2
Description
Default HF gain equalizer settings for dynamic mode range 2
HF gain equalizer settings for dynamic mode range 2
Description
Default LF gain equalizer settings for dynamic mode range 3
LF gain equalizer settings for dynamic mode range 3
109
ADV7604
