• Section 5: The CP core outputs the following signals to the output formatter section:
HS with negative polarity
VS with negative polarity
DE with negative polarity
Note that the CP core generates the DE signal for analog input. In HDMI mode, the
CP core regenerates the DE signal from the DE output by the HDMI receiver section.
• Section 6: The output formatter outputs the synchronization signal through the pins as
follows:
HS with positive polarity only if INV_HS_POL is set to 1
VS with positive polarity only if INV_VS_POL is set to 1
DE with positive polarity only if INV_F_POL is set to 1
Analog
Input
HDMI
Input
INV_HS_POL, IO Map, Address 0x06, [1]
Function
INV_HS_POL
0
1
INV_VS_POL, IO Map, Address 0x06, [2]
Function
INV_VS_POL
0
1
INV_F_POL, IO Map, Address 0x06, [3]
Function
INV_F_POL
0
1
Rev. F August 2010
sync
selection
HS/CS,VS
AFE
1
2
HDMI
HS/CS,VS
sync
selection

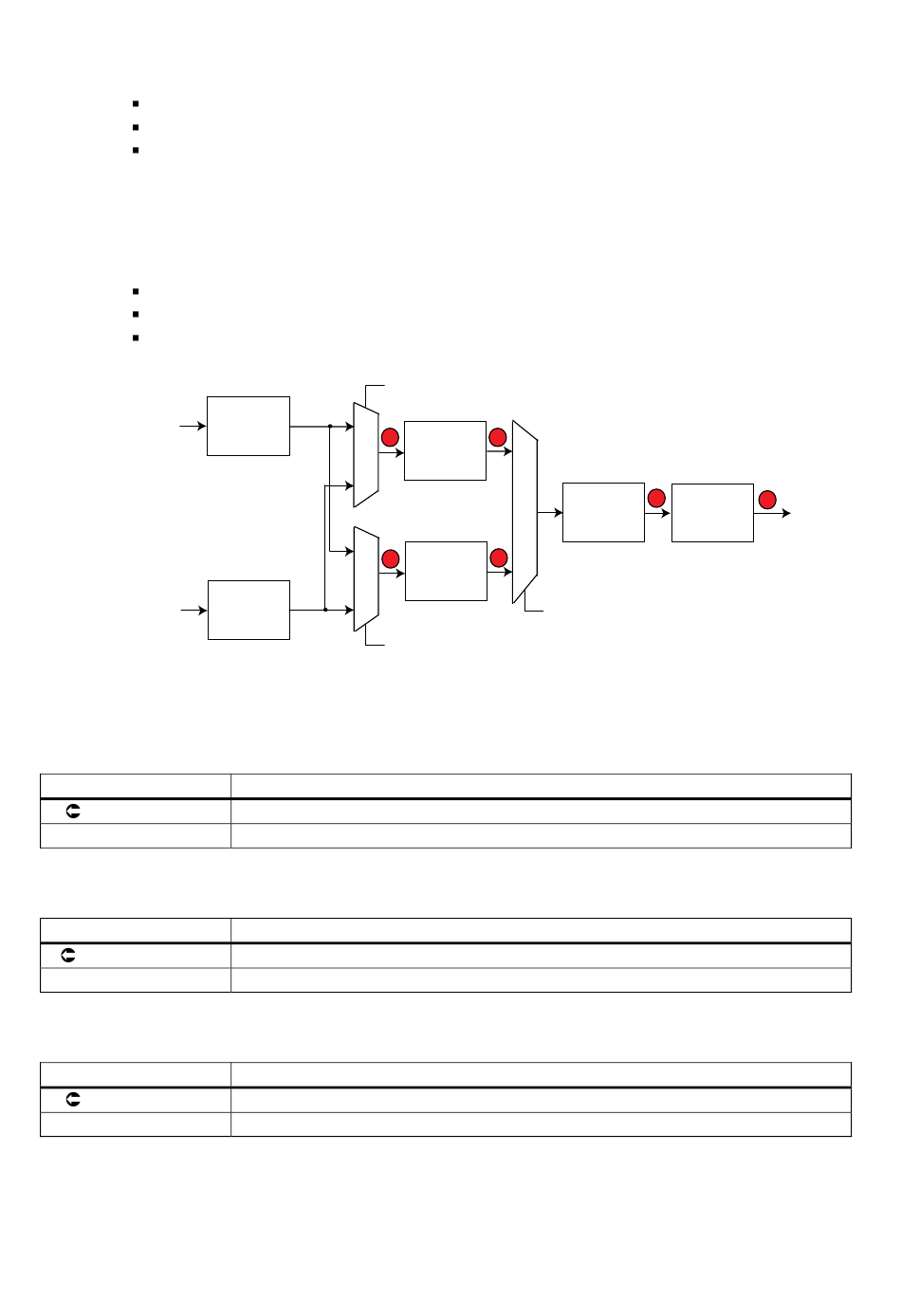

Figure 6: Synchronization Path

Description
Negative polarity
Positive polarity
Description
Negative polarity
Positive polarity
Description
Negative polarity
Positive polarity
3
SSPD CH1
4
SSPD CH2
channel
selection
43
5
OUTPUT
CP
FORMATTER
ADV7604
6
