VACON® 3000
Application Guide
Reference-
potentio-
meter
1...10 kΩ
mA
RUN
FAULT

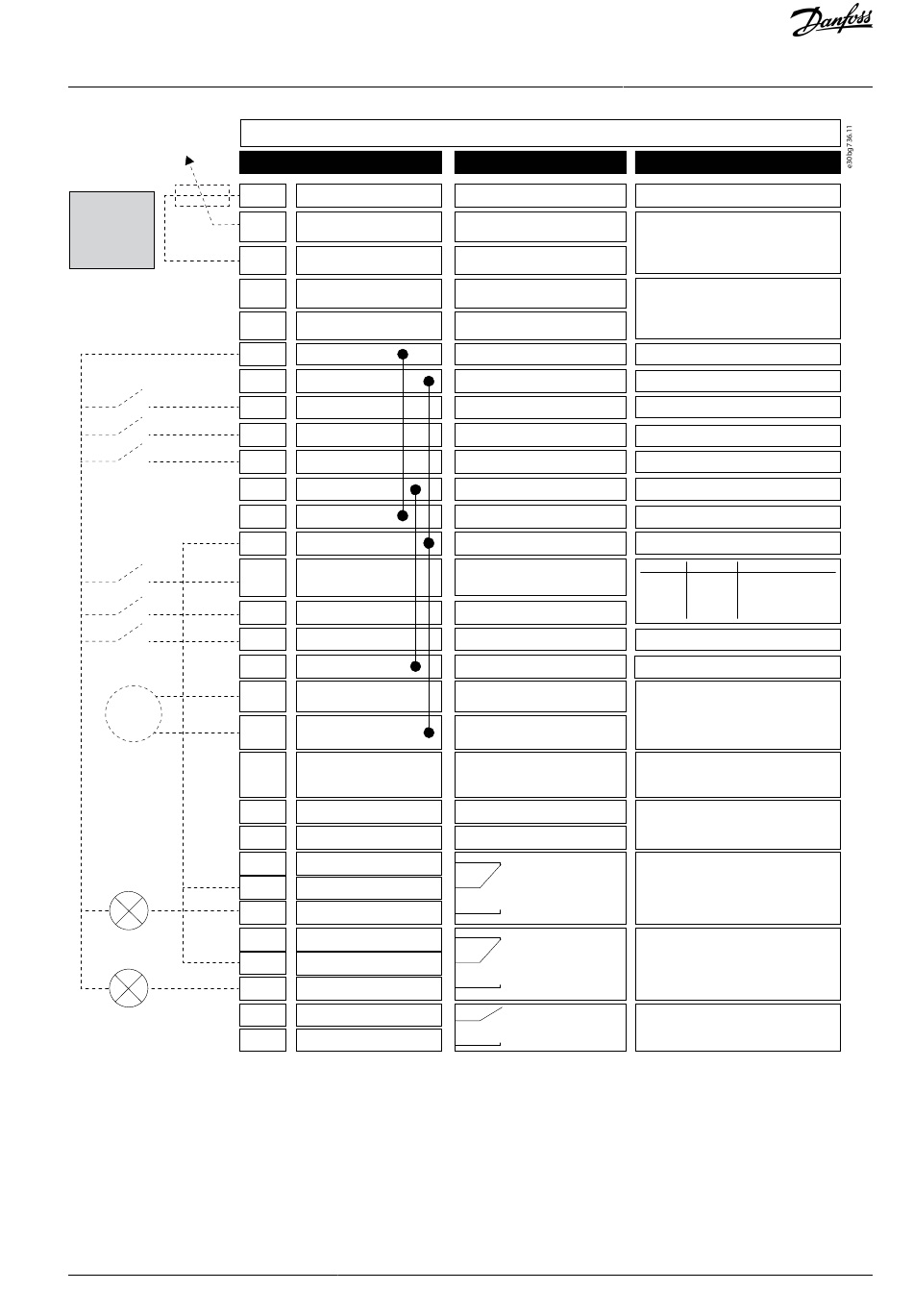

Illustration 10: The Default Control Connections of the INU Application

4.2 Menu Structure

The data of the AC drive is in menus and submenus. To move between the menus, use the arrow buttons Up and Down in the
keypad. To go into a group or an item, push the [OK] button. To go back to the previous level, push the [BACK/RESET] button.
The display shows the current location in the menu, for example M3.2.1, and the name of the group or item.
Danfoss A/S © 2021.09
Terminal
+10Vref
1
2
AI1+
AI1-
3
AI2+
4
AI2-
5
6 24Vout
7 GND
8 DI1
9 DI2
10 DI3
11 CM
24Vout
12
13 GND
14 DI4
15 DI5
16 DI6
17 CM
18 AO1+
19 AO1-
30 +24Vin
A RS485
B RS485
21 RO1/1 NC
22 RO1/2 CM
23 RO1/3 NO
24 RO2/1 NC
25 RO2/2 CM
26 RO2/3 NO
32
RO3/2 CM
33 RO3/3 NO
Standard I/O board
Signal
Reference output
Analog input 1+
Analog input 1-
Analog input 2+
Analog input 2-
24 V auxiliary voltage
I/O ground
Digital input 1
Digital input 2
Digital input 3
Common for DI1-DI6
24 V auxiliary voltage
I/O ground
Digital input 4
Digital input 5
Digital input 6
Common for DI1–DI6
Analog output 1+
Analog output 1-
24 V auxiliary
input voltage
Serial bus, negative
Serial bus, positive
Relay output 1
Relay output 2
Relay output 3
AB319735759636en-000101 / DPD01822 | 31
INU Application
Description
Frequency reference
(default 0...10 V)
Frequency reference
(Default 4...20 mA)
Start forward
Start reverse
External fault
DI4 DI5 Freq. ref.
Open Open Analog input 1
Closed Open Preset Freq. 1
Open Closed Preset Freq. 2
Closed Closed Preset Freq. 3
Fault reset
Output
frequency
(0...20 mA)
Modbus RTU,
N2, BACnet
RUN
FAULT
READY
