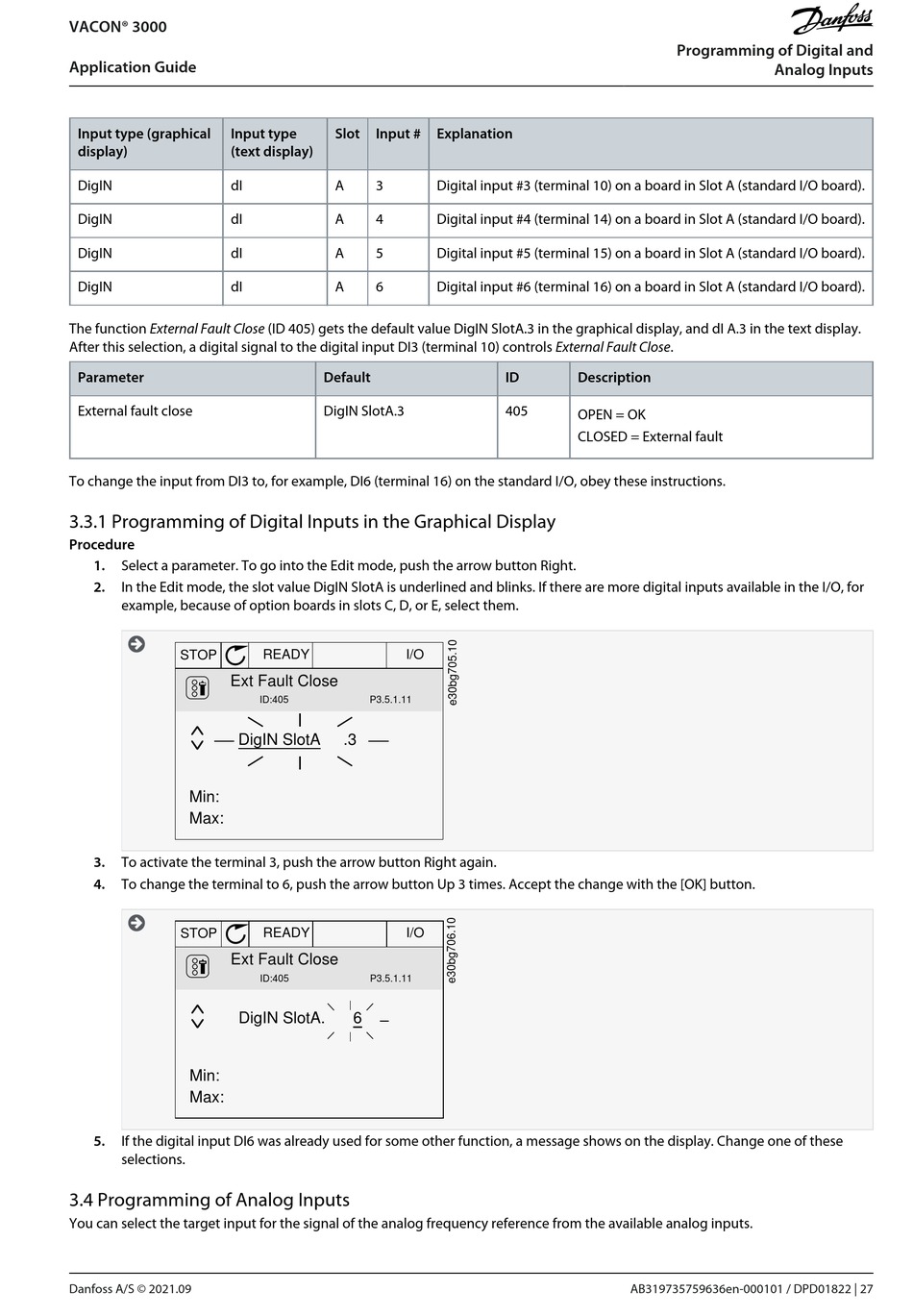

VACON® 3000
Application Guide
Input type (graphical
Input type
display)
(text display)
DigIN
dI
DigIN
dI
DigIN
dI
DigIN
dI
The function External Fault Close (ID 405) gets the default value DigIN SlotA.3 in the graphical display, and dI A.3 in the text display.
After this selection, a digital signal to the digital input DI3 (terminal 10) controls External Fault Close.
Parameter
External fault close
To change the input from DI3 to, for example, DI6 (terminal 16) on the standard I/O, obey these instructions.
3.3.1 Programming of Digital Inputs in the Graphical Display
Procedure
1.
Select a parameter. To go into the Edit mode, push the arrow button Right.
2.
In the Edit mode, the slot value DigIN SlotA is underlined and blinks. If there are more digital inputs available in the I/O, for
example, because of option boards in slots C, D, or E, select them.
STOP
Ext Fault Close
DigIN SlotA
Min:
Max:
3.
To activate the terminal 3, push the arrow button Right again.
4.
To change the terminal to 6, push the arrow button Up 3 times. Accept the change with the [OK] button.
STOP
Ext Fault Close
DigIN SlotA.
Min:
Max:
5.
If the digital input DI6 was already used for some other function, a message shows on the display. Change one of these
selections.
3.4 Programming of Analog Inputs
You can select the target input for the signal of the analog frequency reference from the available analog inputs.
Danfoss A/S © 2021.09
Slot
Input #
A
3
A
4
A
5
A
6
Default
DigIN SlotA.3
READY
I/O
ID:405
P3.5.1.11
.3
READY
I/O
ID:405
P3.5.1.11
6
Explanation
Digital input #3 (terminal 10) on a board in Slot A (standard I/O board).
Digital input #4 (terminal 14) on a board in Slot A (standard I/O board).
Digital input #5 (terminal 15) on a board in Slot A (standard I/O board).
Digital input #6 (terminal 16) on a board in Slot A (standard I/O board).
ID
Description
405
OPEN = OK
CLOSED = External fault
Programming of Digital and
Analog Inputs
AB319735759636en-000101 / DPD01822 | 27
