VACON® 3000
Application Guide
Use this parameter to select the torque reference.
When the parameter P3.1.2.1 (Control Mode) is set to Torque control open loop, the motor torque is controlled. The motor speed
changes to agree with the actual load on the motor shaft.
The torque reference is scaled between the values of P3.3.2.2. and P3.3.2.3. When using a fieldbus protocol where the torque refer-
ence can be given in Nm units, set ProcessDataIn1 as the value to this parameter.
P Torque Ref Source
Select
Select
V Not Used
IN0
P Keypad Torq Ref
IN1
I/O Joystick
IN2
I/O AI1 IN3
I/O
AI2
IN4
I/O AI3
IN5
I/O AI4
IN6
I/O AI5 IN7
I/O IN8
AI6
FB
Process Data In1 IN9
FB Process Data In2 IN10
Process Data In3
FB
IN11
FB Process Data In4
IN12
FB IN13
Process Data In5
FB
Process Data In6 IN14
FB IN15
Process Data In7
FB Process Data In8
IN16
V IN17
Block1
V Block2 IN18
V Block3 IN19
V IN20
Block4
V
Block5 IN21

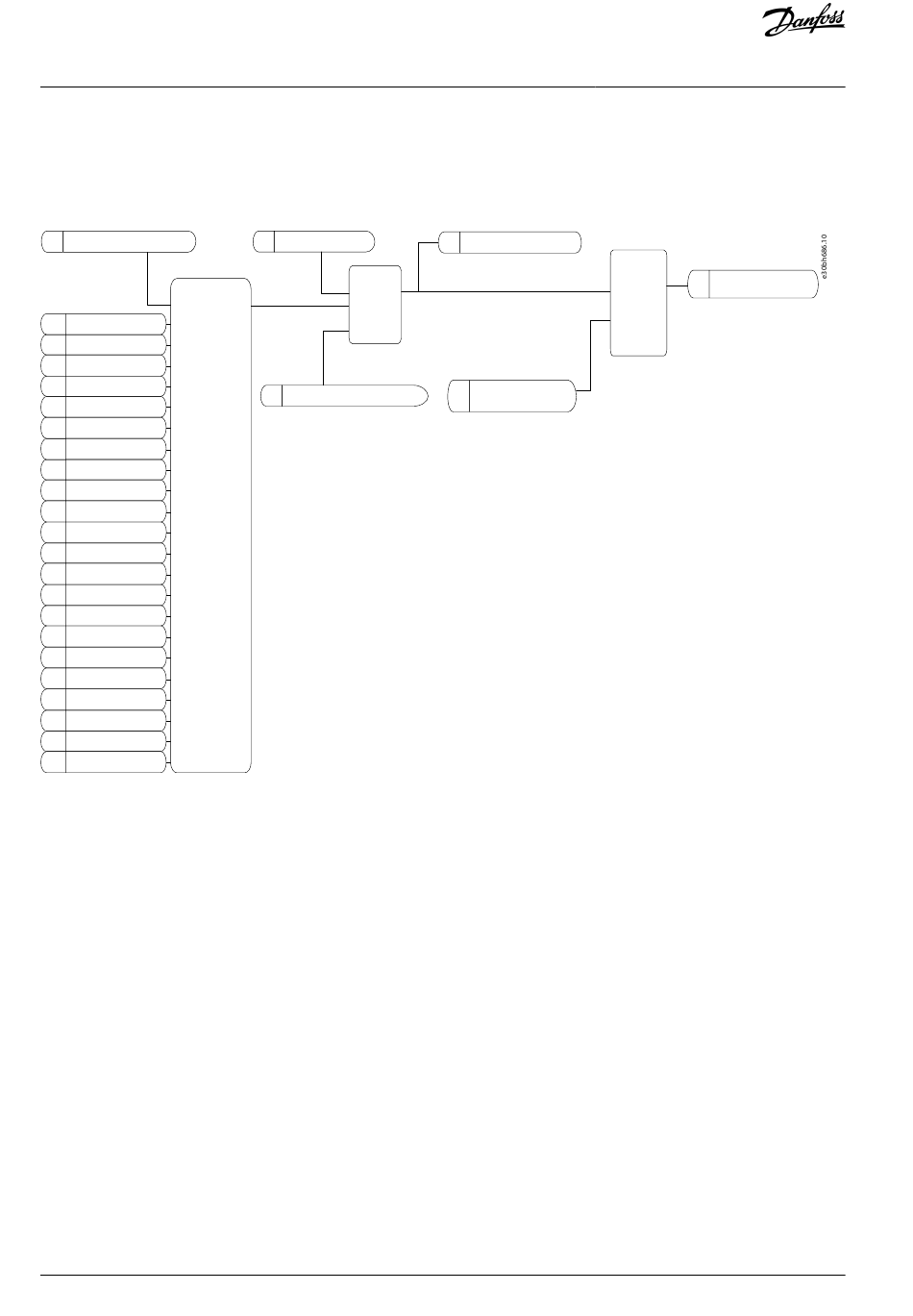

Illustration 34: The Torque Reference Chain Diagram
7.131 (ID 642) Torque Maximum Reference
Location in the menu:
• INU application: P3.3.2.3
Use this parameter to set the maximum torque reference of the positive and negative values.
These parameters define the scaling of selected torque reference signal. For instance, the analog input signal is scaled between the
Torque Reference Minimum and the Torque Reference Maximum.
192 | Danfoss A/S © 2021.09
P Torq Ref Min
SCALE
MIN
OUT
IN
MAX
P Torq Ref Max
M Torque Reference
IN
TC
P Torq Ref Filt Time
Parameter descriptions
FILTER
Final Torque
M
Reference
