3 Programming of Digital and Analog Inputs

3.1 General Information on the Programming

The programming of inputs of the AC drive is flexible. It is possible to use freely the available inputs of the standard and optional I/O
for different functions.
It is possible to expand the available capacity of I/O with option boards. It is possible to install the option boards in the slots C, D,
and E. For more data on the installation of option boards, see the Installation Guide.
A.1 A.2
1 2 3 4
Slot A
G
21 22 23 24 25 26 33 34
Slot B

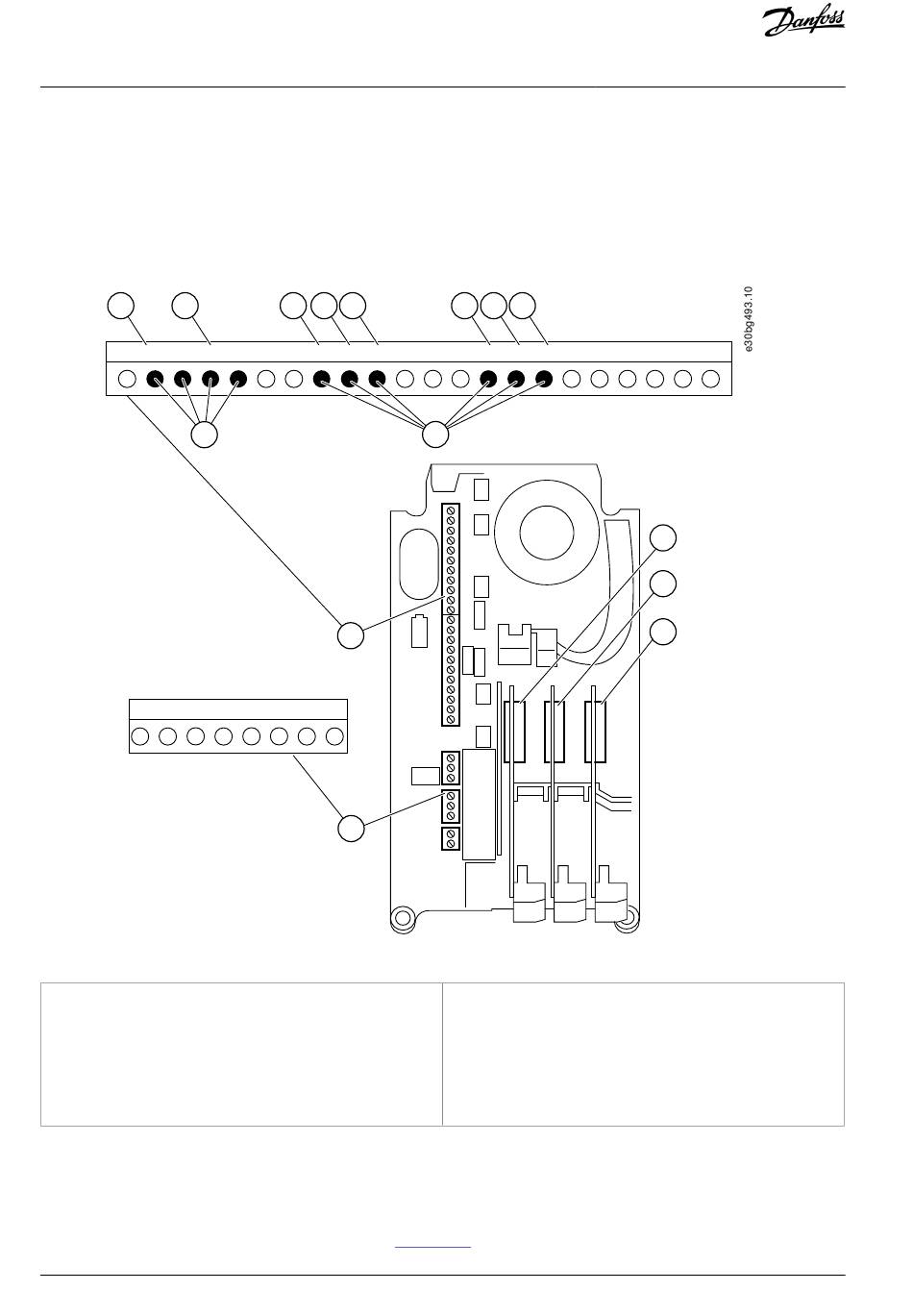

Illustration 5: The Option Board Slots and Programmable Inputs
A Standard board slot A and its terminals
B Standard board slot B and its terminals
C Option board slot C
D Option board slot D

3.2 DIP Switches on the Control Unit

3.2.1 Selection of Terminal Functions with DIP Switches

Two selections for specified terminals can be done with the DIP switches. The switches have two positions: up and down. See the
location of the DIP switches and the possible selections in
24 | Danfoss A/S © 2021.09
A.1
A.2 A.3
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 30 A B
A
B
Illustration
A.4 A.5 A.6
F
E Option board slot E
F Programmable digital inputs (DI)
G Programmable analog inputs (AI)
6.
Programming of Digital and
Analog Inputs
C
D
E
