VACON® 3000
Application Guide
A B C D
STOP READY
Main Menu
ID:
Quick Setup
( 17 )
Monitor
( 5 )
Parameters
( 12 )

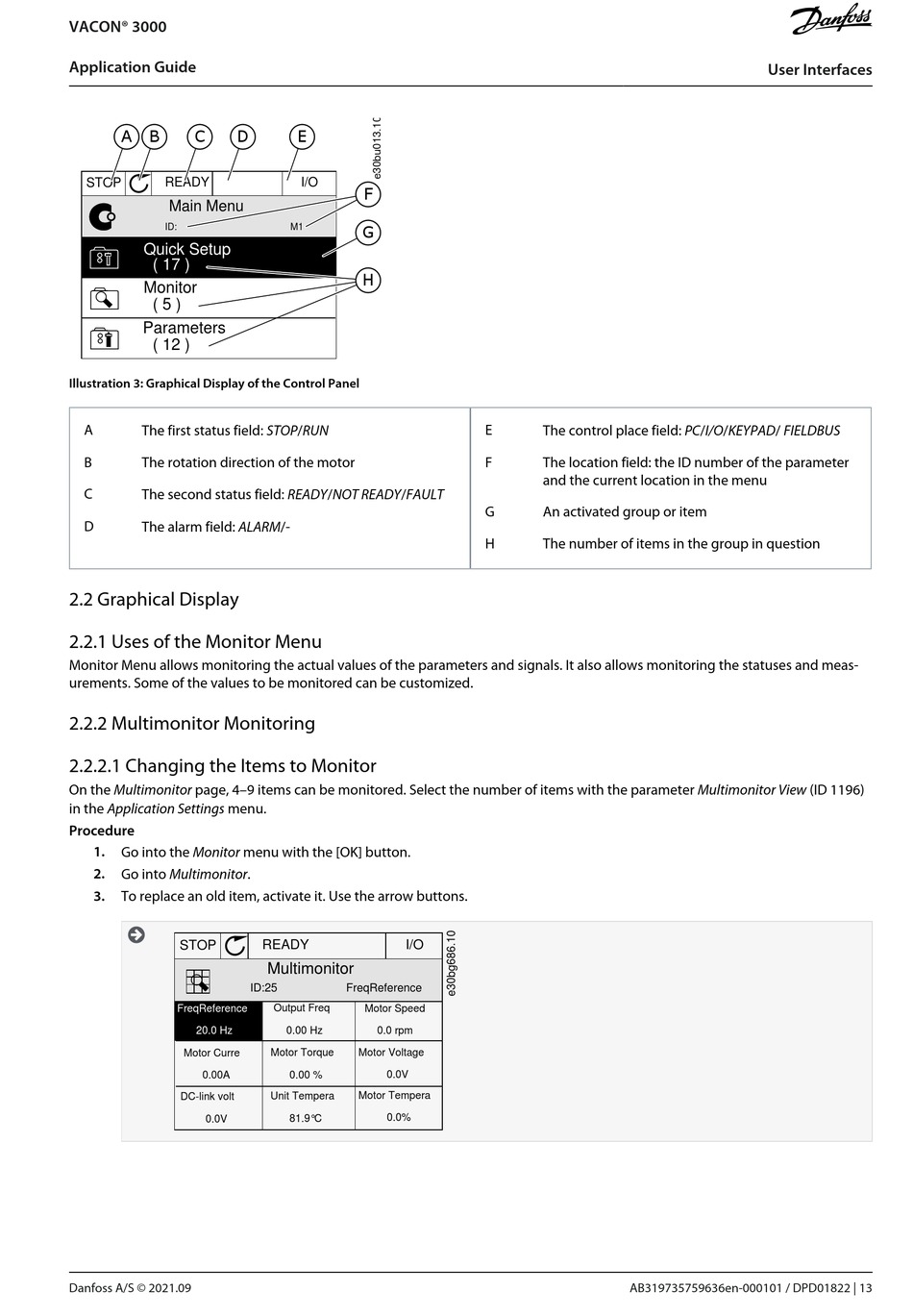

Illustration 3: Graphical Display of the Control Panel
A
The first status field: STOP/RUN
B The rotation direction of the motor
C
The second status field: READY/NOT READY/FAULT
D The alarm field: ALARM/-

2.2 Graphical Display

2.2.1 Uses of the Monitor Menu

Monitor Menu allows monitoring the actual values of the parameters and signals. It also allows monitoring the statuses and meas-
urements. Some of the values to be monitored can be customized.

2.2.2 Multimonitor Monitoring

2.2.2.1 Changing the Items to Monitor

On the Multimonitor page, 4–9 items can be monitored. Select the number of items with the parameter Multimonitor View (ID 1196)
in the Application Settings menu.
Procedure
1.
Go into the Monitor menu with the [OK] button.
2.
Go into Multimonitor.
3.
To replace an old item, activate it. Use the arrow buttons.

STOP
FreqReference
20.0 Hz
Motor Curre
0.00A
DC-link volt
0.0V
Danfoss A/S © 2021.09
E
I/O
F
G
M1
H
READY I/O
Multimonitor
ID:25 FreqReference
Output Freq Motor Speed
0.00 Hz 0.0 rpm
Motor Torque Motor Voltage
0.00 % 0.0V
Motor Tempera
Unit Tempera
0.0%
81.9°C
E
The control place field: PC/I/O/KEYPAD/ FIELDBUS
F The location field: the ID number of the parameter
and the current location in the menu
G An activated group or item
H The number of items in the group in question
AB319735759636en-000101 / DPD01822 | 13
User Interfaces
