VACON® 3000
Application Guide

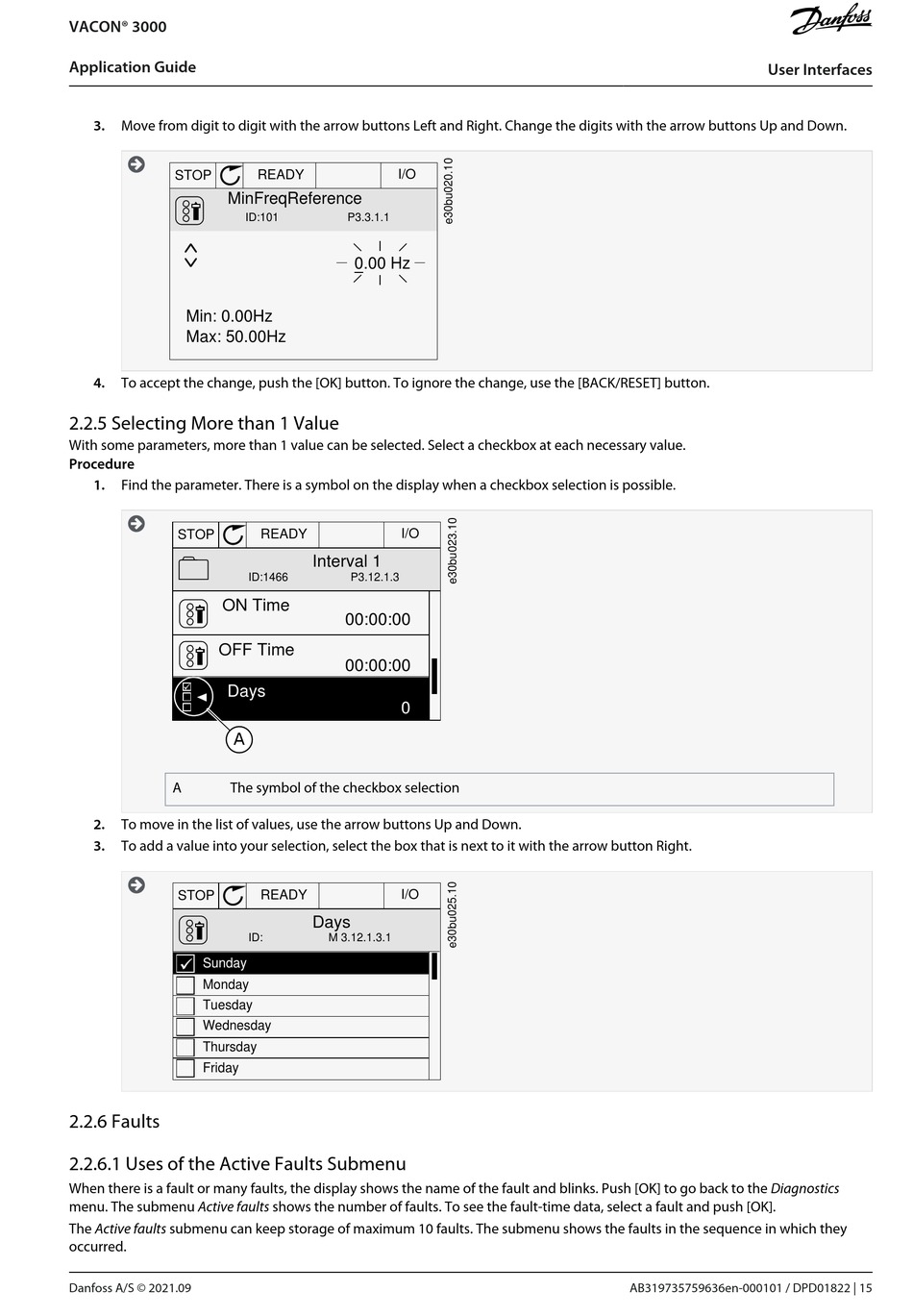

3. Move from digit to digit with the arrow buttons Left and Right. Change the digits with the arrow buttons Up and Down.

STOP
MinFreqReference
Min: 0.00Hz
Max: 50.00Hz
4. To accept the change, push the [OK] button. To ignore the change, use the [BACK/RESET] button.

2.2.5 Selecting More than 1 Value

With some parameters, more than 1 value can be selected. Select a checkbox at each necessary value.
Procedure
1. Find the parameter. There is a symbol on the display when a checkbox selection is possible.

STOP
ON Time
OFF Time
Days
A
A The symbol of the checkbox selection
2. To move in the list of values, use the arrow buttons Up and Down.
3.
To add a value into your selection, select the box that is next to it with the arrow button Right.

STOP
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday

2.2.6 Faults

2.2.6.1 Uses of the Active Faults Submenu

When there is a fault or many faults, the display shows the name of the fault and blinks. Push [OK] to go back to the Diagnostics
menu. The submenu Active faults shows the number of faults. To see the fault-time data, select a fault and push [OK].
The Active faults submenu can keep storage of maximum 10 faults. The submenu shows the faults in the sequence in which they
occurred.
Danfoss A/S © 2021.09
READY I/O
ID:101 P3.3.1.1
0.00 Hz
I/O
READY
Interval 1
ID:1466 P3.12.1.3
00:00:00
00:00:00
0
I/O
READY
Days
ID: M 3.12.1.3.1
User Interfaces
AB319735759636en-000101 / DPD01822 | 15
