VACON® 3000
Application Guide
1 Introduction
1.1 Purpose of this Application Guide
This Application Guide provides information for configuring the system, controlling the AC drive, accessing parameters, program-
ming, and troubleshooting of the AC drive. It is intended for use by qualified personnel. Read and follow the instructions to use the
drive safely and professionally. Pay particular attention to the safety instructions and general warnings that are provided in this
manual and other documentation delivered with the drive.
1.2 Manual and Software Version
This manual is regularly reviewed and updated. All suggestions for improvement are welcome.
The original language of this manual is English.
Table 1: Manual and Software Version
Edition
DPD01822A
1.3 Additional Resources
Other resources are available to understand advanced AC drive functions and operation.
•
The VACON® 3000 Design Guide provides technical information to understand the capabilities of the VACON® 3000 Drive Kit for
integration into motor control and monitoring systems.
•
The VACON® 3000 Operating Guides provide detailed information for the installation, commissioning, and start-up of the drive.
•
The operating and installation guides for VACON
Supplementary publications and manuals are available from Danfoss. See
1.4 Parameter Table Reading Guide
This manual includes a large quantity of parameter tables. These instructions tell you how to read the tables.
A
B
Index
Parameter

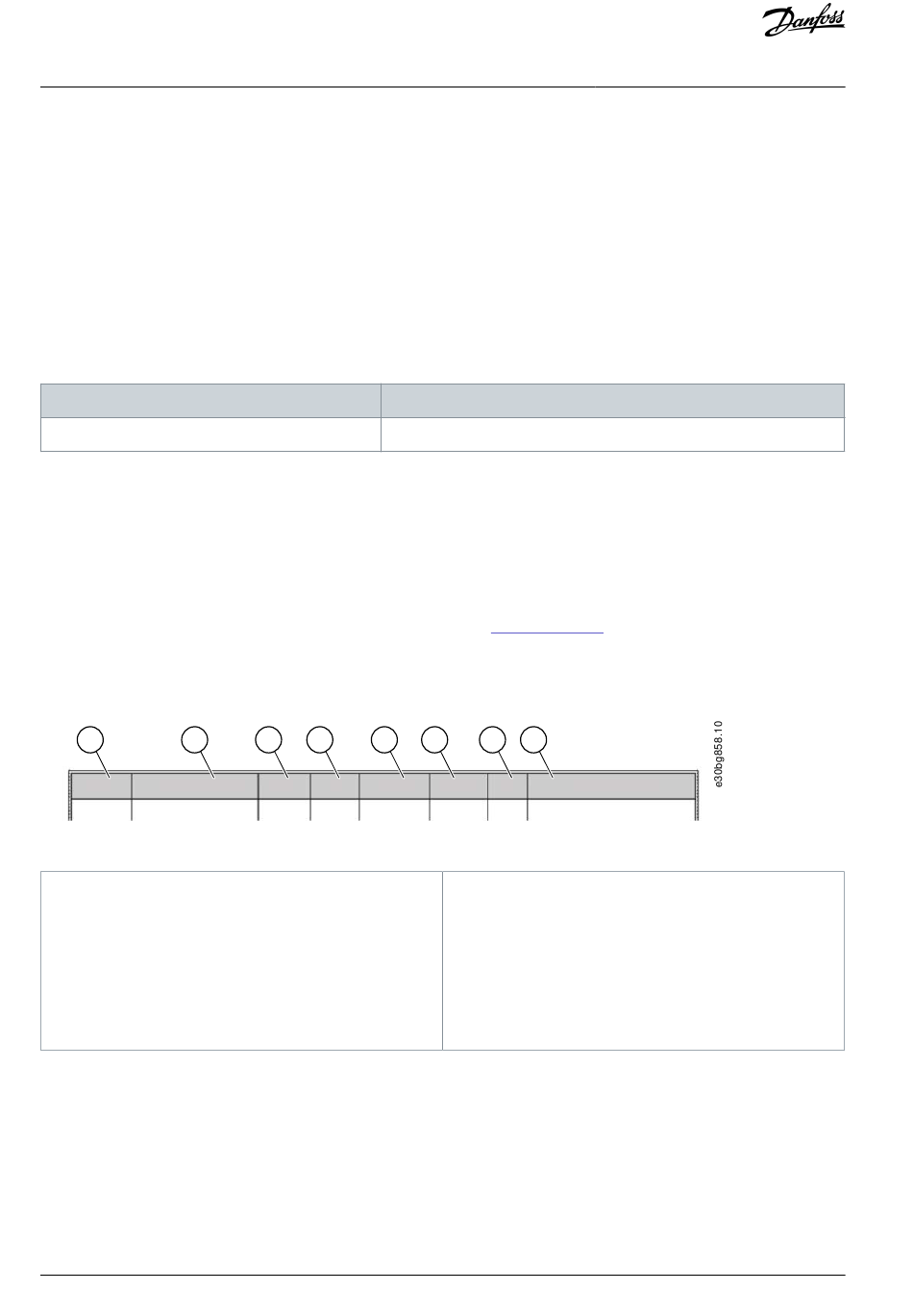

Illustration 1: Parameter Table Reading Guide
A
The location of the parameter in the menu, that is,
the parameter number.
B
The name of the parameter.
C
The minimum value of the parameter.
D
The maximum value of the parameter.
1.5 Start-up Quick Guide
The start-up wizard makes the commissioning of the drive easy and reduces the manual work with the parameters. It is also possible
to edit these parameters later.
1.5.1 Start-Up Wizard for INU
The start-up wizard tells you to give necessary data for the drive to control your procedure.
Procedure
10 | Danfoss A/S © 2021.09
Software version
FW3000V004
options give detailed information about specific drive options.
®
C
D
E
F
Min
Max
Unit
www.danfoss.com
for listings.
G
H
Default
ID
Description
E
The unit of the value of the parameter. The unit
shows if it is available.
F
The value that was set in the factory.
G
The ID number of the parameter.
H
A short description of the values of the parameter
and/or its function.
Introduction
AB319735759636en-000101 / DPD01822
