VLT® Midi Drive FC 280
Operating Guide
2.
Press [▵] [▿] to select either QM1 or QM2, then press [OK].
3.
Press [▵] [▿] to browse through the parameters in Quick Menu.
4. Press [OK] to select a parameter.
5.
Press [▵] [▿] to change the value of a parameter setting.
6. Press [OK] to accept the change.
7.
To exit, press either [Back] twice (or 3 times if in QM2 and QM3) to enter Status, or press [Menu] once to enter Main Menu.

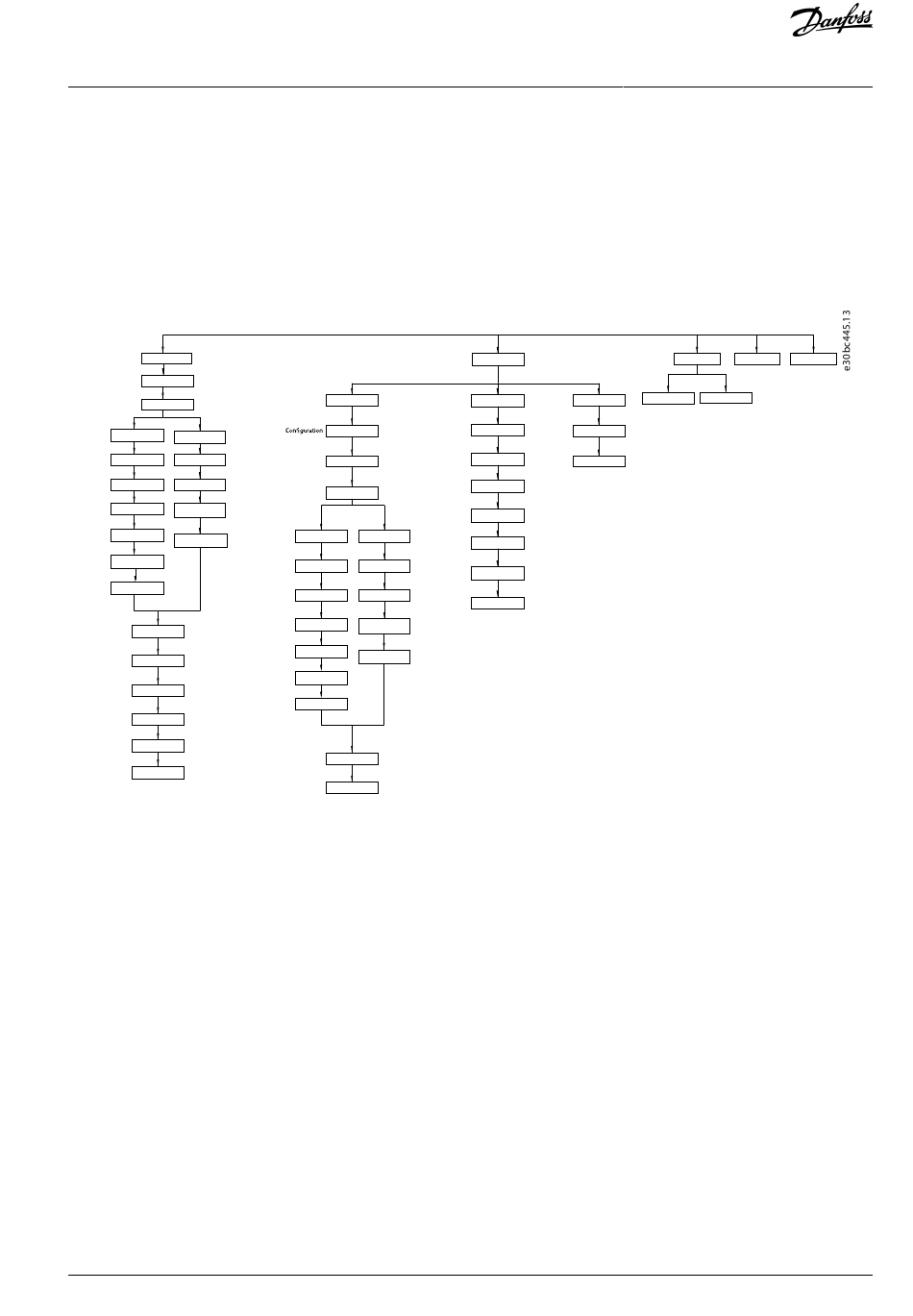

5.3.4.2 Quick Menu Structure

QM 1
0-01 [0]
Language
Motor Type
1-10 [0]
PM motor
Asynchronous motor
Motor current 1-24 XXXX A Motor power
1-20 XXXX kW
Motor
1-25 XXXX 1-22 XXXX V
RPM
nominal Motor voltage
speed
Motor cont.
1-26 XXXX 1-23 XXXX Hz
Motor frequency
rated torque
Stator
1-30 XXXX
1-24 XXXX A Motor current
Resistance (Rs)
1-39 XXXX
Motor poles Motor
1-25 XXXX RPM
nominal
speed
1-40 XXXX
Back EMF at
1000 RPM
1-37 XXXX
d-axis
inductance (Ld)
3-02 XXXX Hz
Minimum reference
3-03 XXXX Hz
Maximum reference
3-41 XXXX S Ramp 1 ramp-up time
3-42 XXXX S
Ramp 1 ramp-down time
5-12 [2]
Terminal 27 digital input
1-29 [1]
AMA
Illustration 25: Quick Menu Structure

5.3.5 Main Menu on NLCP

5.3.5.1 Operating Main Menu

The Main Menu gives access to all parameters.
Procedure
1.
To enter Main Menu, press [Menu] until the indicator in the display is placed above Main Menu.
2. [▵] [▿]: Browse through the parameter groups.
3.
Press [OK] to select a parameter group.
4. [▵] [▿]: Browse through the parameters in the specific group.
5.
Press [OK] to select the parameter.
6. [▹] and [▵] [▿]: Set/change the parameter value.
7.
Press [OK] to accept the value.
8.
To exit, press either [Back] twice (or 3 times for array parameters) to enter Main Menu, or press [Menu] once to enter Status.
Danfoss A/S © 2022.02
Basic motor set-up
BMS
1-00 [0]
mode
Motor control
1-01 [1]
principle
Motor type
1-10 [0]
PM motor Asynchronous motor
Motor
1-24 XXXX A 1-20 XXXX kW
Motor power
current
Motor
1-25 XXXX 1-22 XXXX V
RPM Motor voltage
nominal
speed
Motor cont.
1-26 XXXX 1-23 XXXX Hz
Motor frequency
rated torque
Stator
1-30 XXXX
1-24 XXXX A Motor current
Resistance (Rs)
Motor poles 1-39 XXXX Motor
1-25 XXXX
RPM nominal
speed
Back EMF at
1-40 XXXX
1000 RPM
1-37 XXXX
d-axis
inductance (Ld)
4-19 XXXX Hz
Maximum output frequency
4-14 XXXX Hz
Motor speed high limit [Hz]
QM 2 Changes made
Adv. motor set-up Encoder set-up
ES
AMS
Stator Terminal 32/33
1-30 XXXX
5-70 XXXX
Resistance (Rs) pulses per revolution
Terminal 32/33
1-39 XXXX
Motor poles
5-71 [0]
encoder direction
Motor thermal
1-90 [0]
protection
2-10 [0]
Brake function
4-16 XXXX %
Torque limit motor mode
4-17 XXXX % Torque limit generator mode
4-18 XXXX %
Current limit
AQ381425076031en-000101 / 130R1223 | 39
Commissioning
QM 3 QM 4 QM 5
Alarm log TBD
SFS
L10C
Last 10 changes Since factory setting
