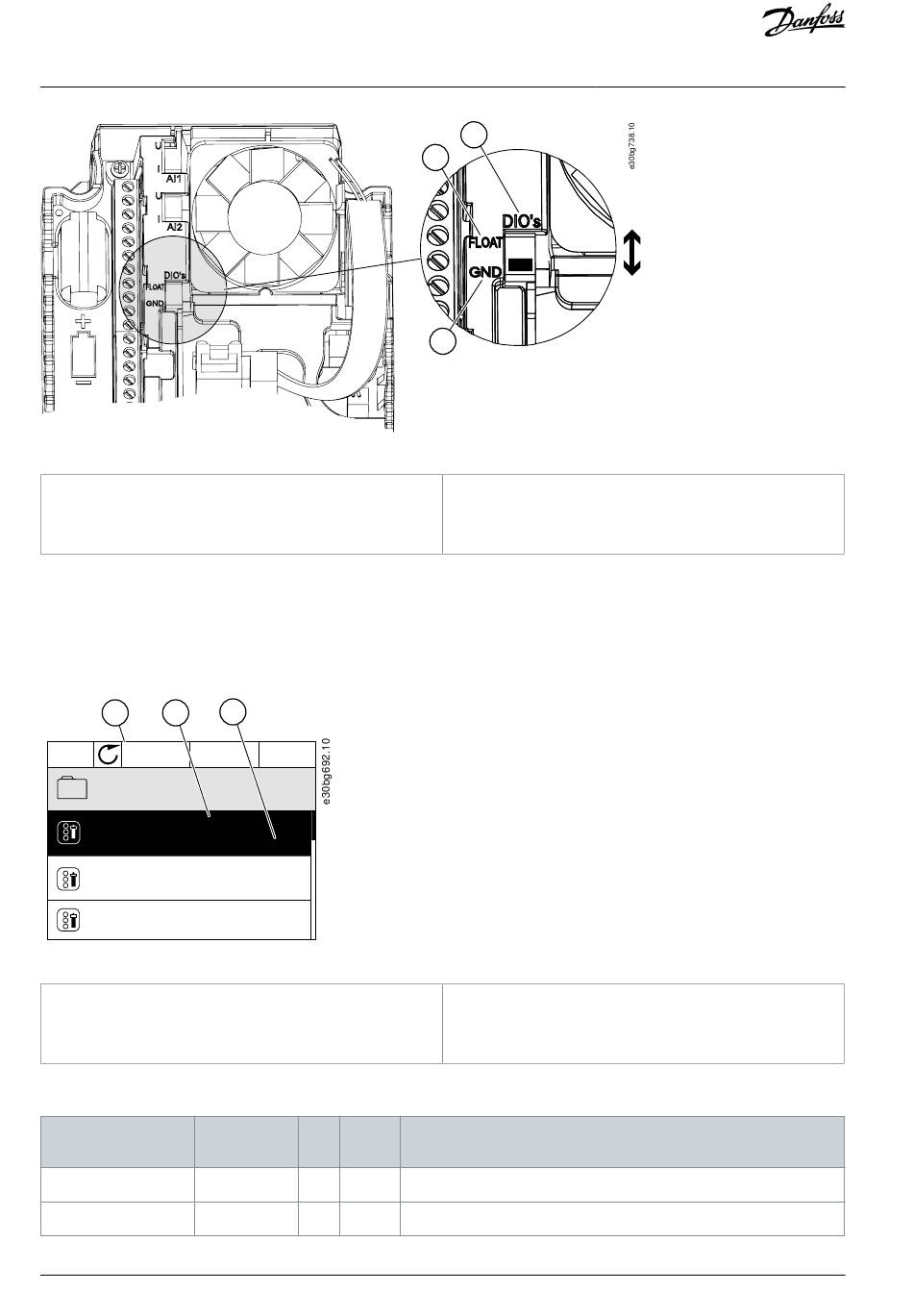

Illustration 7: Change the Position of This Switch to Isolate the Digital Inputs from Ground
A The digital inputs
B Floating

3.3 Programming of Digital Inputs

The digital input parameters are functions that you can connect to a digital input terminal. The text DigIn Slot A.2 means the second
input on the slot A. It is also possible to connect the functions to time channels. The time channels work as terminals.
You can monitor the statuses of the digital inputs and the digital outputs in the Multimonitoring view.
To give a digital input to a function, set a value to the correct parameter.
A B
READY
STOP
Digital Inputs
ID:405
Ext Fault Close
DigINSlotA.3
Ext Fault Open
DigINSlot0.2
Fault Reset Close
DigINSlotA.6
Illustration 8: The Digital inputs menu in the graphical display
A The graphical display
B The name of the parameter, that is, the function
Example
In the standard I/O board compilation, there are 6 digital inputs available: the slot A terminals 8, 9, 10, 14, 15 and 16.
Input type (graphical Input type
display) (text display)
DigIN dI
DigIN dI
26 | Danfoss A/S © 2021.09
C
I/O
P3.5.1.11
Slot Input #
A 1
A 2
A
B
C
C Connected to ground (default)
C The value of the parameter, that is, the set digital in-
put
Explanation
Digital input #1 (terminal 8) on a board in Slot A (standard I/O board).
Digital input #2 (terminal 9) on a board in Slot A (standard I/O board).
