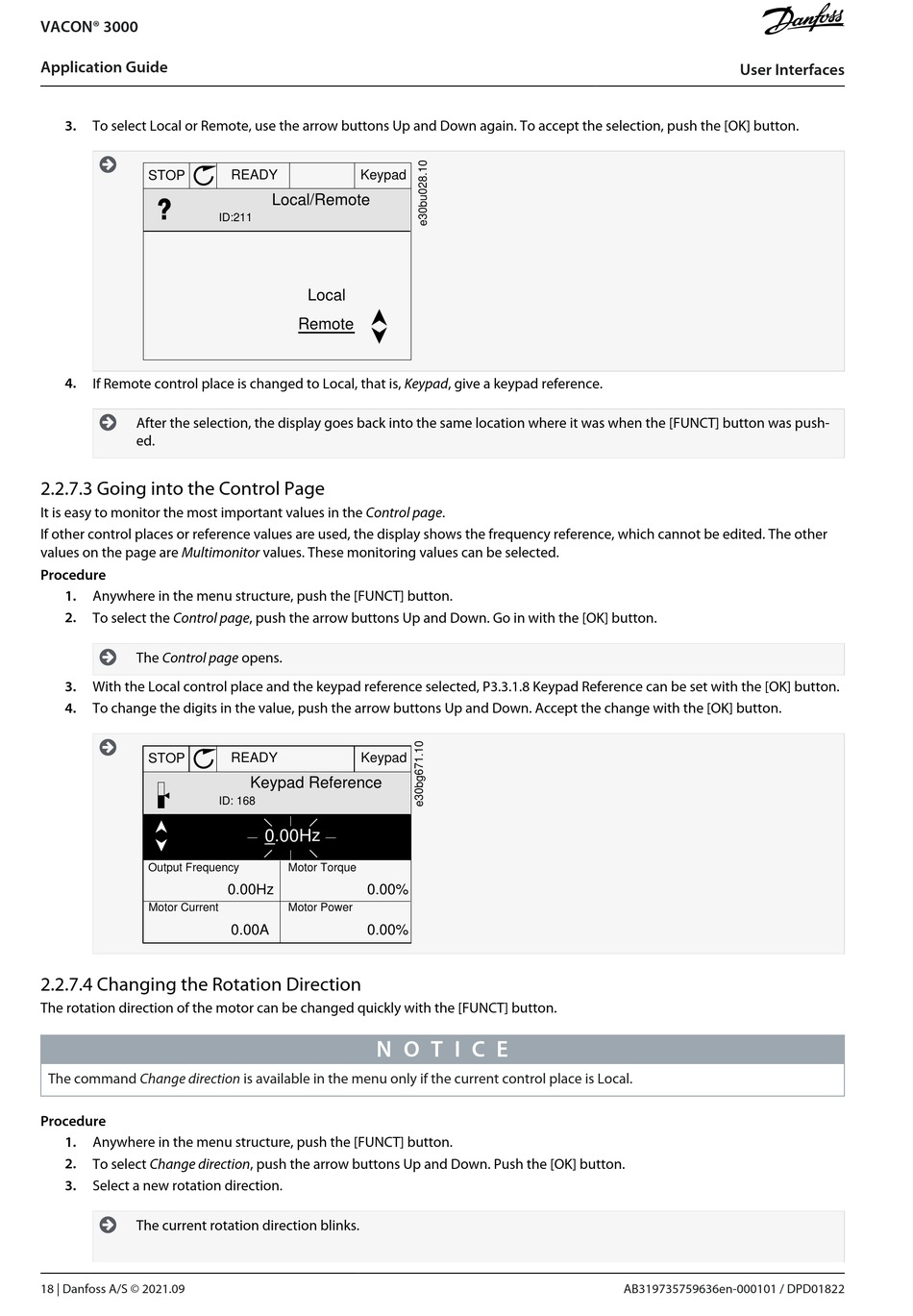

VACON® 3000
Application Guide
3. To select Local or Remote, use the arrow buttons Up and Down again. To accept the selection, push the [OK] button.

STOP
4.
If Remote control place is changed to Local, that is, Keypad, give a keypad reference.

After the selection, the display goes back into the same location where it was when the [FUNCT] button was push-
ed.

2.2.7.3 Going into the Control Page

It is easy to monitor the most important values in the Control page.
If other control places or reference values are used, the display shows the frequency reference, which cannot be edited. The other
values on the page are Multimonitor values. These monitoring values can be selected.
Procedure
1.
Anywhere in the menu structure, push the [FUNCT] button.
2.
To select the Control page, push the arrow buttons Up and Down. Go in with the [OK] button.

The Control page opens.
3. With the Local control place and the keypad reference selected, P3.3.1.8 Keypad Reference can be set with the [OK] button.
4.
To change the digits in the value, push the arrow buttons Up and Down. Accept the change with the [OK] button.

STOP
Output Frequency
Motor Current

2.2.7.4 Changing the Rotation Direction

The rotation direction of the motor can be changed quickly with the [FUNCT] button.
The command Change direction is available in the menu only if the current control place is Local.
Procedure
1. Anywhere in the menu structure, push the [FUNCT] button.
2.
To select Change direction, push the arrow buttons Up and Down. Push the [OK] button.
3.
Select a new rotation direction.

The current rotation direction blinks.
18 | Danfoss A/S © 2021.09
READY Keypad
Local/Remote
ID:211
Local
Remote
READY Keypad
Keypad Reference
ID: 168
0.00Hz
Motor Torque
0.00Hz 0.00%
Motor Power
0.00A 0.00%
N O T I C E
User Interfaces
AB319735759636en-000101 / DPD01822
