Goodrive350-19 series VFD for crane
PRG
ESC
QUICK
JOG
RUN
Parameters displayed in stopped
state

6.4 Operation procedure

You can operate the VFD by using the keypad. For details about function code descriptions, see the
function code list.

6.4.1 Modifying function codes

The VFD provides three levels of menus, including:
• Function code group number (level-1 menu)
• Function code number (level-2 menu)
• Function code setting (level-3 menu)
Note: When performing operations on the level-3 menu, you can press the PRG/ESC or DATA/ENT
key to return to the level-2 menu. If you press the DATA/ENT key, the set value of the parameter is
saved to the control board first, and then the level-2 menu is returned, displaying the next function
code. If you press the PRG/ESC key, the level-2 menu is returned directly, without saving the set
value of the parameter, and the current function code is displayed.
If you enter the level-3 menu but the parameter does not have a digit blinking, the parameter cannot
be modified due to either of the following reasons:
• It is read only. Read-only parameters include actual detection parameters and running record
parameters.
• It cannot be modified in running state and can be modified only in stopped state.
Example: Change the value of P00.01 from 0 to 1.
DATA
ENT
SHIFT
STOP
RST
Parameters displayed in running state

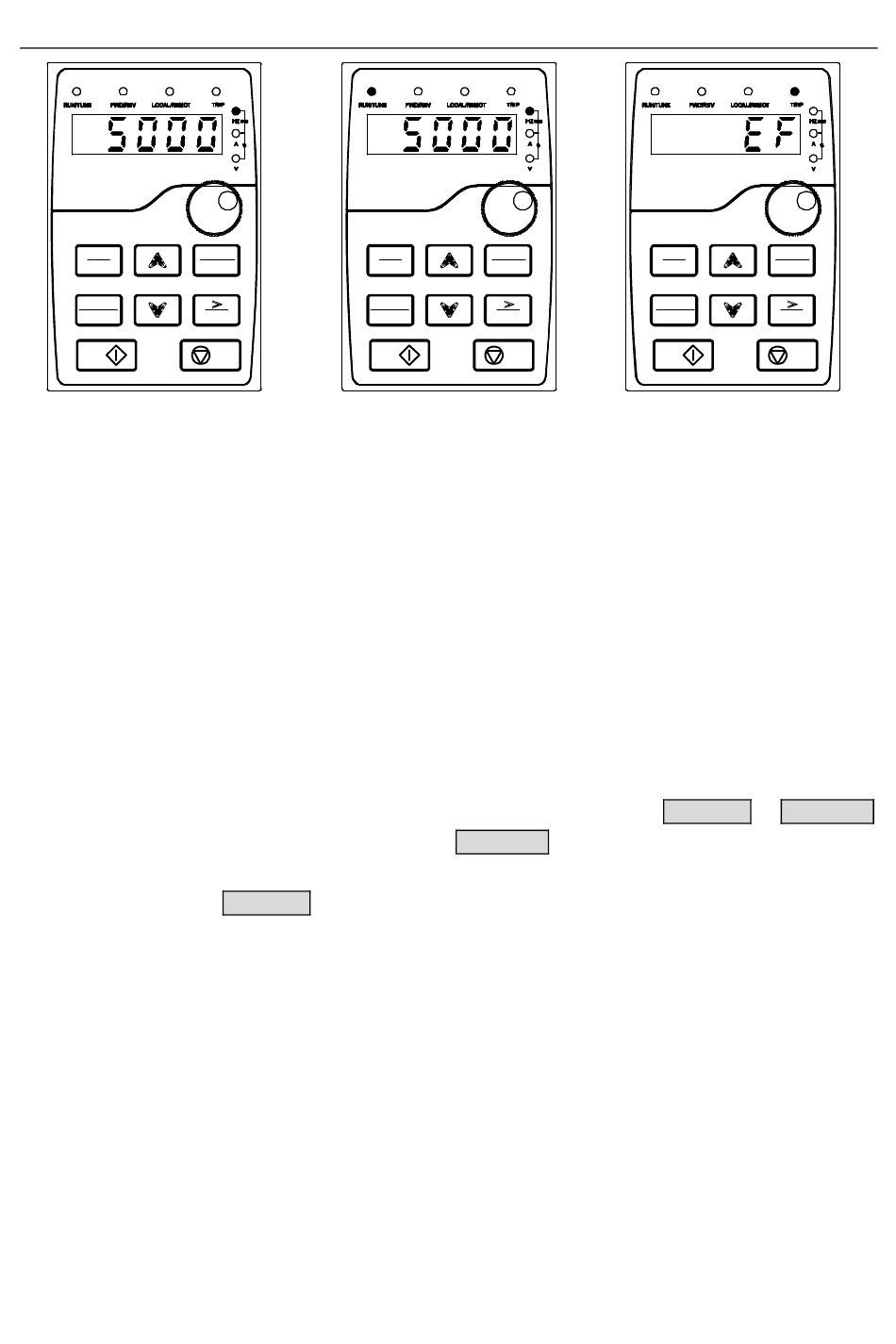

Figure 6-2 Status display
PRG DATA
ESC
ENT
QUICK
JOG SHIFT
STOP
RUN
RST
-132-
Basic operation guidelines
PRG DATA
ESC ENT
QUICK
SHIFT
JOG
RUN
Information displayed in faulty state
STOP
RST
