Goodrive350-19 series VFD for crane
FWD running
REV running
Fault reset
pulse A
pulse B

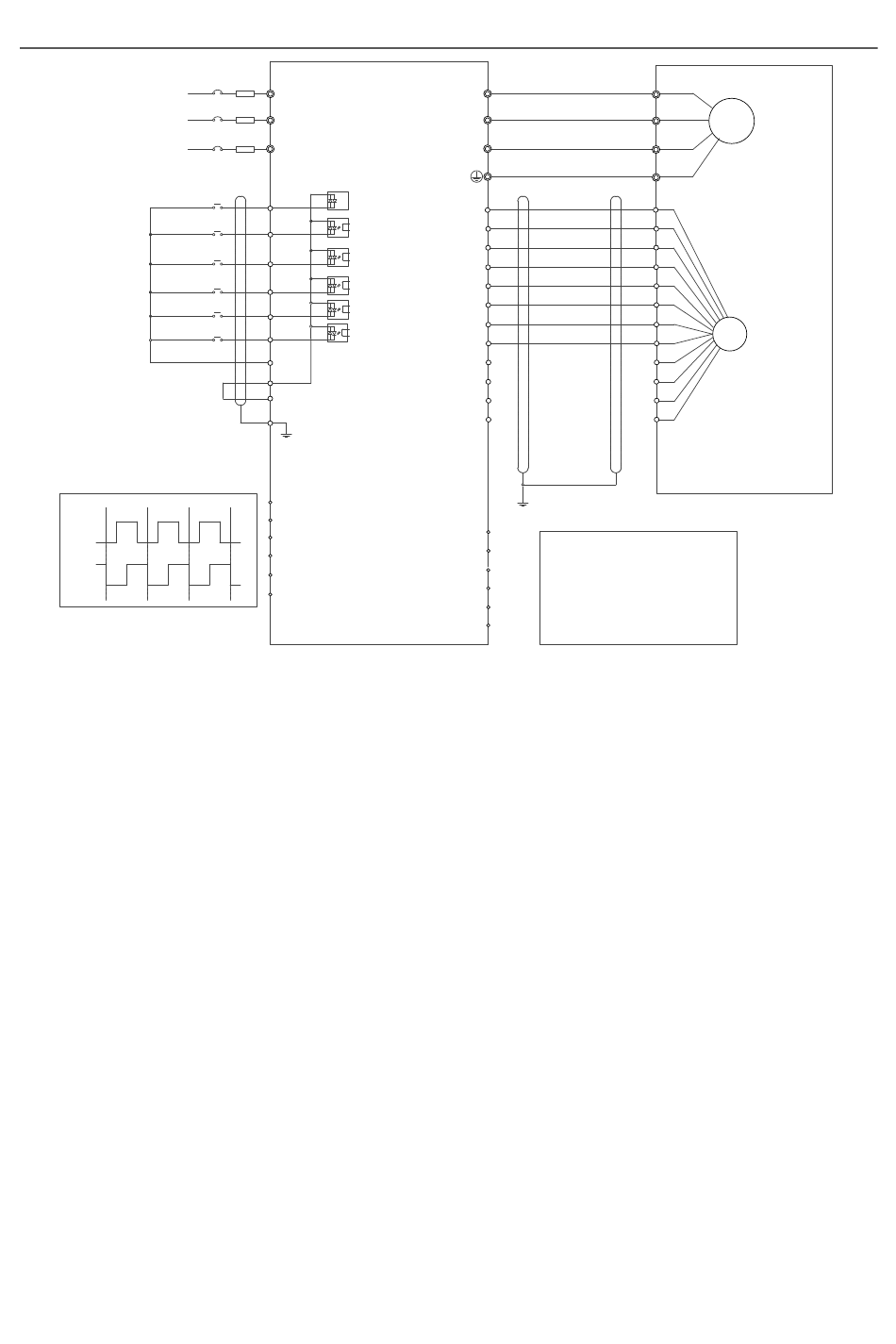

The following figure shows the external wiring of the PG card when it is used in combination with an
encoder with CD signals.
R
S
T
S1
S2
S3
S4
HDIA
HDIB
COM
PW
+24V
PE
AO+
AO-
BO+
BO-
ZO+
ZO-
-456-
U
V
W
PWR
GND
A1+
A1-
B1+
B1-
R1+
R1-
C1
+
C1-
D1
+
D1-
A2+
A2-
B2+
B2-
Upper computer
Z2+
Z2-
Expansion card
U
V
M3~
W
PG
CNC
PLC
