Goodrive350-19 series VFD for crane
5.1 Lifting in open-loop vector control
5.1.1 Wiring
Lifting
Lowering
Enabling brake detection
Fault reset
Brake feedback signal
Multi-step speed reference terminal 1
Multi-step speed reference terminal 2
Multi-step speed reference terminal 3
Note: If the wiring is performed according to Figure 5-1, most VFD parameters need no adjustment. If
the onsite function terminals are inconsistent with the terminals shown in the figure, adjust the input
and output terminal functions according to the actual wiring after selecting this application macro.
5.1.2 Commissioning procedure
1. Check the wiring and ensure the wiring is proper.
2. Set P00.18=1 to restore to default settings.
3. Set motor parameters in P02.
4. Set P00.15=2. The keypad displays "-ΓUN-". Press the RUN key to perform static autotuning.
5. Set P90.00=1 to select the open-loop vector controlled lifting application macro.
5 Commissioning guidelines
R
R
S
S
T
T
S1
S2
S3
S4
COM
PW
+24V
S5
S6
S7
S8
COM
PW
+24V
IO expansion card
EC-IO-502-00

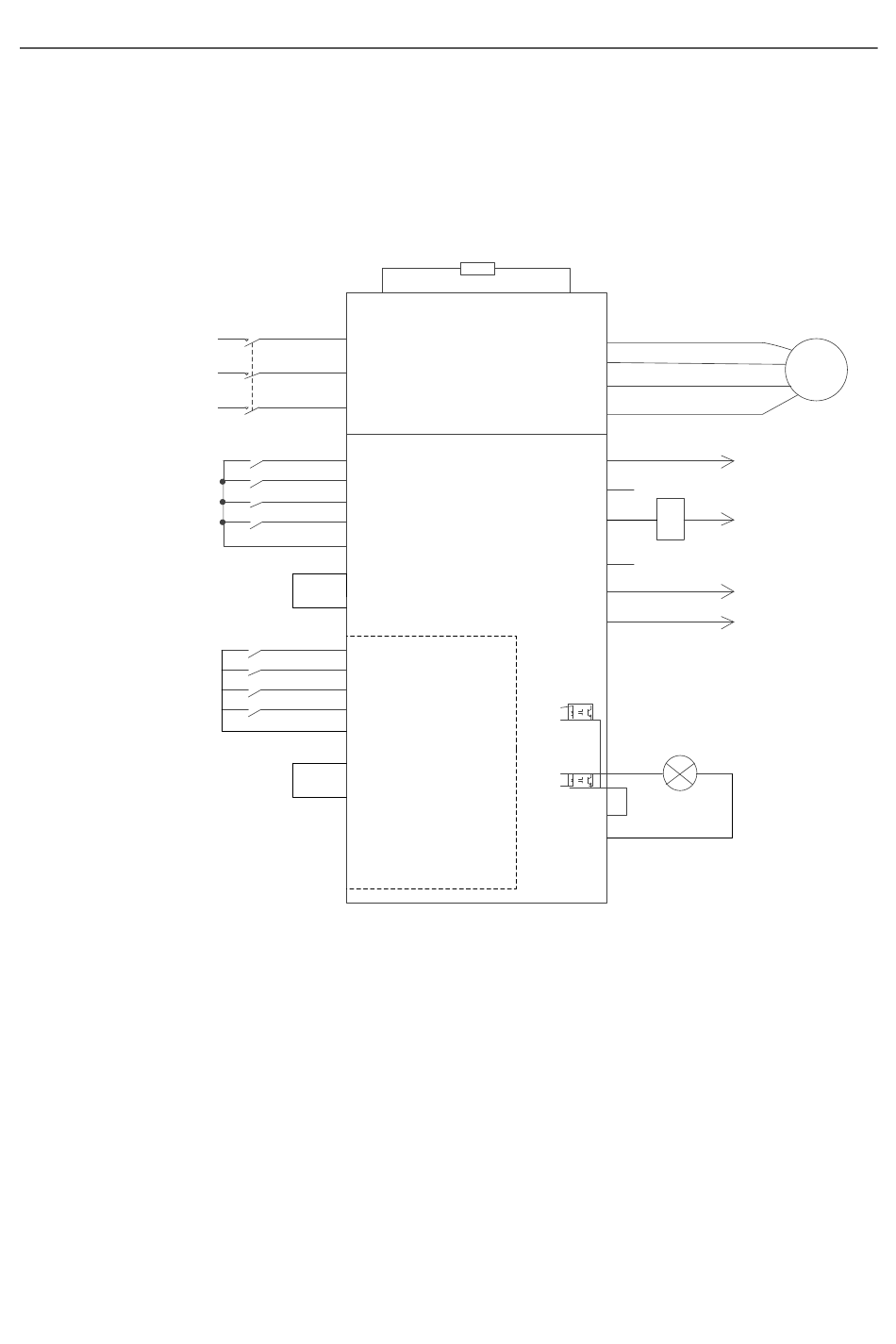

Figure 5-1 Wiring for lifting in open-loop vector control
Braking resistor
(+)
VFD
-39-
Commissioning guidelines
PB
U
V
W
PE
RO1A
RO1B
RO1C
RO2A
RO2B
RO2C
Y1
CME
HDO
CME
COM
+24V
M
3~
Brake
output
VFD fault
output
Brake check
reminding/
Overload
reminding
